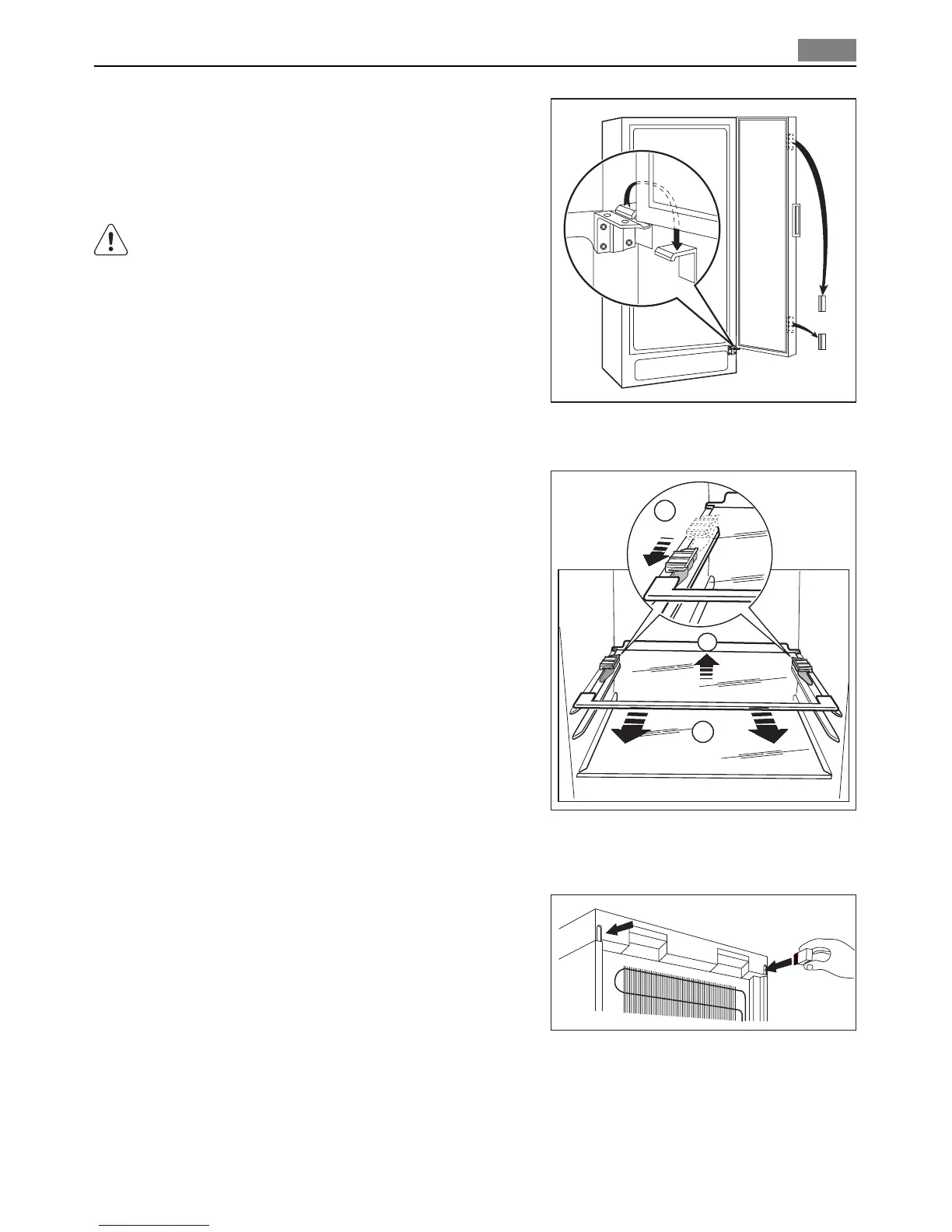

1. Open the door.
2. Remove the transport support from the
door sides.
3. Remove the transport support from the
lower hinge (some models).
Some models are fitted with a silencing pad
under the cabinet. Do not remove this pad.
Removing the shelf holders
Your appliance is equipped with shelf retainers
that make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
1. Move the shelf holders in the direction of the
arrow (A).
2. Raise the shelf from the rear and push it for-
ward until it is freed (B).
3. Remove the retainers (C).
Rear spacers
Install the spacers provided within the accessory bag as shown in the figure.
Install the spacers on the back side of the panel.
3
2
A
B
C
Installation
17
