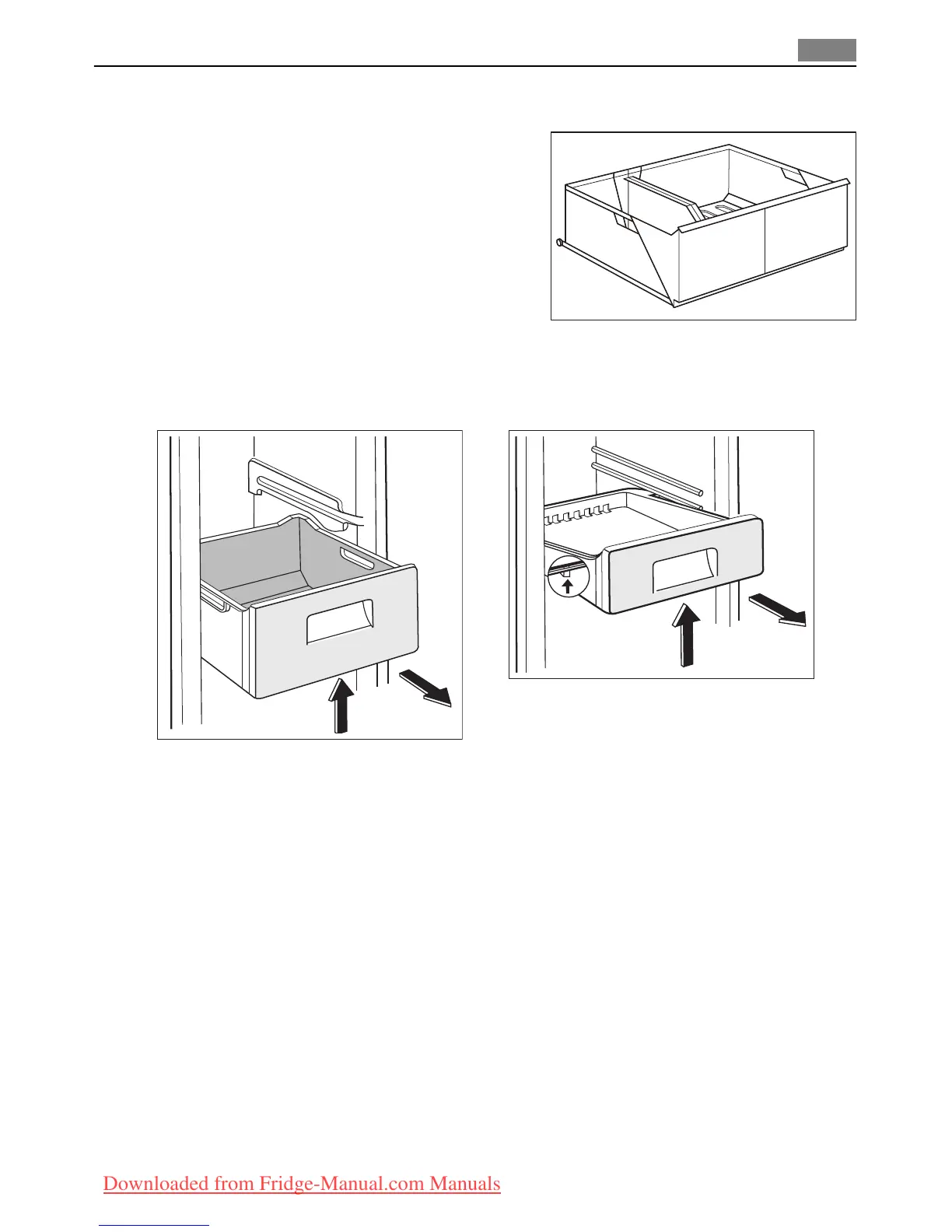

MAXIBOX drawer
The drawer is suitable for storing fruit and vege-
tables.
There is a separator inside the drawer that can be
placed in different positions to allow for the sub-
division best suited to personal needs.
There is a grille (if foreseen) on the bottom of the
drawer to separate the fruit and vegetables from
any humidity that may form on the bottom sur-
face.
All parts inside the drawer can be removed for
cleaning purposes
Removal of freezing baskets from the freezer
1
2
2
1
The freezing baskets have a limit stop to prevent their accidental removal or falling out.
At the time of its removal from the freezer, pull the basket towards yourself and, upon
reaching the end point, remove the basket by tilting its front upwards.
At the time of putting it back, slightly lift the front of the basket to insert it into the
freezer. Once you are over the end points, push the baskets back in their position.
HELPFUL HINTS AND TIPS
Normal Operating Sounds
• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped
through the coils or tubing. This is correct.
• When the compressor is on, the refrigerant is being pumped around and you will hear a
whirring sound and a pulsating noise from the compressor. This is correct.
• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous
physical phenomenon. This is correct.
Helpful hints and tips 41
