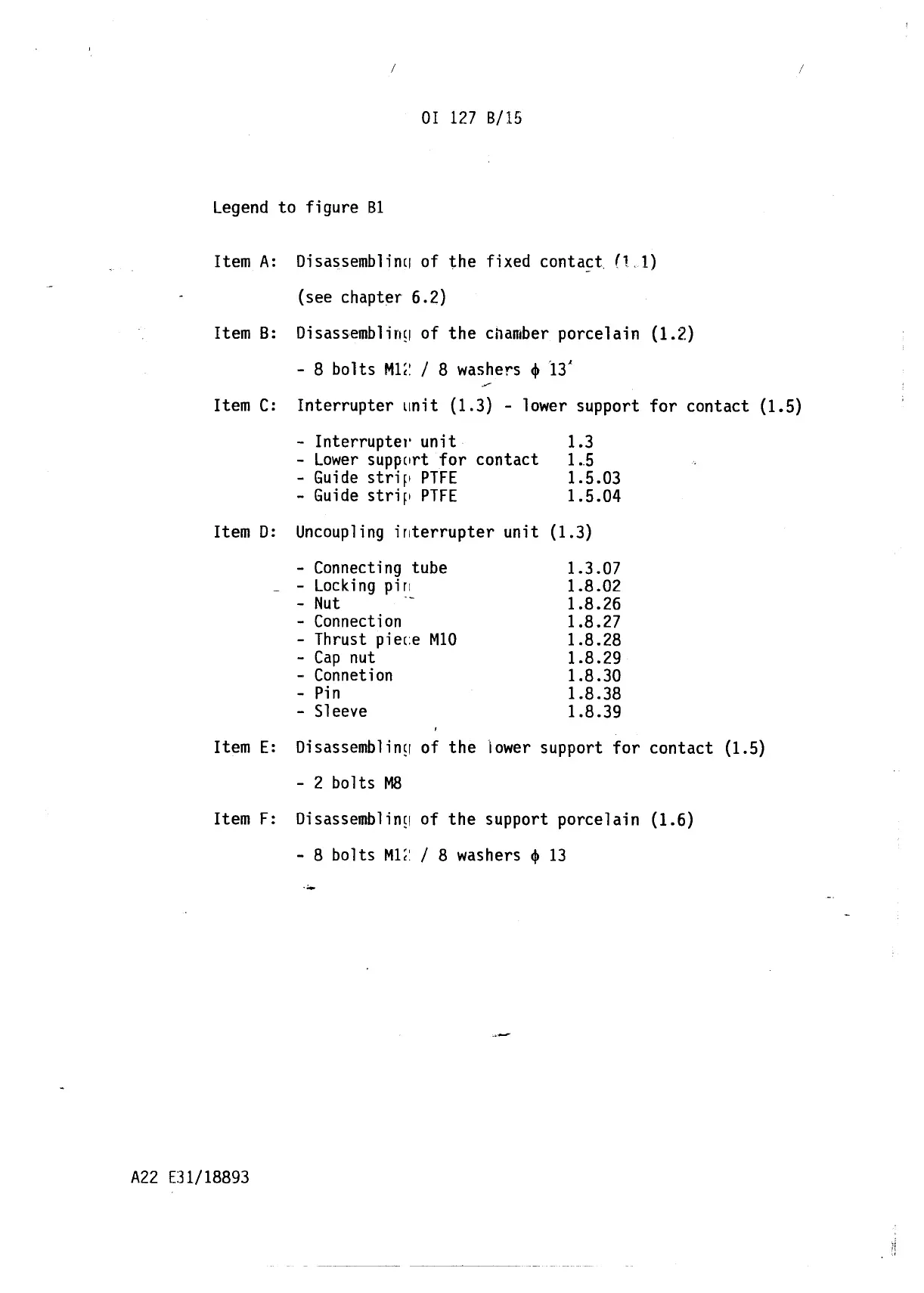

Item A: Disassemblinq of the fixed contact (Ll)
(see chapter 6.2)
Item B: Disassemblinp of the chamber porcelain (1.2)
- 8 bolts Ml;~ / 8 washers cj) 13'
~
- Interruptel' unit
- Lower support for contact
- Guide strip PTFE
- Guide strip PTFE
1.3
1..5
1.5.03
1.5.04
- Connecting tube
- Locking pirl
- Nut
- Connection
- Thrust pi ec:e MlO
- Cap nut
- Cannetion
- Pi n
- Sleeve
1.3.07
1.8.02
1.8.26
1.8.27
1.8.28
1.8.29
1.8.30
1.8.38
1.8.39
Item F: Disassemblin~1 of the support porcelain (1.6)
- 8 bolts Ml;~ / 8 washers cj) 13
