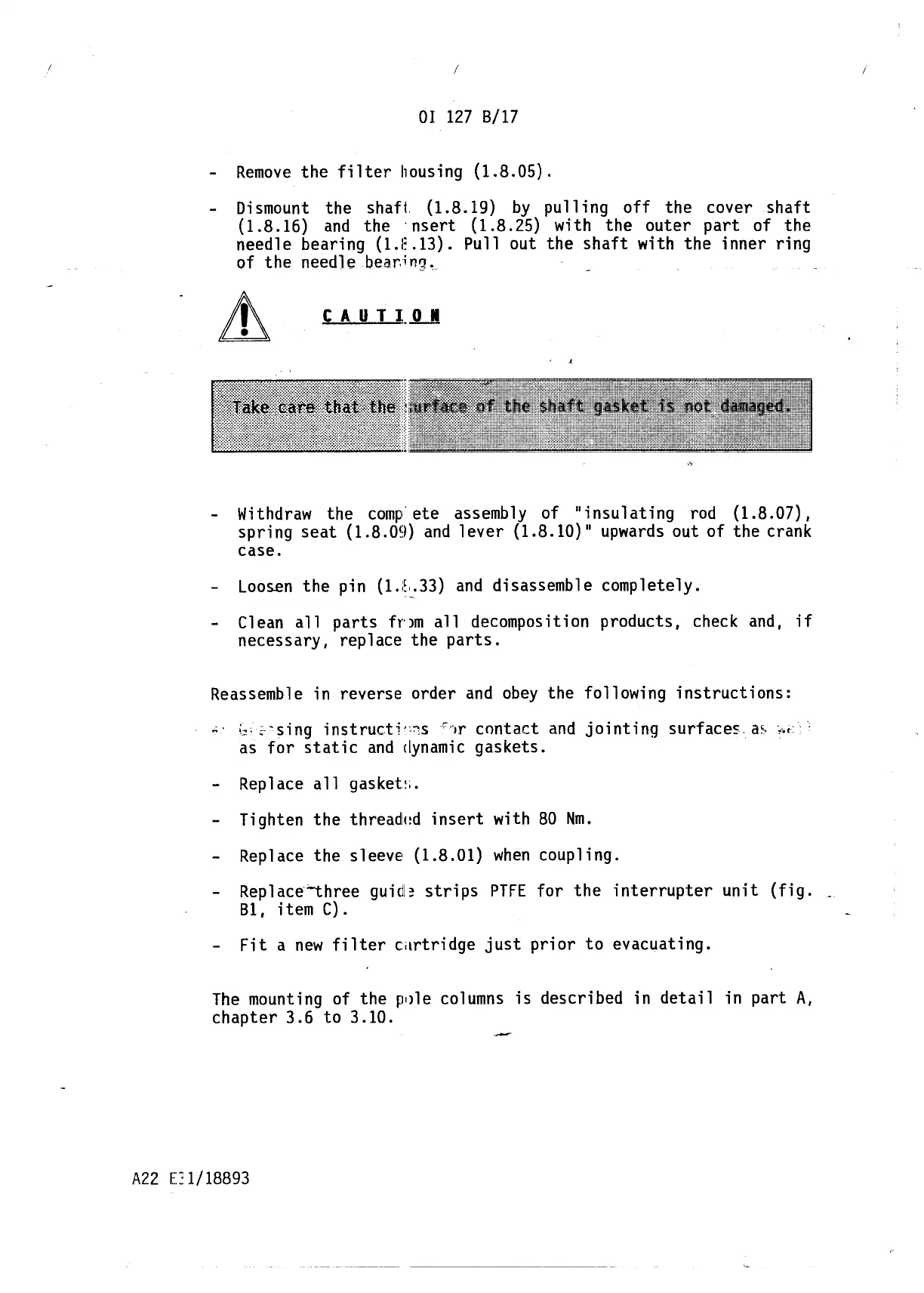

- Remove the filter housing
(1.8.05).
- Dismount the shaH
(1.8.19)
by pulling off the cover shaft
(1.8.16)
and the "nsert
(1.8.25)
with the outer part of the
needle bearing
(1.E.13).
Pullout the shaft with the inner ring
of the needle.bea~ing~
- Withdraw the camp"ete assembly of "insulating rod
(1.8.07),
spring seat
(1.8.09)
and lever
(1.8.10)"
upwards out of the crank
case.
- Loosen the pin
(1.:~,_.33)
and disassemble completely.
- Clean all parts fnm all decomposition products, check and, if
necessary, replace the parts.
~ b~
~~~ing instructi~:~s
_c~_.~}.r
contact and jointing surfaces.a~'r
"f,;t<
as for static and dynamic gaskets.
- Replace a11 gasket~,.
- Tighten the threadll!d insert with 80 Nm.
- Replace the sleeve
(1.8.01)
when coupling.
- Replace"'-three guicll~ strips PTFE for the interrupter unit (fig._
Bl, item C).
The mounting of the pille columns is described in detail in part A,
chapter
3.6
to
3.10.
