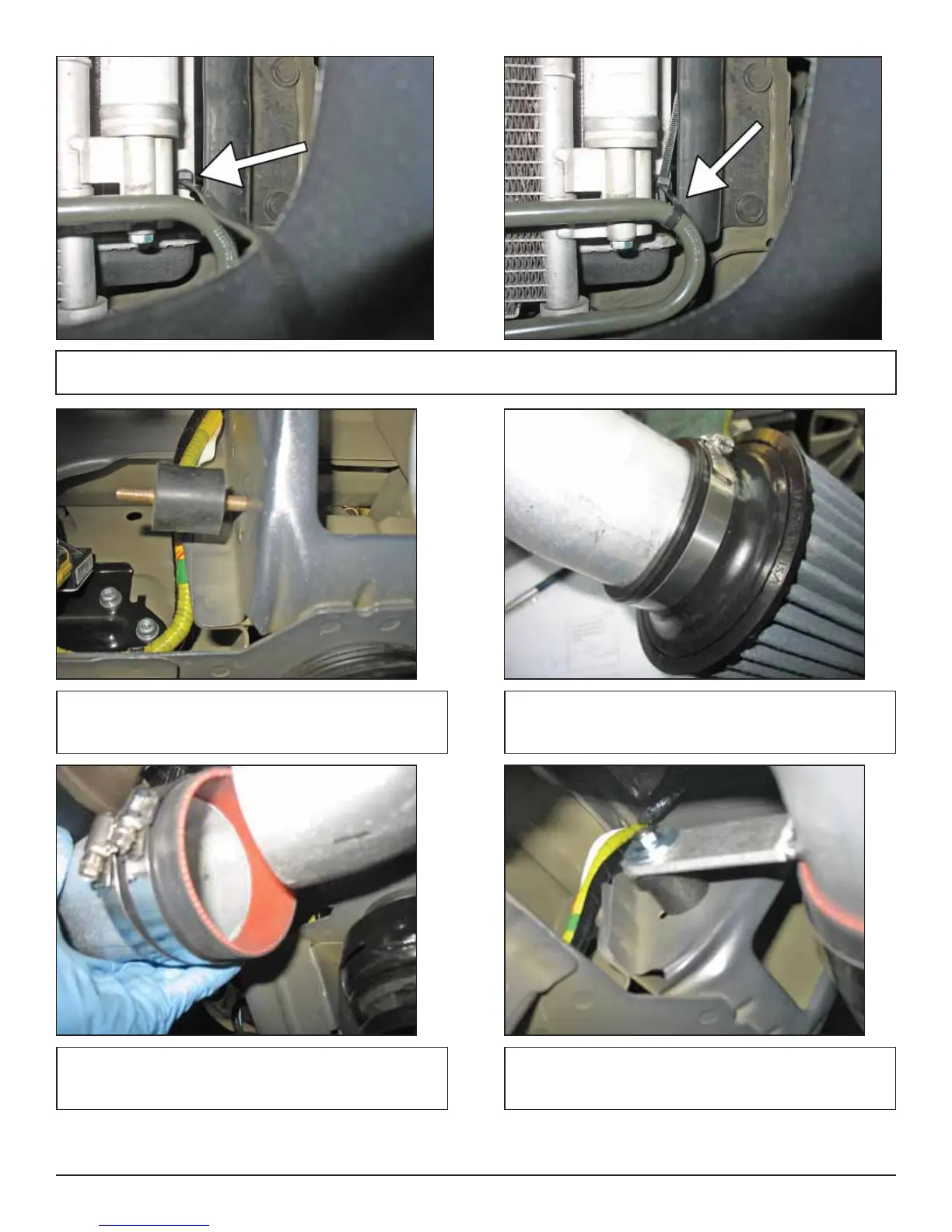

l. Insert the tab of the zip-tie (1-127) into the hole on the radiator support. Wrap the zip-tie around the condenser coil
and tighten, so the coil is pulled inward approximately 10mm.
m. Insert the other rubber mount (1228599) into the
indicated area.
n. Install the air filter element onto the non-bracket
side of the lower inlet pipe (2-6832). Secure in place
with the provided hose clamp (9456).
o. Connect the lower inlet pipe to the upper inlet pipe
with the straight coupler (5-326) and a (9452) hose
clamp.
p. Slide the lower inlet pipe’s bracket onto the rubber
mount that was installed in step 3m. Secure the rubber
mount with the provided 6mm fender washer and nut.
