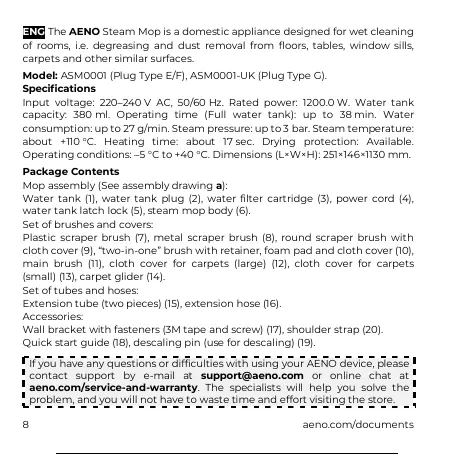

ENG The AENO Steam Mop is a domestic appliance designed for wet cleaning
of rooms, i.e. degreasing and dust removal from floors, tables, window sills,
carpets and other similar surfaces.
Model: ASM0001 (Plug Type E/F), ASM0001-UK (Plug Type G).
Specifications
Input voltage: 220–240 V AC, 50/60 Hz. Rated power: 1200.0 W. Water tank
capacity: 380 ml. Operating time (Full water tank): up to 38 min. Water
consumption: up to 27 g/min. Steam pressure: up to 3 bar. Steam temperature:
about +110 °C. Heating time: about 17 sec. Drying protection: Available.
Operating conditions: –5 °С to +40 °С. Dimensions (L×W×H): 251×146×1130 mm.
Package Contents
Mop assembly (See assembly drawing a):
Water tank (1), water tank plug (2), water filter cartridge (3), power cord (4),
water tank latch lock (5), steam mop body (6).
Set of brushes and covers:
Plastic scraper brush (7), metal scraper brush (8), round scraper brush with
cloth cover (9), “two-in-one” brush with retainer, foam pad and cloth cover (10),
main brush (11), cloth cover for carpets (large) (12), cloth cover for carpets
(small) (13), carpet glider (14).
Set of tubes and hoses:
Extension tube (two pieces) (15), extension hose (16).
Accessories:
Wall bracket with fasteners (3M tape and screw) (17), shoulder strap (20).
Quick start guide (18), descaling pin (use for descaling) (19).
If you have any questions or difficulties with using your AENO device, please
contact support by e-mail at support@aeno.com or online chat at
aeno.com/service-and-warranty. The specialists will help you solve the
problem, and you will not have to waste time and effort visiting the store.
