AEORC RX24x Series Mini Micro Receiver (2CH with Linear Servo)
Instruction Manual
Thank you for choosing AEORC ultra-micro receiver, this receiver integrates 5A/1S brushed ESC and
with 2pcs linear servos, please read this document carefully before use.
For RX24x series, now we have below 6 versions for choice, please understand the corresponding basic
functions according to the product you purchased.
Version selection
Basic Data

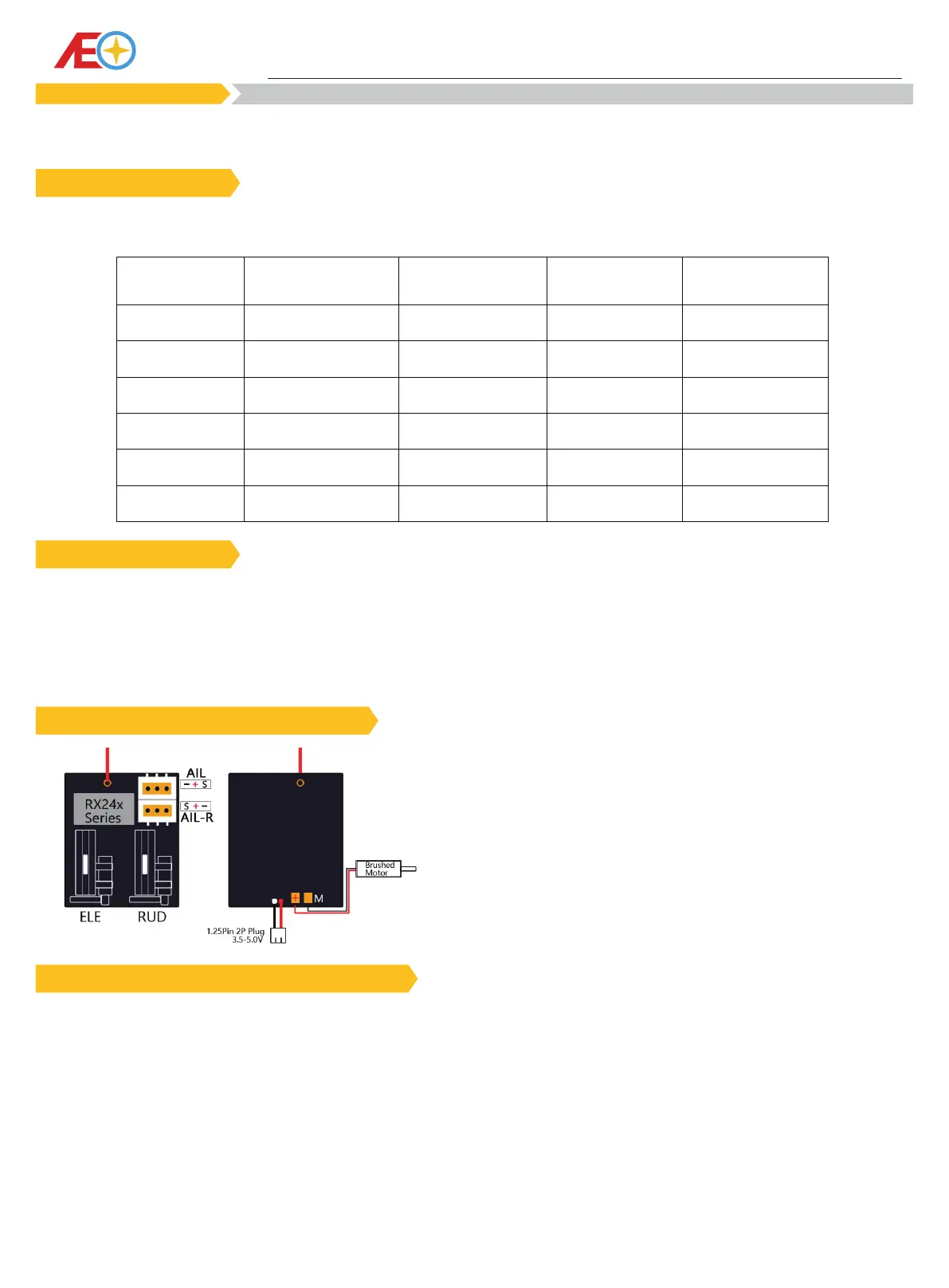

Receiver interface definition
Combine receiver and transmitter
1.Turn on the transmitter and power the receiver. At this time, the receiver is in the state of confirming
the transmitter signal, and the LED light flashes slowly.
2. If the transmitter signal cannot be confirmed within 15 seconds, then enter the automatic frequency
matching mode, the receiver starts to search for the signal and perform frequency matching, and the
LED light flashes quickly.
3.If the frequency matching is successful, according to different types of remote transmitters , there will
be a variety of different LED light feedbacks, including but not limited to the following three LED light
flashing methods. Please confirm according to the actual remote control whether the frequency
matching is successful or not.
Protocol 5A/1S Brushed ESC 2CH Linear Servo TLEME Function
RX242 S-FHSS √ √
RX244 DSMX/2 √ √
RX245 FRSKY-D16 √ √
RX247 FRSKY-D8 √ √
RX244-T DSMX/2 √ √ √
RX245-T FRSKY-D16 √ √ √
Size：25*23*8mm
Weight：4g
Working voltage：3.5-5.0V
Servo plug：1.00Pin 3P JST
Power plug：1.25Pin 2P JST(51005)
