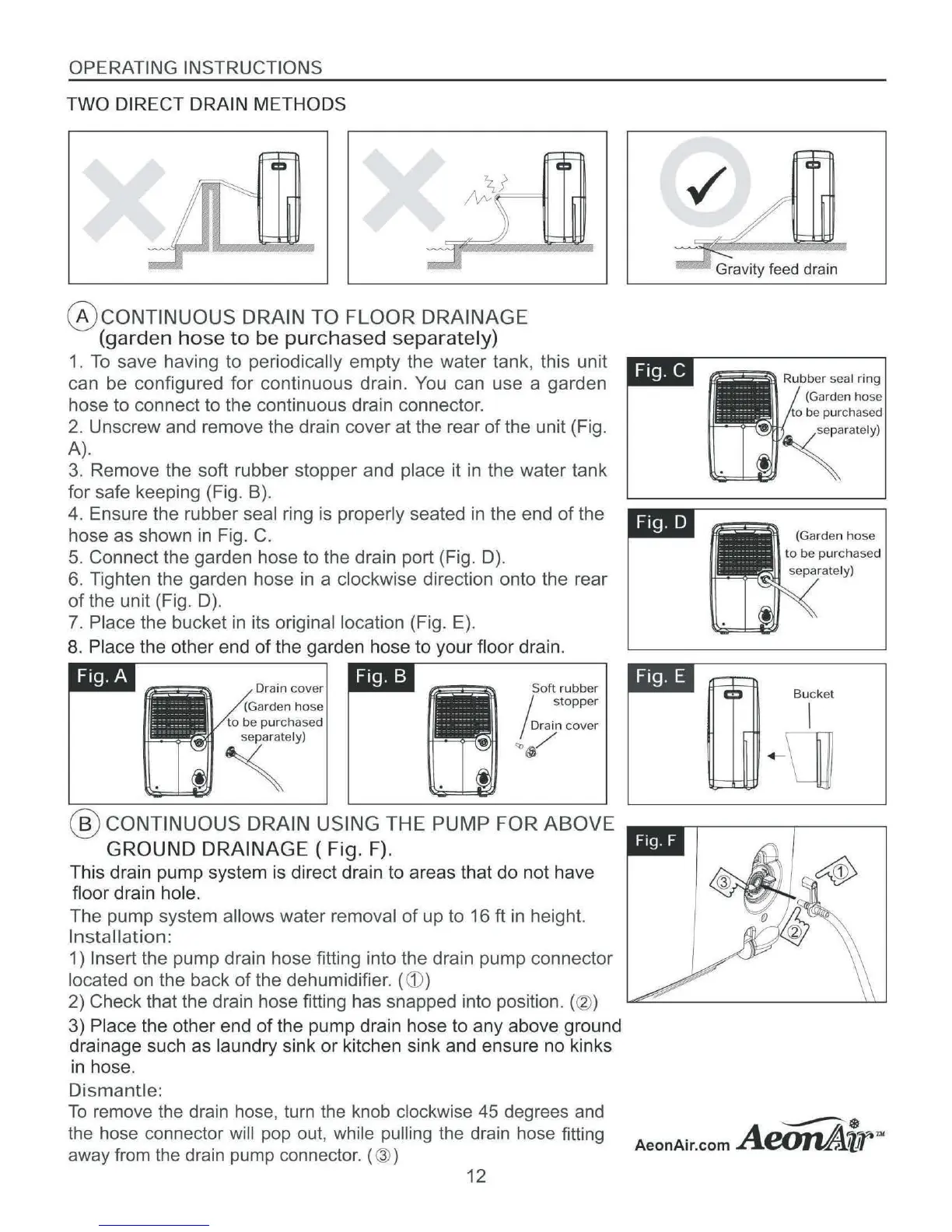

OPERATING INSTRUCTIONS
TWO DIRECT DRAIN
METHODS
@CONTINUOUS
DRAIN TO FLOOR DRAINAGE
(gard
en
hose
to
be
purchas
ed
separately)
1.
To
save having to periodically empty the water tank, this unit
can be configured for continuous drain. You can use a garden
hose to connect to the continuous drain connector.
2.
Unscrew and remove the drain cover at the rear
of
the unit (Fig.
A)
.
3.
Remove the soft rubber stopper and place it
in
the water tank
for safe keeping (Fig. B).
4. Ensure the rubber
seal ring is properly seated
in
the end
of
the
hose
as
shown
in
Fig
. C.
5.
Connect the garden hose to the drain port (Fig. D).
6.
Tighten the garden hose
in
a clockwise direction onto the rear
of
the unit (Fig. D).
7.
Place the bucket in its original location (Fig. E).
8.
Place the other end of the garden hose to your floor drain.
Drain
cover
(Garden
hose
to
be pu
rchased
,,ly)
Soft
rubb
er
j s
topp
er
j Drain
cove
r
""
~/
@C
ONTINUO
US
DRAIN USING THE PUMP FOR ABOVE
GROUND DRAINAGE ( Fig.
F)
.
This drain pump system
is
direct drain to areas that do not have
floor drain hole.
The pump system allows water removal
of
up to 16 ft
in
height.
Installation:
1) Insert the pump drain hose fitting into the drain pump connector
located
on
the back
of
the dehumidifier. (
CD
)
2) Check that the drain hose fitting has snapped into position. (® )
3) Place the other end
of
the pump drain hose to any above ground
drainage such as
laundry sink
or
kitchen sink and ensure no kinks
in
hose.
Dismantle
:
To
remove the drain hose, turn the knob clockwise 45 degrees
and
the hose connector will pop out, while pulling the drain hose fitting
away from the drain pump connector. (
@)
12
(Garden h
os
e
-
~
c ~
Bucke
t
I
~
-
\]
