INSTALLAZIONE
•
INSTALLATION

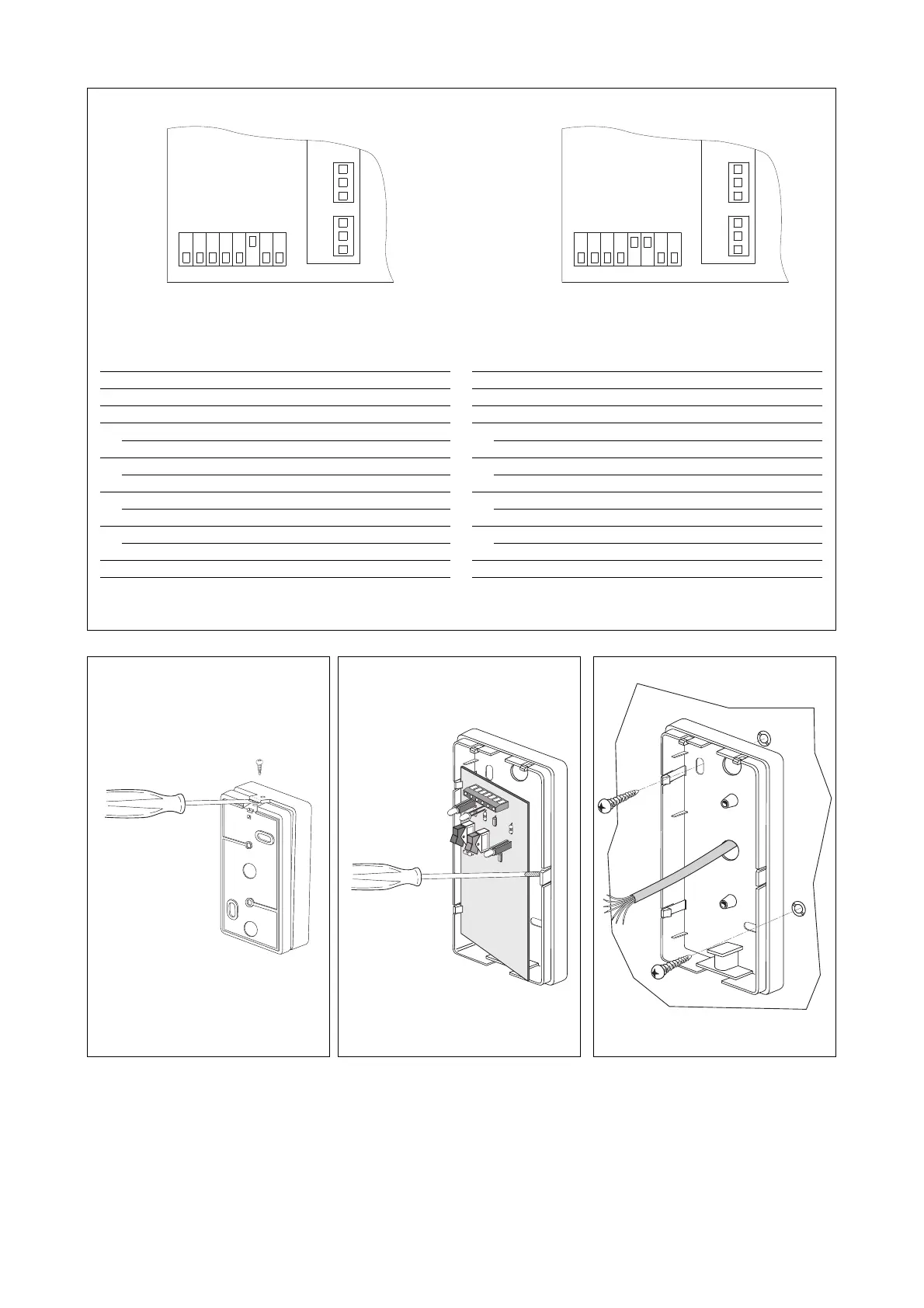

Fig. 4Fig. 2 Fig. 3
1
DIP SWITCH
8
M15M16
On
Off
1
DIP SWITCH
8
M15M16
On
Off
Solo Freddo Pompa di calore
Cooling only Heat pump
Fig. 1
Dip Switch:
1 OFF Uso interno
2 OFF Uso interno
3 OFF Uso interno
4 OFF Ventilatore assiale
ON Ventilatore centrifugo
5 OFF Solo freddo
ON Pompa di calore
6 OFF Condensazione in acqua
ON Condensazione in aria
7 OFF Acqua senza glicole
ON Acqua con glicole
8 OFF Uso interno
Dip Switch:
1 OFF Not used
2 OFF Not used
3 OFF Not used
4 OFF Axial fan
ON Centrifugal fan
5 OFF Cooling only
ON Heat pump
6 OFF Water condensation
ON Air condensation
7 OFF Water without glycol
ON Water with glycol
8 OFF Not used
