AERMEC AN 8 - Spazi Tecnici Minimi • Minimum Technical Space

36
CARATTERISTICHE
•
FEATURES

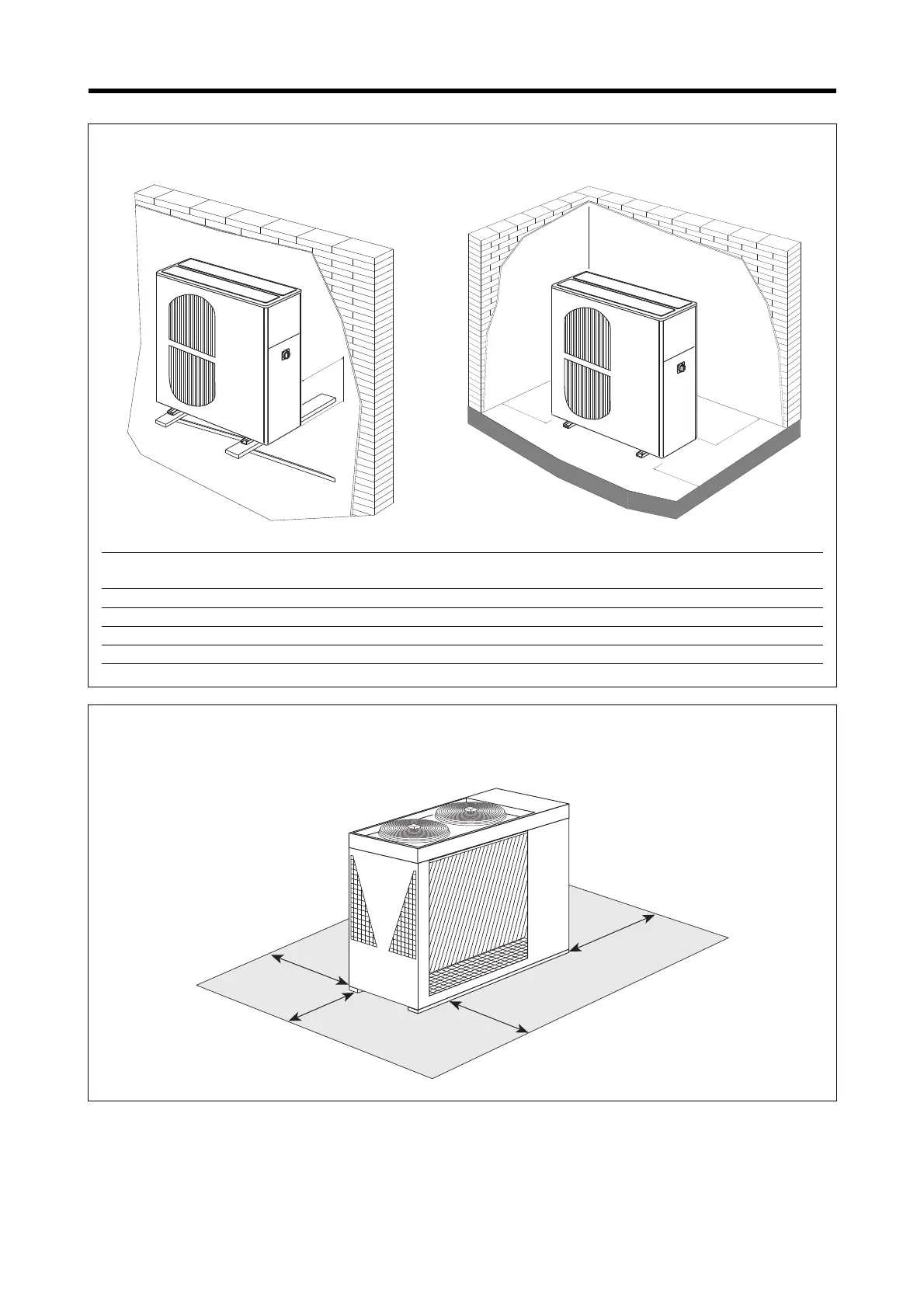

SPAZI TECNICI MINIMI • MINIMUM TECHNICAL SPACE (mm)
Mod.
AN 21 AN 3 M / T AN 4 - 47 AN 6 - 67 AN 8 - 87 AN 9 - 97
AN-H 21 AN-H 3 M / T AN-H 4 AN-H 6 AN-H 8 AN-H 9
A (mm) 100 150 200 200 200 200
B (mm) 150 250 300 300 300 300
C (mm) 500 500 500 500 500 500
D (mm) 200 200 300 300 300 300
D
B
C
A
Mod. AN 21 - 3 - 4 - 47 - 6 - 67 - 8 - 87 - 9 - 97 - AN-H 21 - 3 - 4 - 6 - 8 - 9
750
750
750
1300
Mod. AN 11 - 117- 16 - 167 - AN-H 11 - 16
