AERMEC FCX ACT - Configuration and Settings; Dip-Switch Settings

17
English
ON
OFF
Dip 1 (Default OFF)
Shut-off valve:
-if absent, set OFF
-if present, set ON
Dip 2 (Default OFF)
Position of the water temperature probe:
-with probe downstream of the three- or two-way
valve, set OFF;
-with probe upstream of the valve or the three-way
valve, set ON;
Dip 3 (Default OFF)
Valve operation:
-for Optimised Valve, set OFF
-for Normal Valve, set ON
Dip 4 (Default OFF)
Heat Probe correction to compensate the metallic
structure overheating:
-optimised correction, set OFF
-fixed correction, set ON
Dip 5 (Default OFF)
Heat mode activation according to water
temperature:
-for Normal Heat mode (39°C), set OFF
-for Reduced Heat mode (35°C), set ON
Dip 6 (Default OFF)
Cool mode activation according to water
temperature:
-for Normal Cool mode (17°C), set OFF
-for Reduced Cool mode (22°C), set ON

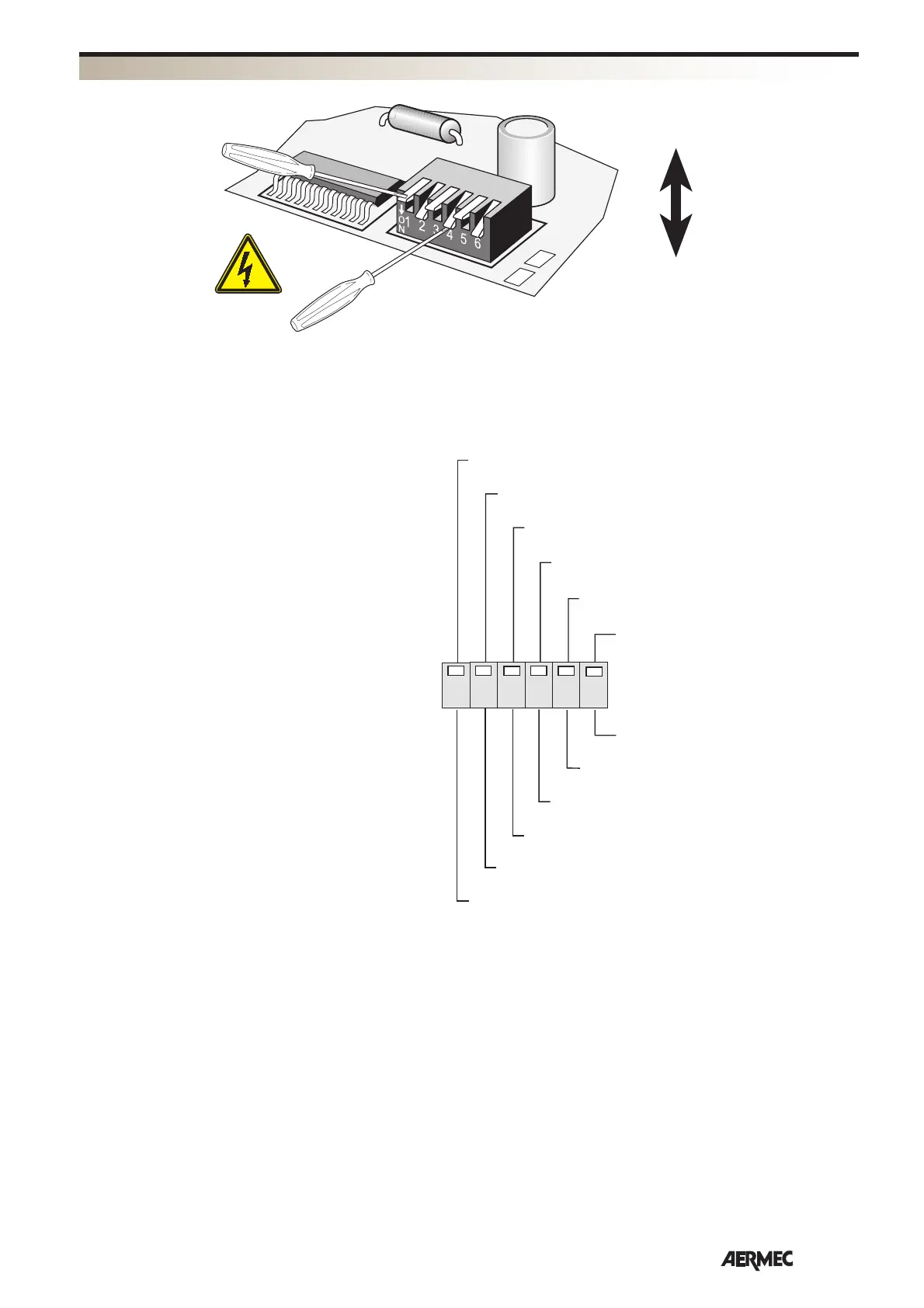

FCX-ACT CONFIGURATION
*
*
*
*
*
*
*
ON
OFF
1
23
4
5
6
=
No shut-off valve
Water Probe on the exchanger or two-way valve
Optimised valve operation
Optimised Probe correction
Normal Heat Activation
Normal Cool Activation
Reduced Cool Activation
Reduced Heat Activation
Fixed Probe correction
Normal valve operation
with probe upstream of the valve or the three-way valve
With shut-off valve
Factory settings
To be done in the installation phase, only by expert personnel.
By turning the Dip-Switches inside the thermostat on or off, we
get the following functions:
DIP-SWITCH SETTINGS
