AERMEC GLL10N - Dip-Switch Setting and Configuration; Dip-Switch Functionality; Dip-Switch Setting Examples

35
English
AGLL10/20NFJ 07/11_4528571_00
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
SW
SW
SW
ON
ON
OFF
1 2 3 4 5 6 7 8
SW
ON
ON
ON
ON
OFF
1 2 3 4 5 6 7 8
SW
ON
ON
OFF
1 2 3 4 5 6 7 8
SW
ON
SOME EXAMPLES:
VMF_E18 (default)
* Centralised control enabled
* Water
p
FCXI 50 / 80
FCXI 20 / 30 / 40
* With shutoff valve

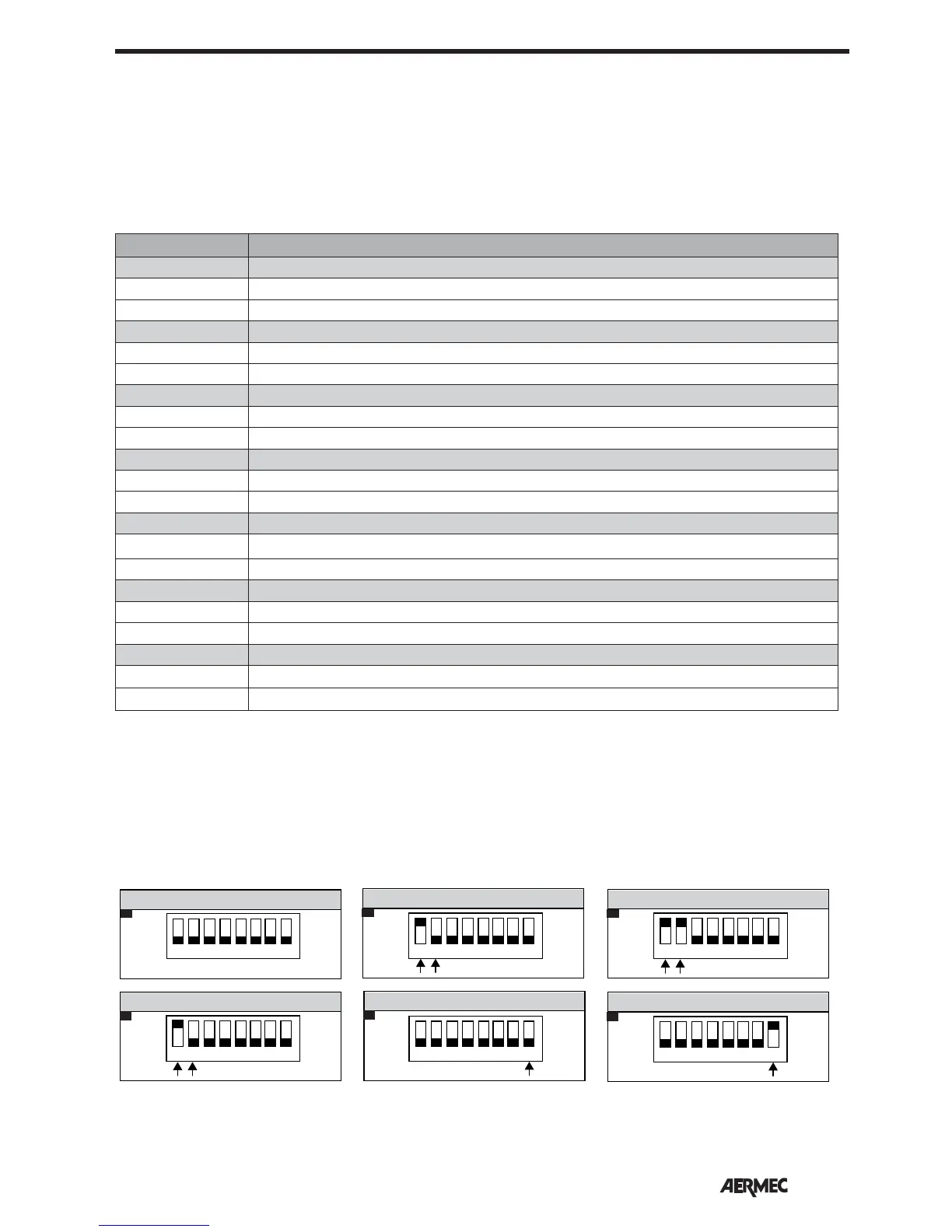

DIP-SWITCH SETTING
Turn off the power to the unit. This
operation should be carried out in the
installation phase, by suitably trained
and qualified personnel only.
The dip-switches are on the electronic
board.
**Warning: if the thermostats are
inserted in systems with Centralised
Control or Supervisor (e.g. VMF-E5),
it is necessary to set: Dip1=ON and
Dip2=OFF. The setting takes priority
over the presence of the valve and the
position of the probe.
Position Functions
Dip 1 (Default OFF) Check water valve / * Thermostat in centralised network (See table):
OFF No shut-off valve
ON Shutoff valve present / * Thermostat in centralised network:
Dip 2 (Default OFF) Position water temperature probe / * Thermostat in centralised network (See table):
OFF Water temperature probe downstream from shutoff valve / *Thermostat in centralised network
ON Water temperature probe upstream from shutoff valve
Dip 3 (Default OFF) Ventilation control:
OFF Thermostat-controlled ventilation
ON Continuous ventilation
Dip 4 (Default OFF) Ventilation enabling:
OFF Enabling normal band
ON Enabling reduced band
Dip 5 (Default OFF) Machine with two or four pipes
OFF
2-pipe fan coils
ON 4-pipe fan coils
Dip 6 (Default OFF) the presence of the accessory
OFF Resistance to integration is not present
ON Presence of resistance to integration
Dip 7 (Default OFF) Dead band
OFF Dead band 5° C
ON Dead band 2° C
They can be used to obtain the following functions:
