AGLL10/20NFJ 07/11_4528571_00
• Maximum number of MASTER fan coils = 64
• Maximum number of SLAVE fan coils that can be connected to each MASTER = 5

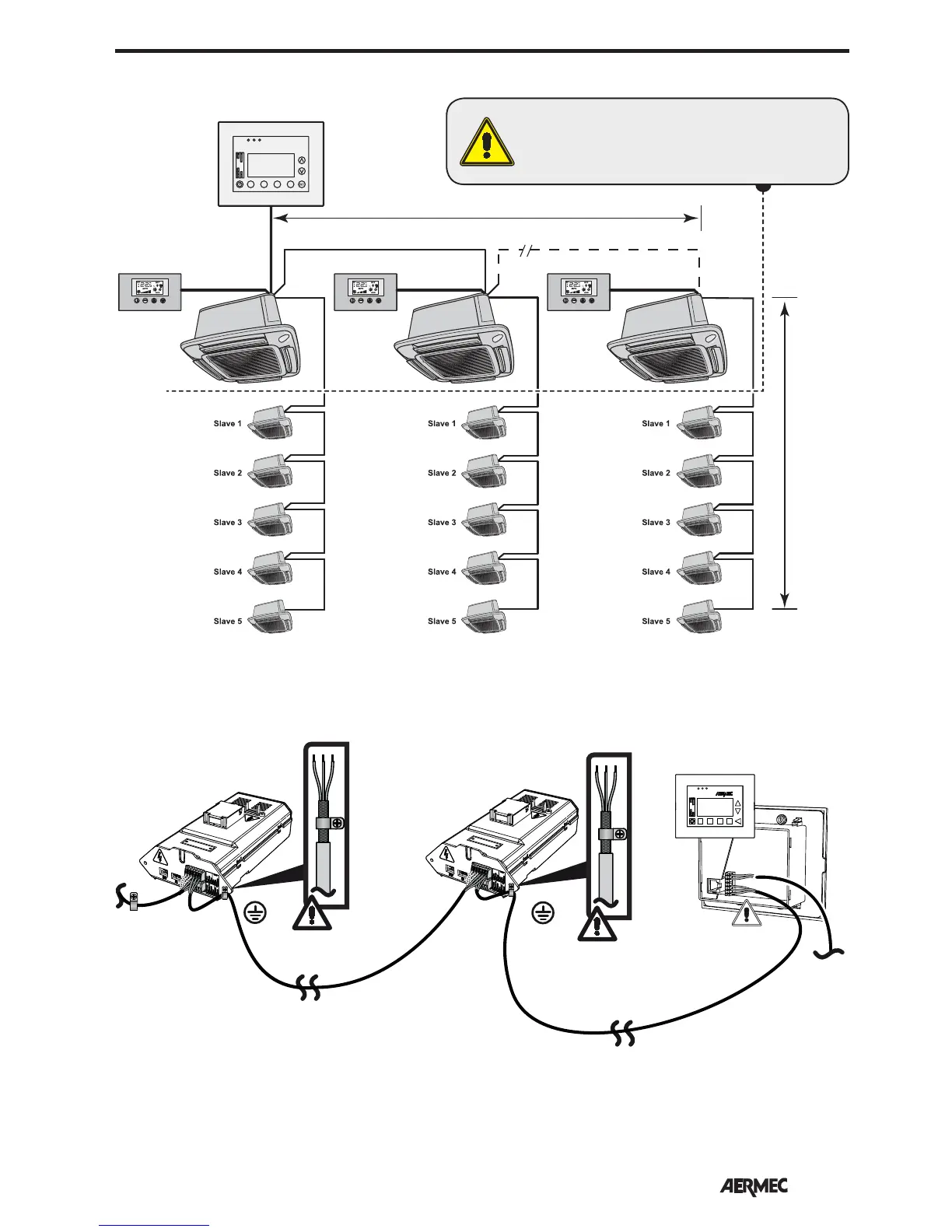

VMF-E5B / E5N SYSTEM'S MAIN SUPERVISION INTERFACE
CONNECTION TO THE RS485 NETWORK
ACCESSORIES VMF SYSTEM SUPERVISION
MASTER 1
FCLI+GLLI_N
RS485
TTL TTL TTL
RS485
RS485
VMF-E5B
VMF-E5N
MASTER 2
FCLI+GLLI_N
MASTER 64
FCLI+GLLI_N
VMF-E4
VMF-E4D
TTL MAX 30m
VMF-E4 / VMF-E4D
RS485 MAX 1000m
VMF-E4 / VMF-E4D
WARNING: the VMF-E5 panel allows the management
of the individual masters; the slave units connected
to each master cannot be individually managed from
the VMF-E5 panel, but they acquire the settings of the
master to which they are connected.
22AWG-3
VMF-E5
GLLI_N
22AWG-3
22AWG-3
22AWG-3
VMF-E5
12Vdc
24Vac
