AERMEC NXW 0600 User Manual

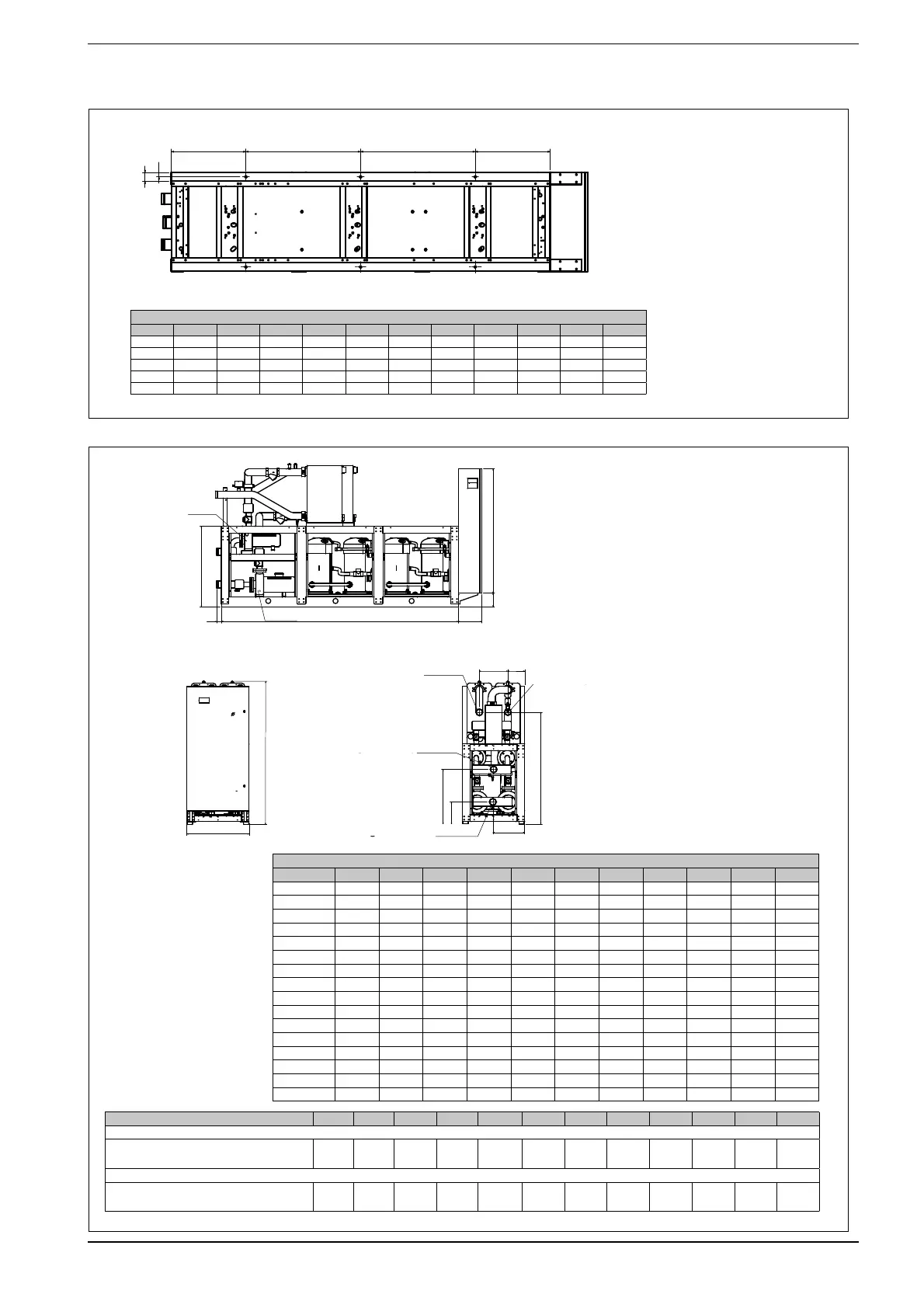

NXW FROM 0500 TO 1400 VERSION WITH PUMP
A
D
E
B
B
A
Uscita evaporatore
Uscita condensatore
Ingresso condensatore
Ingresso evaporatore
A
O
N
I
P
Q
L
H
E
C
G
F
75
B
Pompe condensatore
Pompe evaporatore
POSITION
Model 0500 0550 0600 0650 0700 0750 0800 0900 1000 1250 1400
A 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600
B 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035 1035
C 2644 2644 2644 2644 2644 2644 3044 3044 3044 3044 3044
D 382 382 382 382 382 382 374 400 - - -
E 410 410 410 410 410 410 422 425 410 410 410
F 800 800 800 800 800 800 800 800 800 800 800
G 369 369 369 369 369 369 - 1850 1850 1850 1850
H 3174 3174 3174 3174 3174 3174 1374 1374 1440 1440 1440
I 343 343 343 343 343 343 343 357 367 367 367
L 225 225 225 225 225 225 225 225 216 216 216
M 1494 1494 1494 1494 1494 1494 1494 1494 - - -
N 300 300 300 300 300 300 300 300 300 300 300
O 175 175 175 175 175 175 175 175 175 175 175
P 838 838 838 838 838 838 858 858 706 706 706
Q 264 264 264 264 264 264 260 260 288 288 288
O ------175----
AVX
Model 0500 0550 0600 0650 0700 0750 0800 0900 1000 1250 1400
A 390 390 390 390 390 390 600 600 600 600 600
B 932 932 932 932 932 932 922 922 922 922 922
C 390 390 390 390 390 390 600 600 600 600 600
D 3535353535353535353535
E 7070707070707070707070
Model U.M. 0500 0550 0600 0650 0700 0750 0800 0900 1000 1250 1400
EVAPORATOR (PLATES)
Hydraulic connection
Victaulic in/out
Ø 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 3" 3" 3"
CONDENSER (PLATES)
Hydraulic connection
Victaulic in/out
Ø 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 2"1/2 3" 3" 3"
INLET EVAPORATOR
INLET CONDENSER
OUTLET CONDENSER
OUTLET EVAPORATOR
37
INXWPY. 1004. 4438805_00
