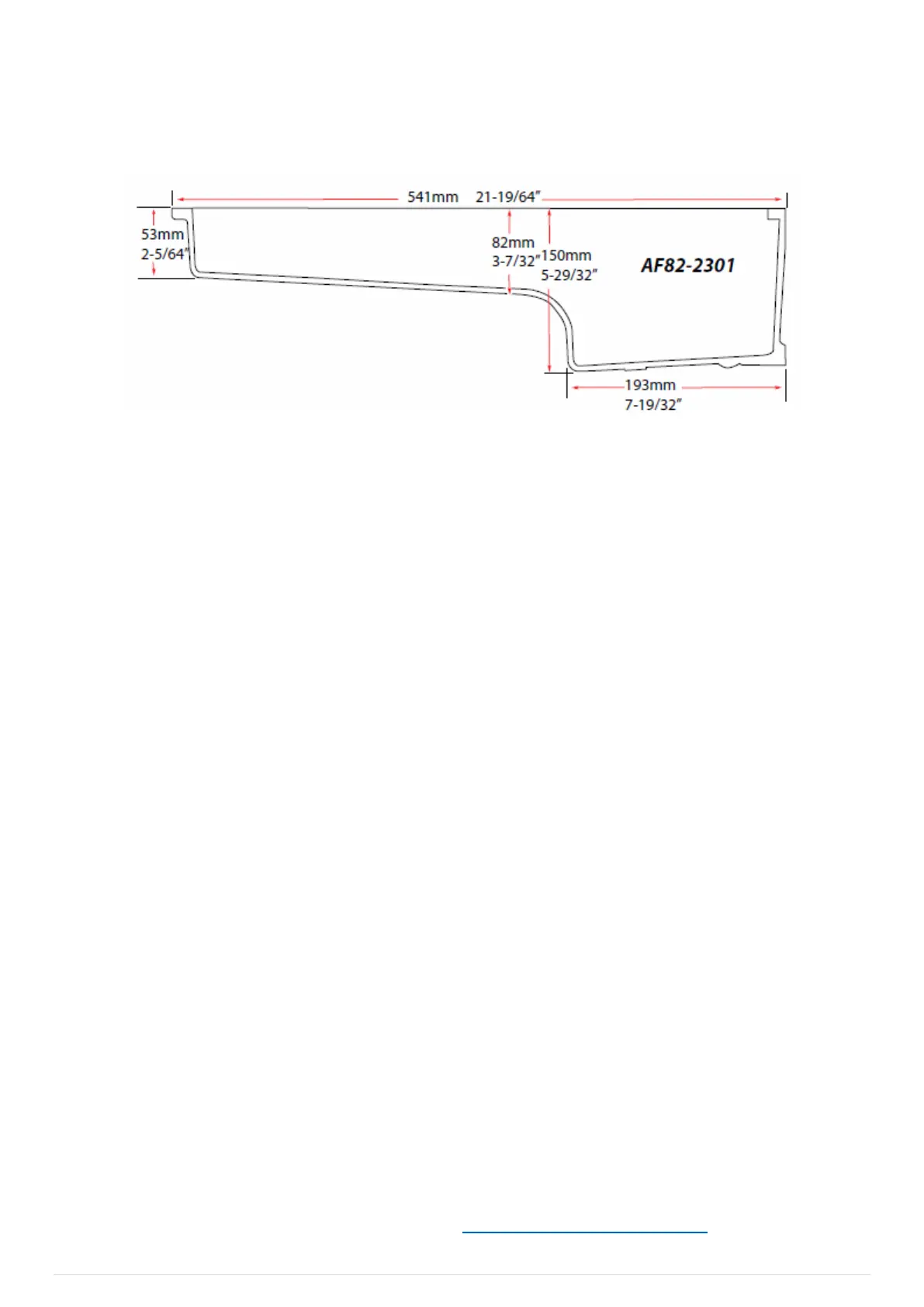

Aeroflow Performance strongly recommends bolting down the oil pan without any sealant and with all the fasteners. Then turn the rotating
assembly to check for any interference with the oil pan or windage tray.
Although the factory hardware may be retained in some cases, Aeroflow Performance oil pans includes fasteners that are engineered to the
specific oil pan. Some oil pans will work better with the factory OE bolts, while others are better suited for studs and nuts, particularly
aluminium oil pans. A stud kit will protect the threaded oil pan bolt holes in a block and simplify removal and replacement of the oil pan.
REMOVAL
1. Remove stock oil pan from the vehicle following the procedure from the factory service manual if you are unsure. Remove pick up
and ensure to keep all hardware that was removed in case it is needed during the installation.
2. To remove the oem oil pan drain the engine oil and remove the oil filter.
3. Remove the starter motor and disconnect the oil level electrical connector ( if required also remove the oil level sensor this oil pan
does not have the provision for this oil level sensor ).
4. Remove the right hand and left hand transmission cover bolts. The bottom two transmission bellhousing bolts and finally remove all
the oil pan bolts.
5. Rotate the oil pan until it can be removed from around the oil pump pickup screen. Removal of the oil pan may not be possible with
the engine in the vehicle.
6. Remove and discard the old oil pan gasket ( a new one is supplied in this kit and it is recommended to use a new oil pan gasket ).
7. Remove the oil pump pickup screen and O-ring, discard O-ring and set the pickup aside as it will not be re-used ( a new one is
supplied in this kit and it is recommended to use a new oil pickup ).
INSTALLATION
1. Before installation please note the following points :
I. All gasket surfaces should be free of oil or other foreign material during assembly. Inspect the engine block oil gallery
passages to make sure they are free from any debris or restrictions.
II. The oil pan on LS engines is a structural member. The alignment of the pan is critical to provide the proper mounting
points for the transmission bellhousing. The rear of the oil pan must never protrude from the rear of the block. The
rear of the block and oil pan are to be flush.
III. It is advisable to wash all of the new parts well before installing to remove any dirt or debris from the packing and
shipping process.
IV. It is advisable to mock up the engine and oil pan in the intended vehicle to ensure there is no contact of the pan to the
frame or cross-members.
V. Dummy install oil pan to engine to ensure no clearance when rotating the crank.
NOTE : Rotate the crank and make sure that all areas clear. If the baffle makes contact with any moving parts you will
need to mark them carefully and clearance the areas. After you have clearance the required areas reinstall the oil pan
and verify that there is sufficient clearance. Do not make modifications while the oil pan is installed and ensure it is
thoroughly cleaned after each modification is carried out.
