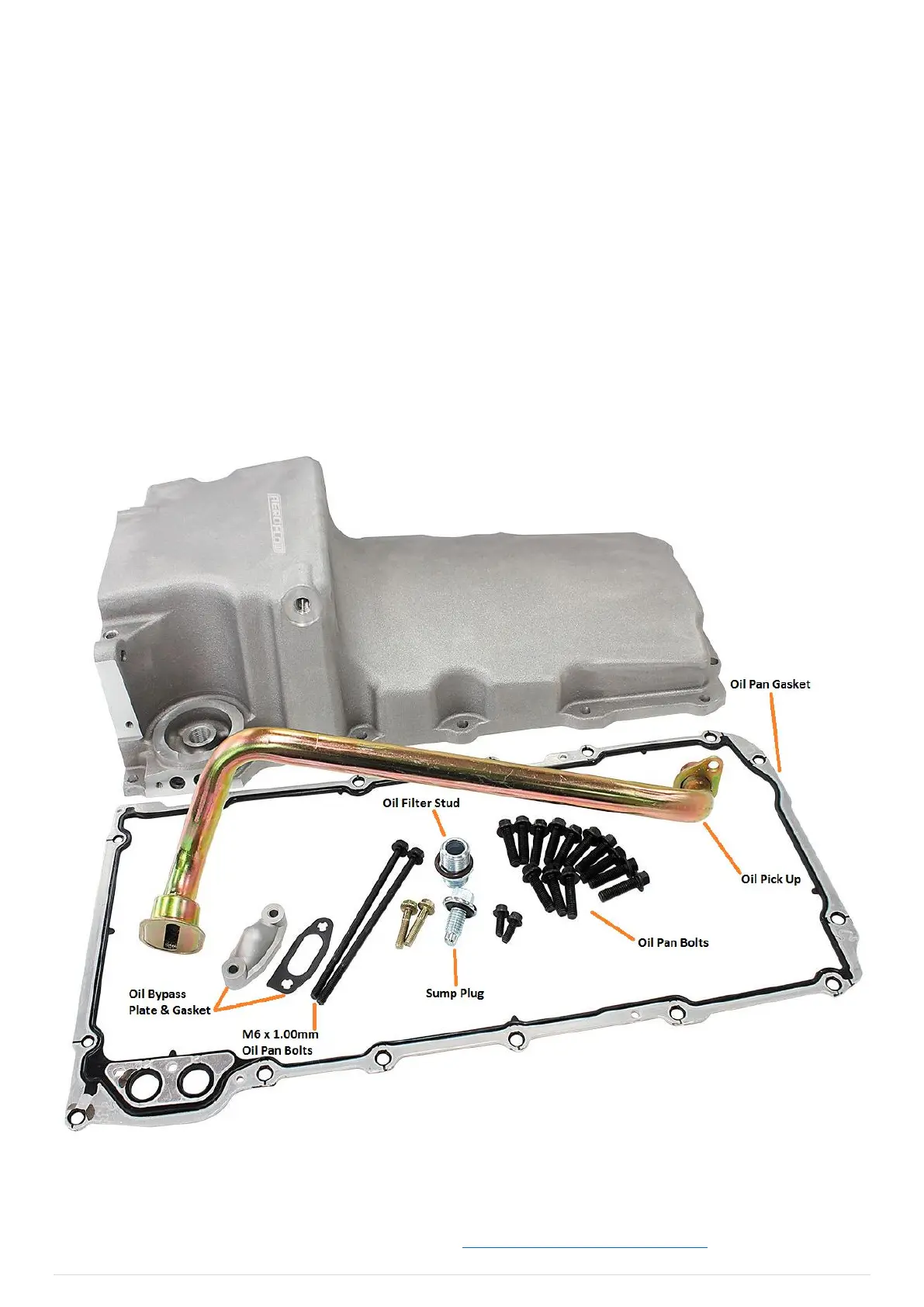

2. Install the supplied O-ring onto the oil pump pickup screen assembly and lubricate with clean engine oil.
3. Due to the design of the oil pump pickup screen, slight modifications may have to be made to the oil deflector before the pickup
screen will sit flush. Be sure to inspect this area before bolting the pickup screen into place as modifications may have to be made.
Alternatively purchase an AF82-2020 from Aeroflow Performance.
4. Install the new oil pump pickup screen assembly ensuring that oil pump pickup screen tube is pushed completely into the oil pump
before tightening the bolt. Do not allow the bolt to pull the tube into the pump. Torque these bolts to 12Nm.
5. Install the baffle into the oil pan using the supplied 1/4-20” x 0.500” long cap screws and torque down to 12Nm.
6. Install the supplied oil passage cover, gasket and M6 x 1.0 x 30mm long bolts to the oil pan just above the oil filter. Tighten the oil
passage cover bolts to 12Nm.
7. Install the new oil pan gasket to the oil pan and install the oil pan bolts to the pan through the gasket. The gasket is designed to hold
the bolts in place.
8. Apply a 5mm bead of gasket sealant 20mm long to the engine block directly onto the tabs of the front cover gasket and the rear
cover gasket that protrude into the oil pan surface.
9. Install the oil pan assembly to the engine block. Install all oil pan bolts and working from centre out. Torque these bolts to 11Nm.
10. Install and tighten bellhousing bolts and torque to 50Nm.
11. Install and tighten both the right hand and left hand transmission cover bolts and torque to 12Nm.
12. Install and tighten the oil pan drain plug and torque to 24Nm
13. Install the supplied oil filter adapter and tighten to 50Nm. Install new oil filter ( sold separately ).
14. Start the vehicle and check for leaks and adequate oil pressure.
