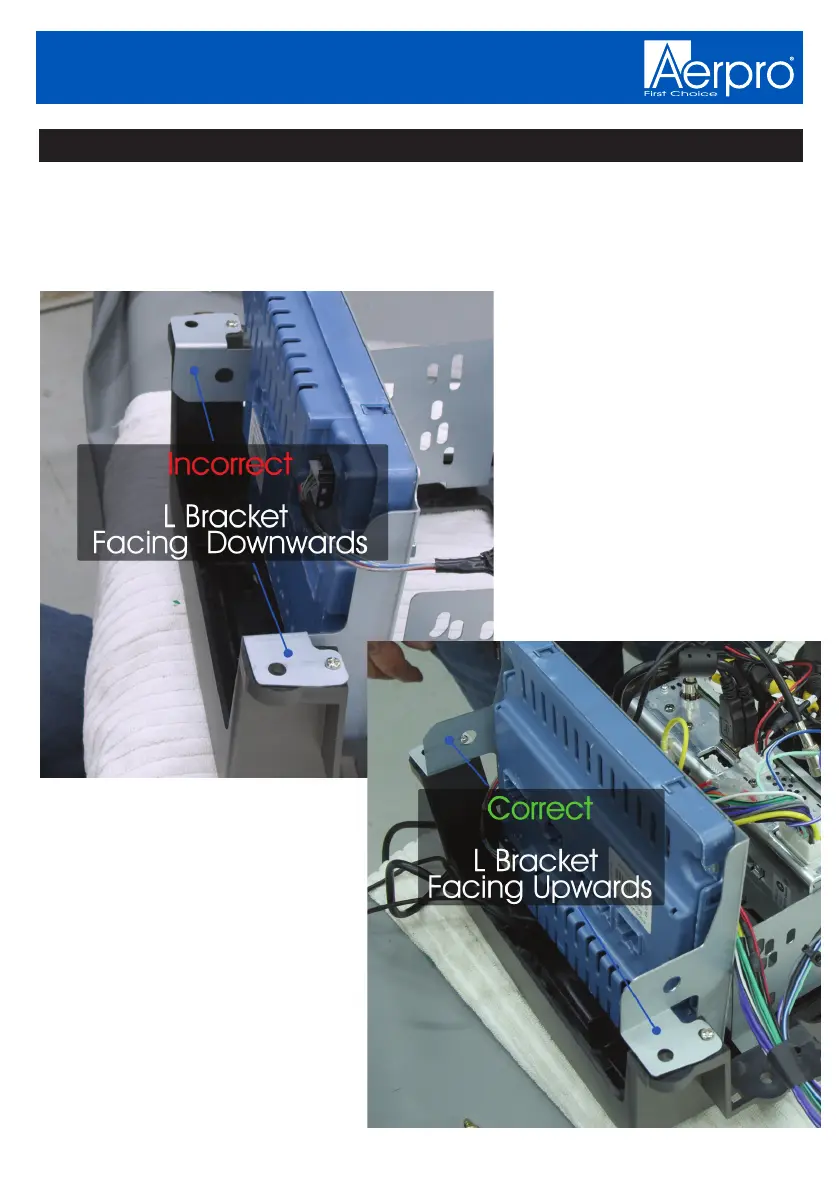

Note: Before going further, it is a good idea to check that the Colour Body Control
Module retaining bracket is fitted correctly. If the mounting bracket is the wrong way
around, and mounted incorrectly the BCM will hit the back of the heater box and the
plugs will not reach. Make sure that the bracket is fitted as shown below
Body Control Module Mounting
2-17
