AEV MIRAGE MK III User Manual

MIRAGE MK III - Broadcast Audio Processor
AEV Broadcast Srl via della Tecnica 33, 40050 Argelato Bologna ITALY
www.aev.eu info@aev.eu
11
Impedance: 50 Ω
Connector: BNC floating
Max cable length: 10 mt. RG58 A/U
Pilot reference output: 1 Vpp sq. wave
Impedance: 600 Ω
Connector: BNC floating over chassis
SCA input: -14 ÷ + 6 dBm for 10% modulation of main carrier
Input impedance: 10 K Ω
Connector: BNC floating over chassis
RDS level: -24 ÷ 0 dBm for ± 2 KHz of main carrier
Input impedance: 10 K Ω
Connector: BNC floating over chassis
GENERAL DATA
Power supply: 87 ÷ 265 VAC 50-60 Hz
Power consumption: 8 VA
Dimensions: (19"x 9.4"x 1.7") 48,3 x 24,0 x 4,4 cm 1 rack unit
Weight: 8.4 Lbs (3,8 Kg)
Operating temperature: 0 ÷ 50 °C

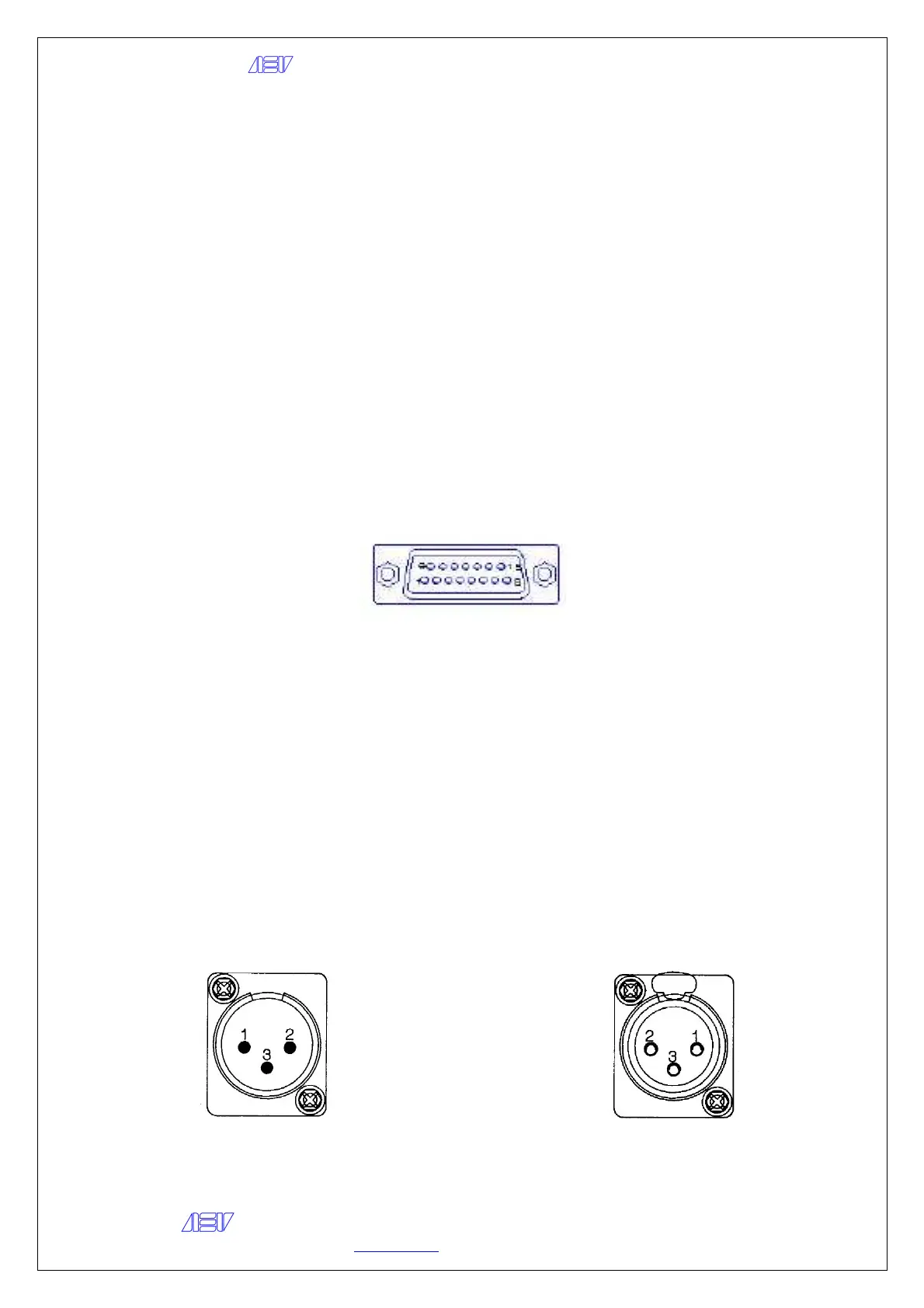

Pin OUT I/O audio interface
1. Right return output
2. Right inphase output
3. GND
4. Left return output
5. Left inphase output
6. GND
7. GND
8. GND
9. GND
10. GND
11. Right return input
12. Right inphase input
13. GND
14. Left inphase input
15. Left return input
OUTPUT INPUT
1 = GROUND 1 = GROUND
2 = INPHASE 2 = INPHASE
3 = RETURN 3 = RETURN
