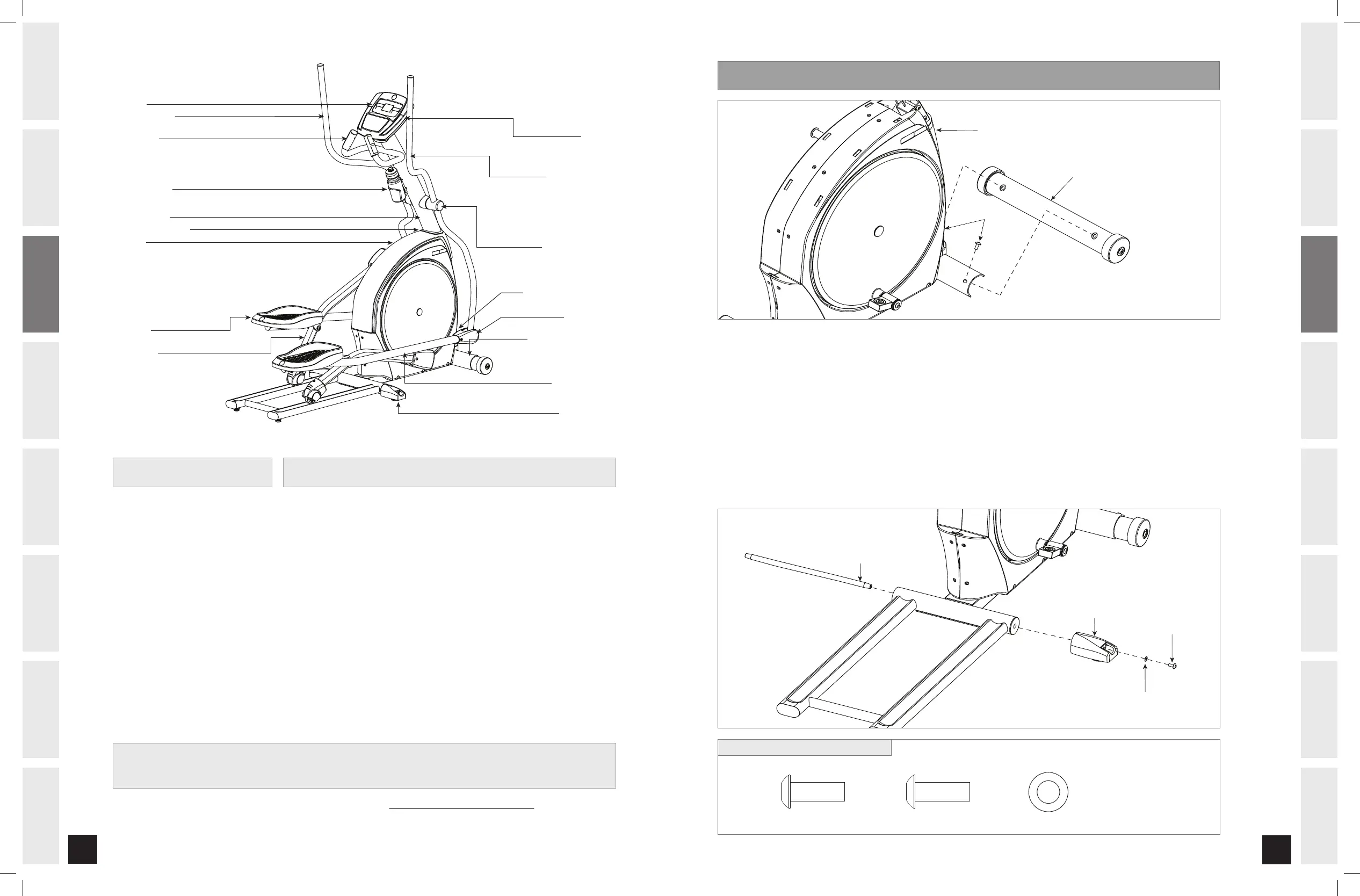

TOOLS INCLUDED PARTS INCLUDED
c 5mm T Wrench
c Phillips Screw Driver
c 13/15mm Flat Wrench
c 1 Console
c 1 Console Mast
c 1 Front Stabilizer Tube
c 1 Left Handlebar
c 1 Right Handlebar
c 2 Foot Pads
c Console Mast Boot
c Power Adaptor
c 7 Hardware Bags
c 2 Handlebar Covers
CONSOLE
RIGHT HANDLEBAR
LOWER LINK ARM
ELBOW COVER
PULSE GRIP
CONSOLE MAST
DISPLAY
FOOT PAD
PEDAL ARM
c 2 Elbow Covers
c 2 Pedal Arm Covers
c 1 Water Bottle Holder
c 1 Water Bottle
c 2 Pedal Arms/Lower Link Arms
c 1 Top Cap
c 1 Foot Leveler Axle
c 2 Foot Levelers
c 2 Wheel Covers
BOTTLE HOLDER
POWER ADAPTOR SOCKET
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.advancedfitnessgroup.com
HANDLEBAR COVERS
FOOT LEVELER
FRONT STABILIZER TUBE
CONSOLE MAST BOOT
TOP CAP
LEFT HANDLEBAR
ASSEMBLY STEP 1
A) Open HARDWARE BAG FOR STEP 1.
B) Attach the FRONT STABILIZER TUBE to the MAIN FRAME using 2 BOLTS (A).
C) Slide FOOT LEVELER AXLE through MAIN FRAME TUBE. (The FOOT LEVELER AXLE is on top of bottom
styrofoam, beside the side shroud).
D) Slide left and right FOOT LEVELERS onto the AXLE.
C) Attach FOOT LEVELERS to the FOOT LEVELER AXLE using 2 BOLTS with BLUE THREAD LOCK (B) and
2 FLAT WASHERS (C).
BOLT (A)
20 mm
Qty: 2
BOLT (B)
20 mm
Qty: 2
FLAT WASHER (C)
16 mm
Qty: 2
BLUE THREADS
HARDWARE BAG FOR STEP 1 CONTENTS :
BOLT (A)
FRONT STABILIZER TUBE
MAIN FRAME
BOLT (B)
FLAT WASHER (C)
STABILIZER BAR
CAP THINGY
MID-STABILIZER COVER
BOLT (A)
FRONT STABILIZER TUBE
MAIN FRAME
BOLT (B)
FLAT WASHER (C)
FOOT LEVELER
FOOT LEVELER AXLE
