HARDWARE BAG FOR STEP 2 CONTENTS :

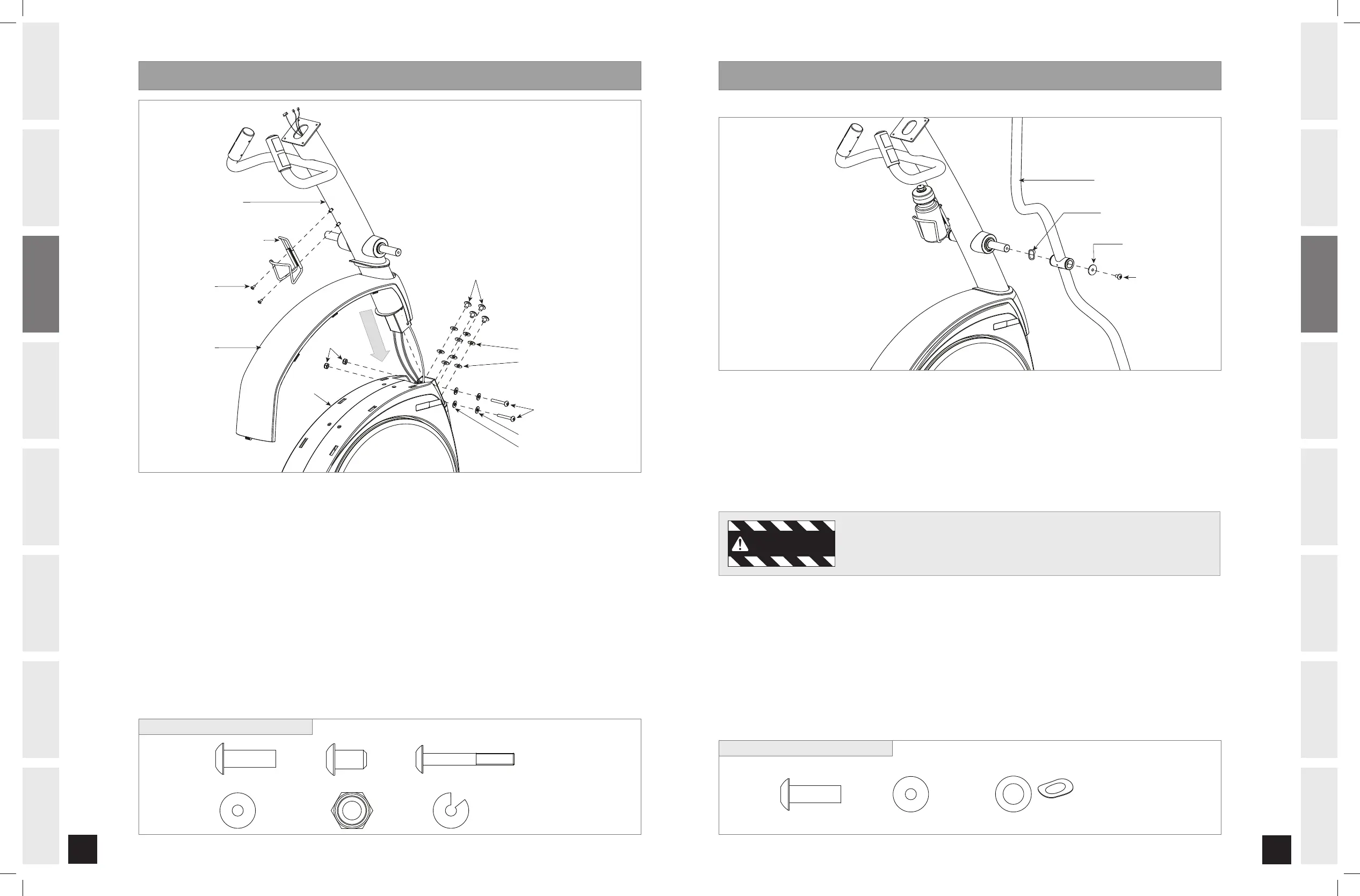

Open HARDWARE BAG FOR STEP 2.
Slide CONSOLE MAST BOOT and TOP CAP onto the bottom of the CONSOLE MAST.
Carefully pull the CONSOLE WIRES through the CONSOLE MAST using the twist tie located inside the
CONSOLE MAST.
DO NOT PINCH WIRES!
Attach the CONSOLE MAST to the MAIN FRAME using 4 BOLTS (E), 4 WASHERS (W) and 4 SPRING WASHERS
(Y)in the front and 2 BOLTS (F), 2 WASHERS (W), 2 SPRING WASHERS (Y) and 2 NUTS (X) from the side.
Attach the WATER BOTTLE HOLDER to the mast using 2 BOLTS (D).
A.
B.
C.
D.
E.
Open HARDWARE BAG FOR STEP 3.
B) Slide RIGHT HANDLEBAR onto CONSOLE MAST and attach using 1 BOLT (G), 1 WASHER (H) and
1 WAVY WASHER (I).
C) Repeat on other side.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
A.
