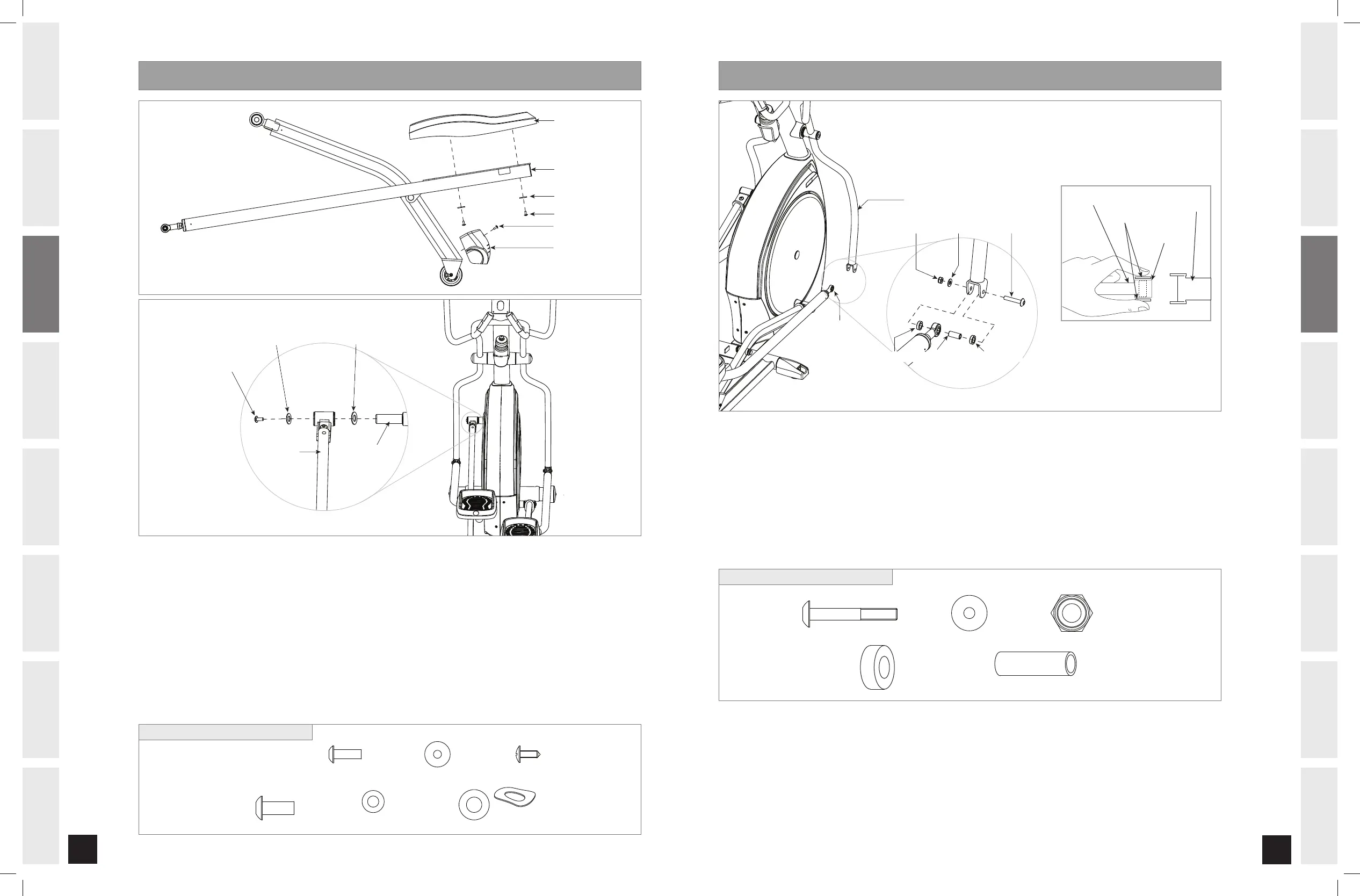

ASSEMBLY STEP 4
FOOTPAD
WASHER (K)
LINK ARM
BOLT (J)
SCREW (L)
WHEEL COVER
NUT (R) WASHER (Q)
BOLT (P)
SPACER AND SPACER RINGS
LOWER HANDLEBAR
LOWER LINK ARM
LOWER LINK ARM
SPACER
SPACER RINGS
LOWER
HANDLEBAR
FOOTPAD
WASHER (K)
LINK ARM
BOLT (J)
SCREW (L)
WHEEL COVER
NUT (R) WASHER (Q)
BOLT (P)
SPACER AND SPACER RINGS
LOWER HANDLEBAR
LOWER LINK ARM
LOWER LINK ARM
SPACER
SPACER RINGS
LOWER
HANDLEBAR
A) Open HARDWARE BAG FOR STEP 4.
B) Attach FOOTPAD to LINK ARM using 4 BOLTS (J) and 4 WASHERS (K).
C) Attach WHEEL COVER to PEDAL ARM using 1 SCREW (L).
D) Repeat on other side.
E) Attach PEDAL ARM to PIVOT TUBE using 1 BOLT (M), 1 WASHER (N) and 1 WAVY WASHER (O).
F) Repeat on other side.
BOLT (J)
12 mm
Qty: 8
BOLT (M)
20 mm
Qty: 2
WASHER (K)
15 mm
Qty: 8
SCREW (L)
12 mm
Qty: 2
WASHER (N)
Qty: 2
WAVY WASHER (O)
Qty: 2
SIDE VIEW
HARDWARE BAG FOR STEP 4 CONTENTS :
ASSEMBLY STEP 5
WASHER (Q)
Qty: 2
NUT (R)
Qty: 2
BOLT (P)
45 mm
Qty: 2
SPACER RING
Qty: 4
SPACER
Qty: 2
HARDWARE BAG FOR STEP 5 CONTENTS :
WASHER (K)
LINK ARM
BOLT (J)
WAVY WASHER (O)WASHER (N)
BOLT (M)
PEDAL ARM PIVOT TUBE
WHEEL COVER
A) Open HARDWARE BAG FOR STEP 5.
B) Slide SPACER into LOWER LINK ARM.
C) Place SPACER RINGS on both sides of the SPACER. While holding SPACER RINGS, slide LOWER LINK ARM
into bottom end of LOWER HANDLEBAR.
D) Insert 1 BOLT (P) into LOWER HANDLEBAR and secure using 1 WASHER (Q) and 1 NUT (R).
E) Repeat on other side.
