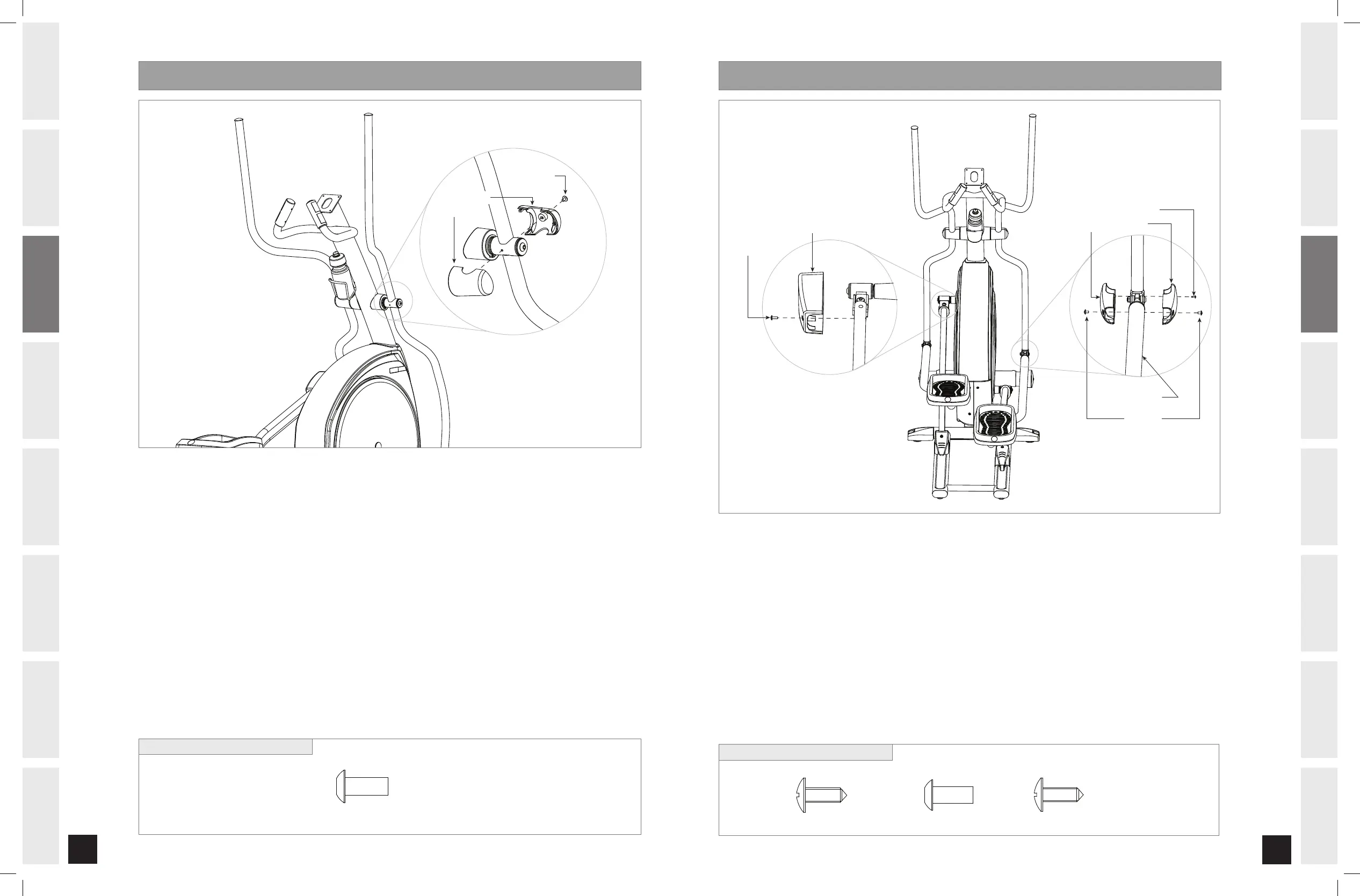

step 8
BOLT (S)
HANDLEBAR
COVER
A) Open HARDWARE BAG FOR STEP 6.
B) Snap HANDLEBAR COVERS together over the RIGHT HANDLEBAR. Note the position of the snap tabs on the
covers before snapping into position.
C) Attach HANDLEBAR COVERS with 1 BOLT (S).
D) Repeat on other side.
BOLT (S)
8 mm
Qty: 2
HARDWARE BAG FOR STEP 6 CONTENTS :
ASSEMBLY STEP 6 ASSEMBLY STEP 7
SCREW (V)
ELBOW COVERS
BOLT (U)
LOWER LINK ARM
SCREW (T)
PEDAL ARM COVER
A) Open HARDWARE BAG FOR STEP 7.
B) Attach PEDAL ARM COVER into LEFT PEDAL ARM using 1 SCREW (T).
C) Repeat on other side.
D) Attach the INSIDE and OUTSIDE ELBOW COVERS to the right LOWER LINK ARM using 2 BOLTS (U).
E) Tighten the ELBOW COVERS together at the front using 1 SCREW (V).
F) Repeat on other side.
SCREW (T)
15 mm
Qty: 2
BOLT (U)
8 mm
Qty: 4
SCREW (V)
10 mm
Qty: 2
HARDWARE BAG FOR STEP 7 CONTENTS :
