AFG 3.1AE - Page 15

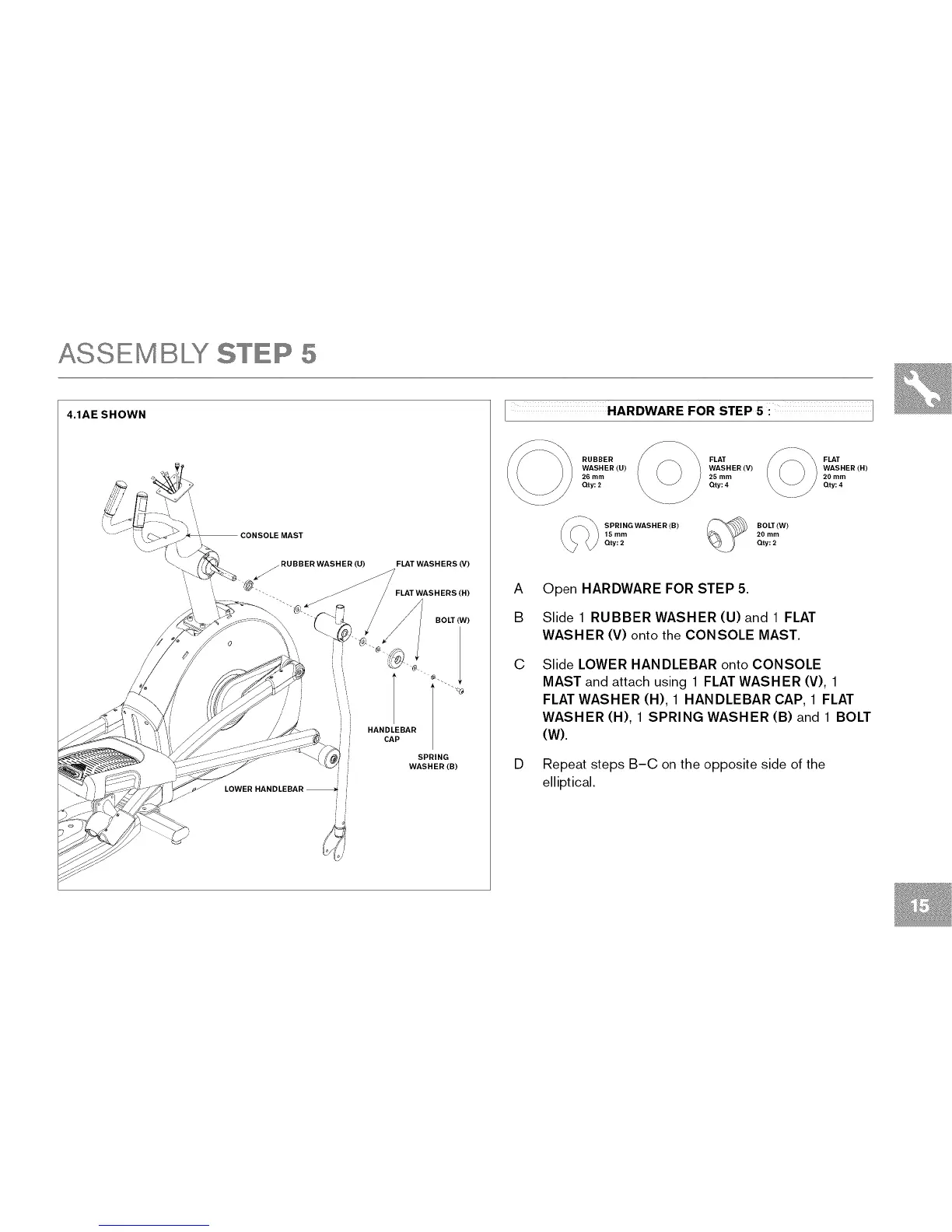

ASSEMBLY STEP 5
4.1AESHOWN
/ RUBBER WASHER (U) FLAT WASHERS (V)
-... _ FLAT WASHERS (H)
LOWER HANDLEBAR
BOLT (w)
-o@ [
HANDLEBARCAP ""_
SPRING
WASHER (B)
HARDWARE FOR STEP 5 :
RUBBER (--_L FLAT
WASHER (U) WASHER (V)
26 mm 25 mm
Qty: 2 Qty: 4
Qty:SPRING WASHER(B)I5 mm2 _? Qty:20BOLT(W)mm2
FLAT
WASHER (H)
2O mm
Qty: 4
A Open HARDWARE FOR STEP 5.
B Slide 1 RUBBER WASHER (U) and 1 FLAT
WASHER (V) onto the CONSOLE MAST.
C Slide LOWER HANDLEBAR onto CONSOLE
MAST and attach using 1 FLAT WASHER (V), 1
FLAT WASHER (H), 1 HANDLEBAR CAP, 1 FLAT
WASHER (H), 1 SPRING WASHER (B) and 1 BOLT
(w).
Repeat steps B-C on the opposite side of the
elliptical.
