AFG 3.1AE - Page 16

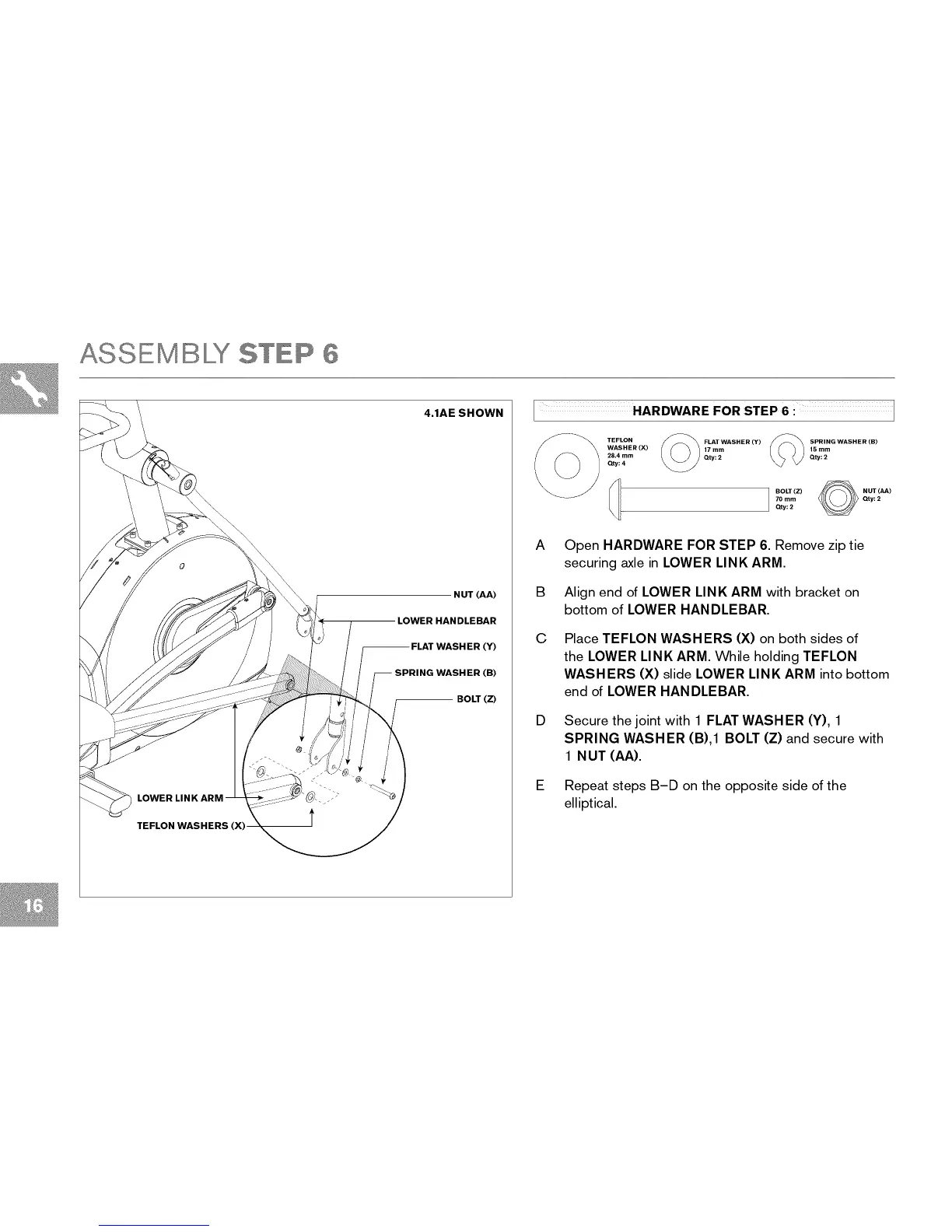

ASSEMBLY STEP 6
LOWER
TEFLON WASHERS
4.1AE SHOWN
NUT (AA)
(Y)
(B)
-- BOLT (Z)
HARDWARE FOR STEP 6 : 1
TEFLON /" f_ _ FLATWASHER (Y)
WASHER (X) _ 17 mm
28.4 mm Qty: 2
Qty:4
SPRING WASHER (B)
15 mm
Qty: 2
BOLT(Z) @ NUT(AA)
70 mm Qty: 2
Qty:2
C
Open HARDWARE FOR STEP 6. Remove zip tie
securing axle in LOWER LINK ARM.
Align end of LOWER LINK ARM with bracket on
bottom of LOWER HANDLEBAR.
Place TEFLON WASHERS (X) on both sides of
the LOWER LINK ARM. While holding TEFLON
WASHERS (X) slide LOWER LINK ARM into bottom
end of LOWER HANDLEBAR.
D
Secure the joint with 1 FLAT WASHER (Y), 1
SPRING WASHER (B),I BOLT (Z) and secure with
1 NUT (AA).
Repeat steps B-D on the opposite side of the
elliptical.
