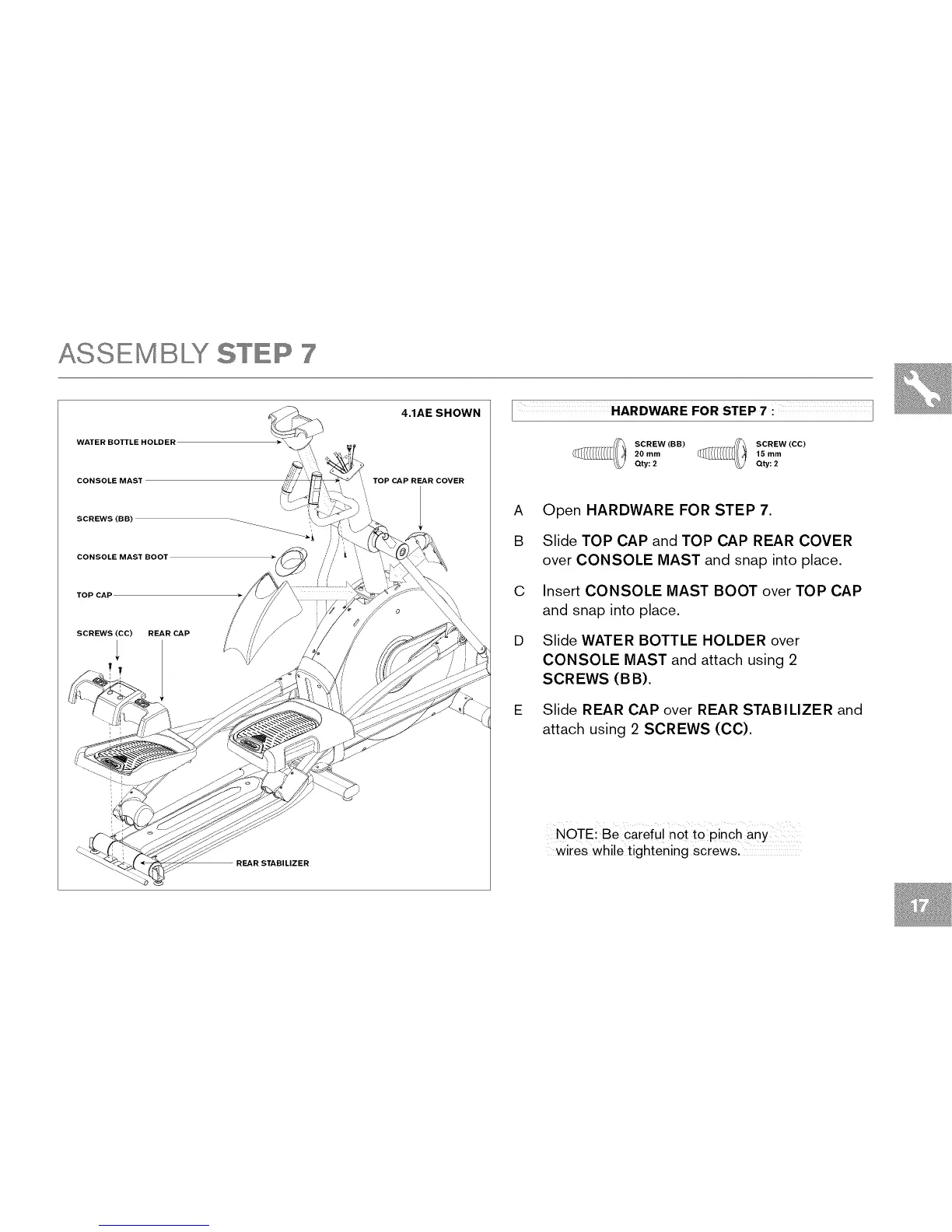

ASSEMBLY STEP "7
WATER BOTTLE HOLDER
CONSOLE MAST
SCREWS (BB)
CONSOLE MAST BOOT
TOP CAF
SCREWS (CC) REAR CAP
4.1AE SHOWN
TOP CAP REAR COVER
HARDWARE FOR STEP 7 : ]
_9 Qty:20SCREW(BB)mm2 _9 Qty:SCREW(CC)I5 mm2
A Open HARDWARE FOR STEP 7.
B Slide TOP CAP and TOP CAP REAR COVER
over CONSOLE MAST and snap into place.
C Insert CONSOLE MAST BOOT over TOP CAP
and snap into place.
D Slide WATER BOTTLE HOLDER over
CONSOLE MAST and attach using 2
SCREWS (BB).
Slide REAR CAP over REAR STABILIZER and
attach using 2 SCREWS (CC).
NOTE: Be careful not to pinch any
wires while tightening screws.
