AFG 3.1AE - Page 18

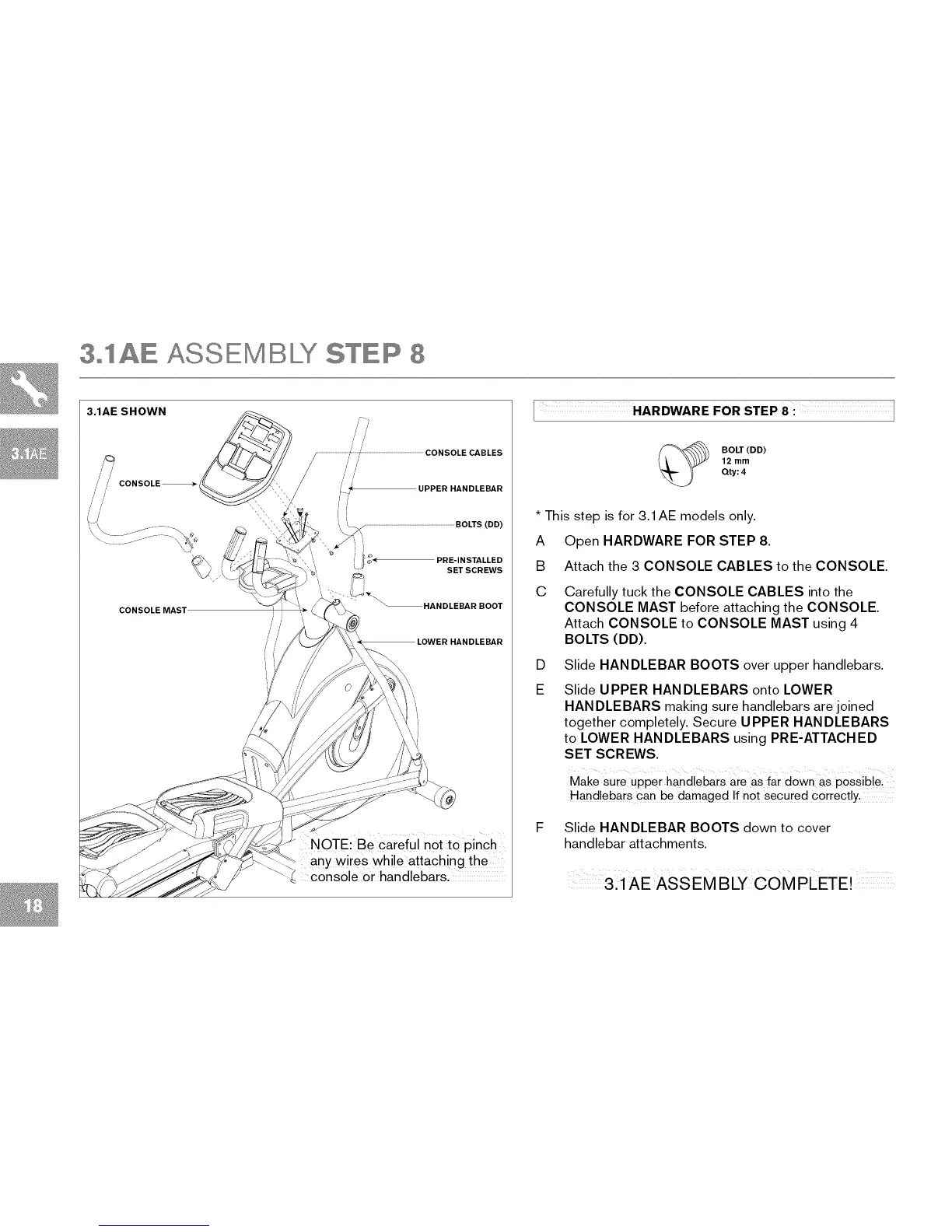

3olAE ASSEMBLY STEP 8
3.1AE SHOWN
,o
// //
/// CONSOLE_
CONSOLE MAST
/' /
// /
/, /'
UPPER HANDLEBAR
BOLTS (DD)
PRE-IN STALLED
SET SCREWS
HANDLEBAR BOOT
NOTE: Be careful not to pinch
any wires while attaching the
console or handlebars.
HARDWARE FOR STEP 8 : 1
BOLT (DD)
12 mm
Qty: 4
* This step is for 3.1AE models only.
A Open HARDWARE FOR STEP 8.
B Attach the 3 CONSOLE CABLES to the CONSOLE.
C
D
E
Carefully tuck the CONSOLE CABLES into the
CONSOLE MAST before attaching the CONSOLE.
Attach CONSOLE to CONSOLE MAST using 4
BOLTS (DD).
Slide HANDLEBAR BOOTS over upper handlebars.
Slide UPPER HANDLEBARS onto LOWER
HANDLEBARS making sure handlebars are joined
together completely. Secure UPPER HANDLEBARS
to LOWER HANDLEBARS using PRE-ATTACHED
SET SCREWS,
Make sure upper hand!ebars are as far down as possible
Handlebar s can be damaged !fnot secured correctly _
F Slide HANDLEBAR BOOTS down to cover
handlebar attachments.
&IAE ASSEM BLY COM PLETE!
