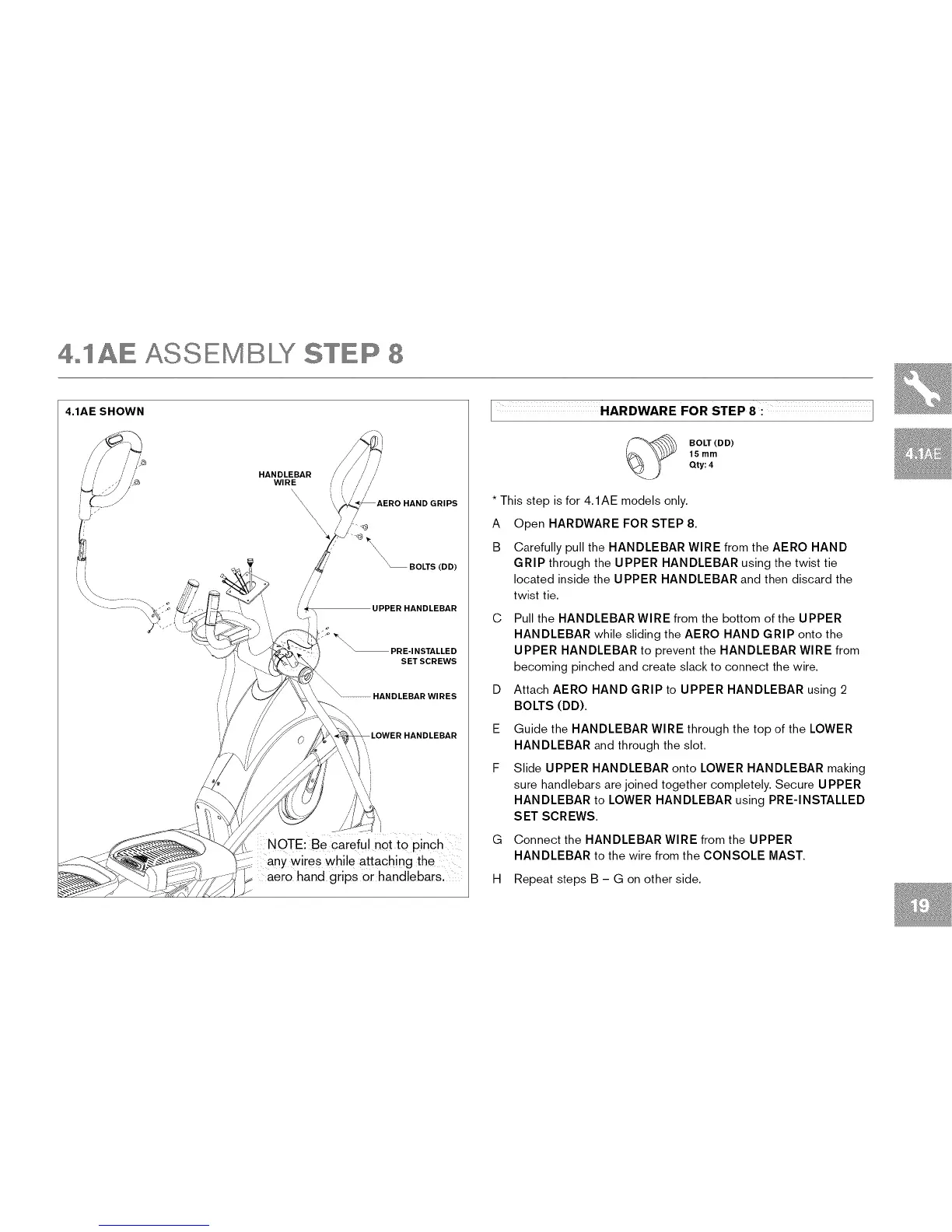

4olAE ASSEMBLY STEP 8
4.1AE SHOWN
HANDLEBAR
WIRE
/ i / /
/
/*/ AERO HAND GRIPS
• @
BOLTS (DD)
UPPER HANDLEBAR
__PRE-INSTALLED
SETSCREWS
........................HANDLEBAR WIRES
NOTE: Be carefu! not to pinch
any wires while attaching the
aero hand grips or handlebars.
HARDWARE FOR STEP 8 : ]
BOLT (DD)
15mm
Qty: 4
* This step is for 4.1AE models only.
A Open HARDWARE FOR STEP 8.
B Carefully pull the HANDLEBAR WIRE from the AERO HAND
GRIP through the UPPER HANDLEBAR using the twist tie
located inside the UPPER HANDLEBAR and then discard the
twist tie.
D
E
F
G
H
Pull the HANDLEBAR WIRE from the bottom of the UPPER
HANDLEBAR while sliding the AERO HAND GRIP onto the
UPPER HANDLEBAR to prevent the HANDLEBAR WIRE from
becoming pinched and create slack to connect the wire.
Attach AERO HAND GRIP to UPPER HANDLEBAR using 2
BOLTS (DD).
Guide the HANDLEBAR WIRE through the top of the LOWER
HANDLEBAR and through the slot.
Slide UPPER HANDLEBAR onto LOWER HANDLEBAR making
sure handlebars are joined together completely. Secure UPPER
HANDLEBAR to LOWER HANDLEBAR using PRE-INSTALLED
SET SCREWS.
Connect the HANDLEBAR WIRE from the UPPER
HANDLEBAR to the wire from the CONSOLE MAST.
Repeat steps B - G on other side.
