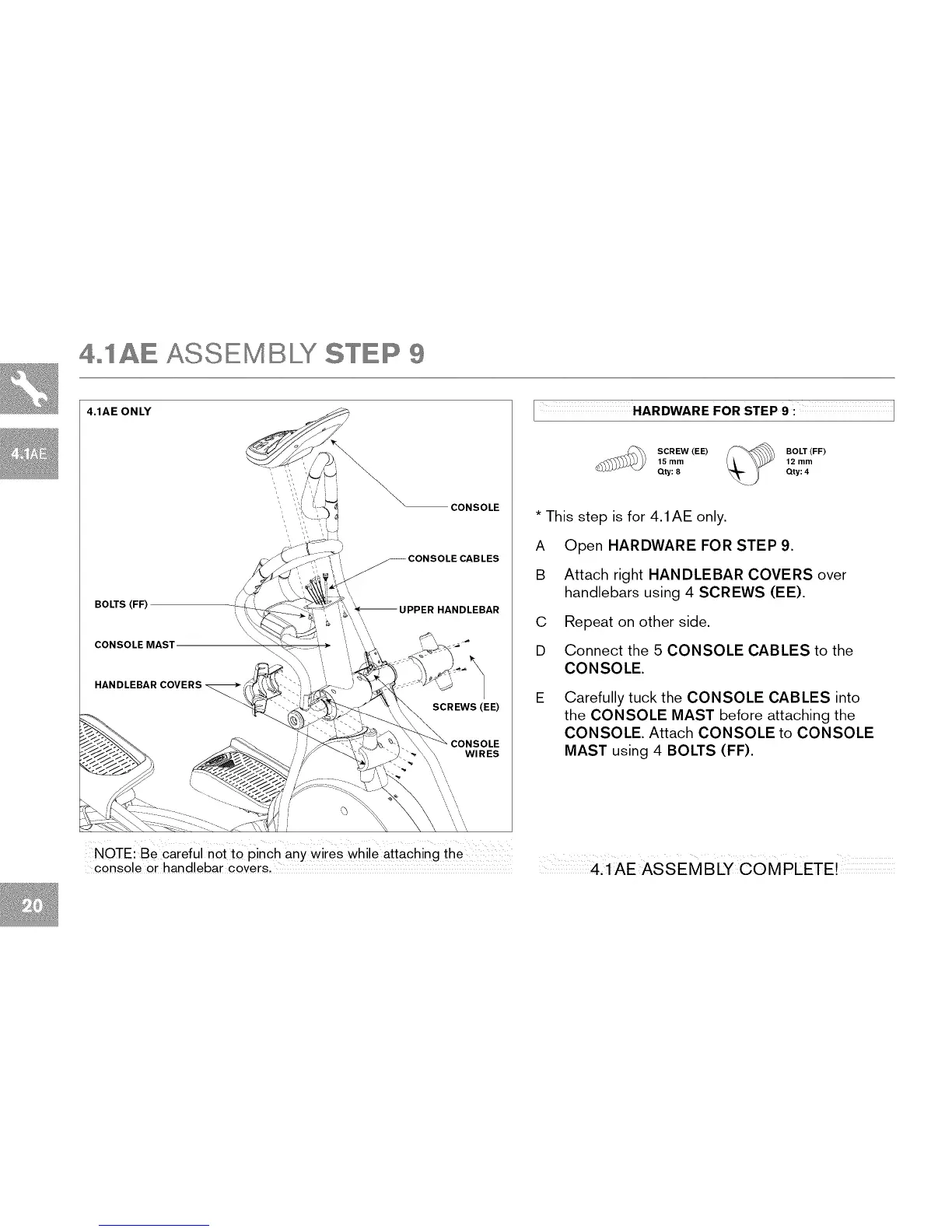

4olAE ASSEMBLY STEP 9
4.1AE ONLY
CONSOLE
BOLTS(FF)
CONSOLE MAS1
HANDLEBAR
NOTE: Be careful not to pinch any wires whi!e attaching th e
console or handlebar covers.
_ H_I_R DW_I_R E FOR STEP 9
__J_ Qty:SCREW15mm8 (EE) _ Qty:12BOLTmm4(FF)
* This step is for 4.1AE only.
A Open HARDWARE FOR STEP 9.
B Attach right HANDLEBAR COVERS over
handlebars using 4 SCREWS (EE).
C Repeat on other side.
D Connect the 5 CONSOLE CABLES to the
CONSOLE.
E Carefully tuck the CONSOLE CABLES into
the CONSOLE MAST before attaching the
CONSOLE. Attach CONSOLE to CONSOLE
MAST using 4 BOLTS (FF).
4,1AE AS SE MB LY CO M PLETE!
