AFG 4.1AE - Page 14

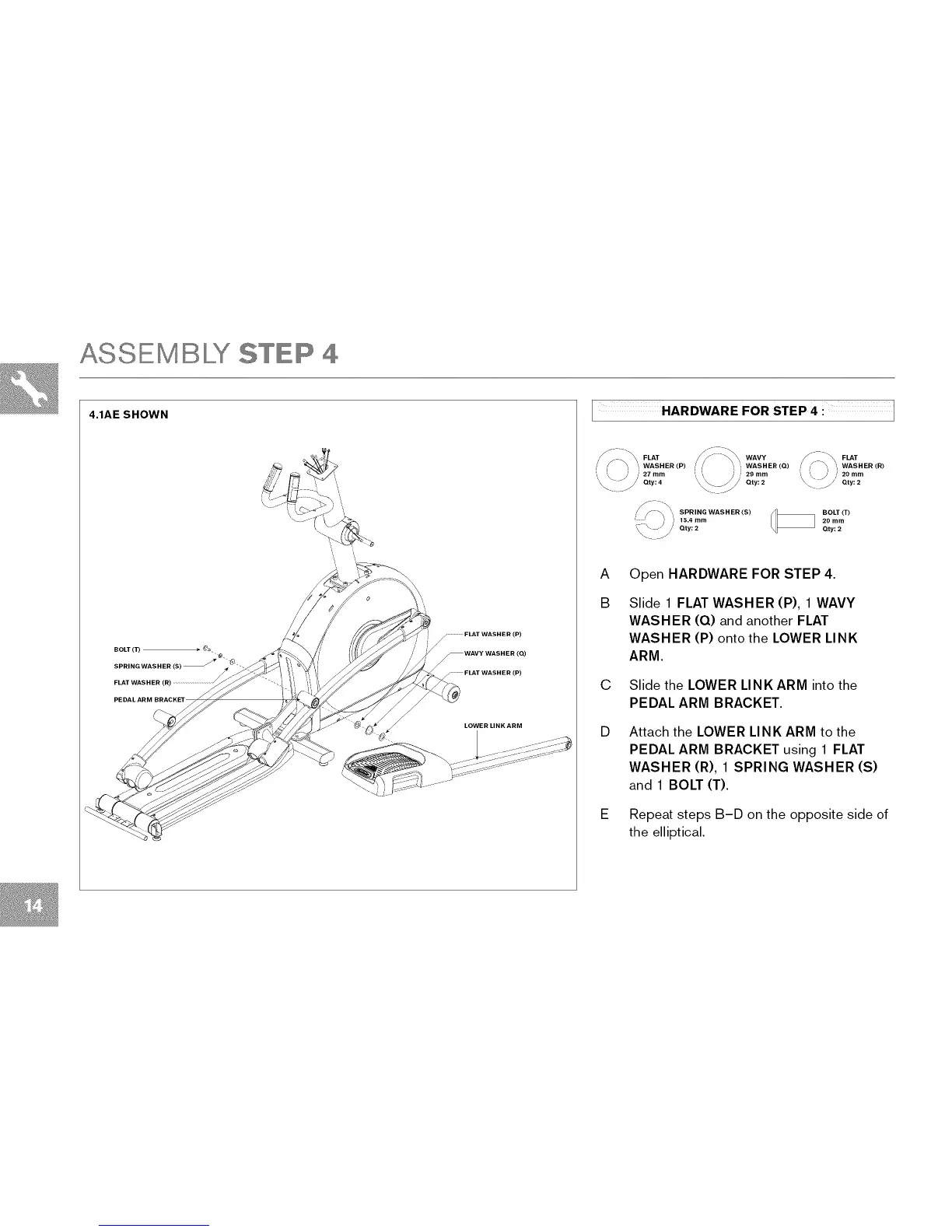

ASSEMBLY STEP 4
4.1AE SHOWN
FLAT WASHER (P)
(Q)
P)
HARDWARE FOR STEP 4 i
A
B
C
FLAT WAVY /_ _ FLAT
WASHER (P) WASHER (Q) ,' // \ ',_ WASHER (R)
// 27 mm _/ 29 mm \ S 20 mm
QtV:4 \-i_ QtV:2 \ J QtV:2
_ ............ (S) _ BOLT(T)
' 1SAturn 20ram
Qty: 2 Qty: 2
Open HARDWARE FOR STEP 4.
Slide 1 FLAT WASHER (P), 1 WAVY
WASHER (Q) and another FLAT
WASHER (P) onto the LOWER LINK
ARM.
Slide the LOWER LINK ARM intothe
PEDAL ARM BRACKET.
Attach the LOWER LINK ARM to the
PEDAL ARM BRACKET using 1 FLAT
WASHER (R), 1 SPRING WASHER (S)
and 1 BOLT (T).
Repeat steps B-D on the opposite side of
the elliptical.
