AFG 7.3AR - Page 13

13
7.3AR

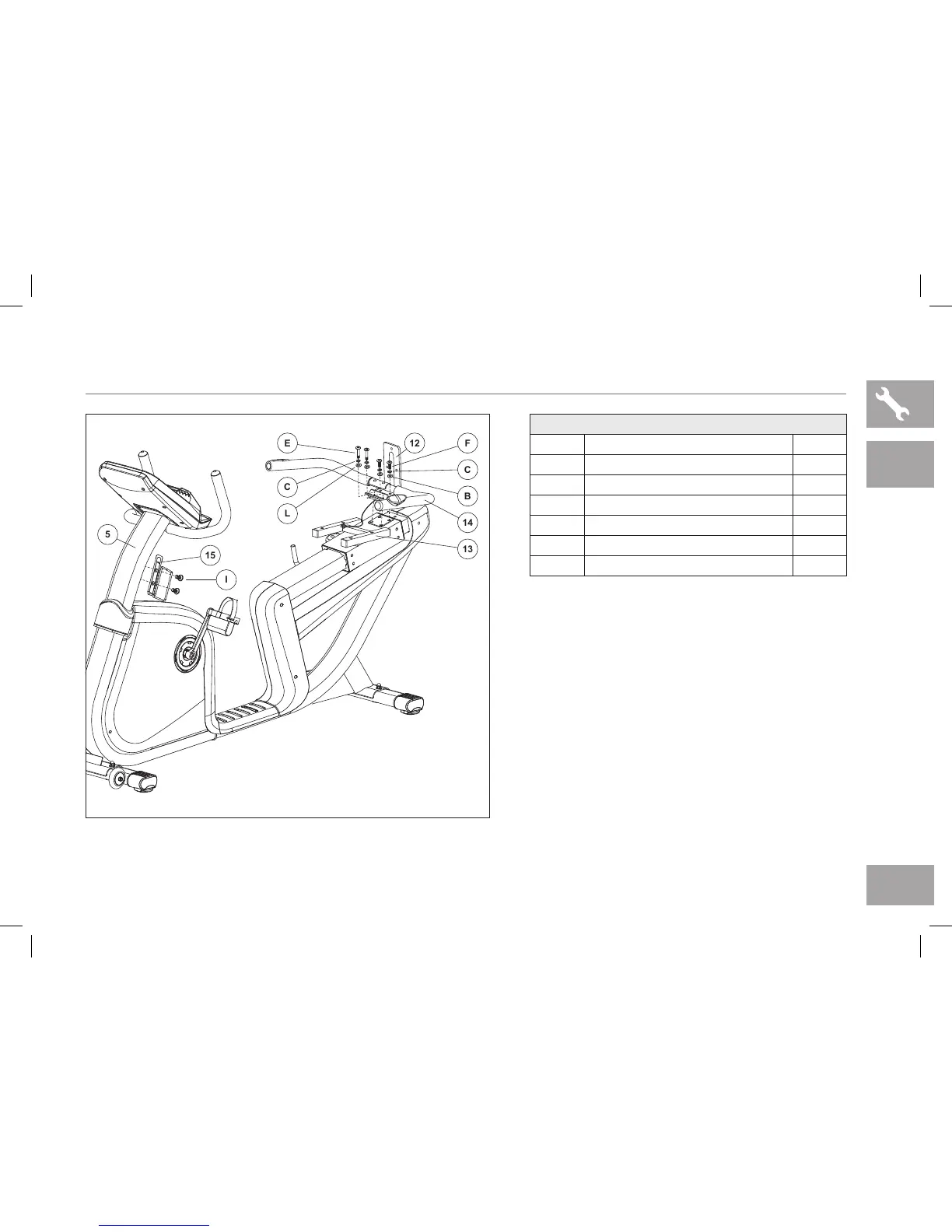

7.3AR ASSEMBLY STEP 4
15
5
I
F
12
C
B
14
13
E
C
L
A Open HARDWARE FOR STEP 4
B To attach the SEAT BACK BRACKET (12) to the
SEAT FRAME (13), insert 2 BOLTS (F), 2 SPRING
WASHERS (C) and 2 FLAT WASHERS (B) into
the rear-facing screw holes on the SEAT BACK
BRACKET (12).
C Attach the HANDLEBARS (14) to the front-facing
screw holes on the SEAT BACK BRACKET (12)
using 2 BOLTS (E), 2 SPRING WASHERS (C) and
2 ARC WASHERS (L).
D Attach the WATER BOTTLE HOLDER (15) to the
CONSOLE MAST (5) using 2 SCREWS (I).
HARDWARE FOR STEP 4
PART TYPE QTY
F BOLT 15 MM 2
B FLAT WASHER 2
C SPRING WASHER 4
E BOLT 50 MM 2
L ARC WASHER 2
I SCREW 2
