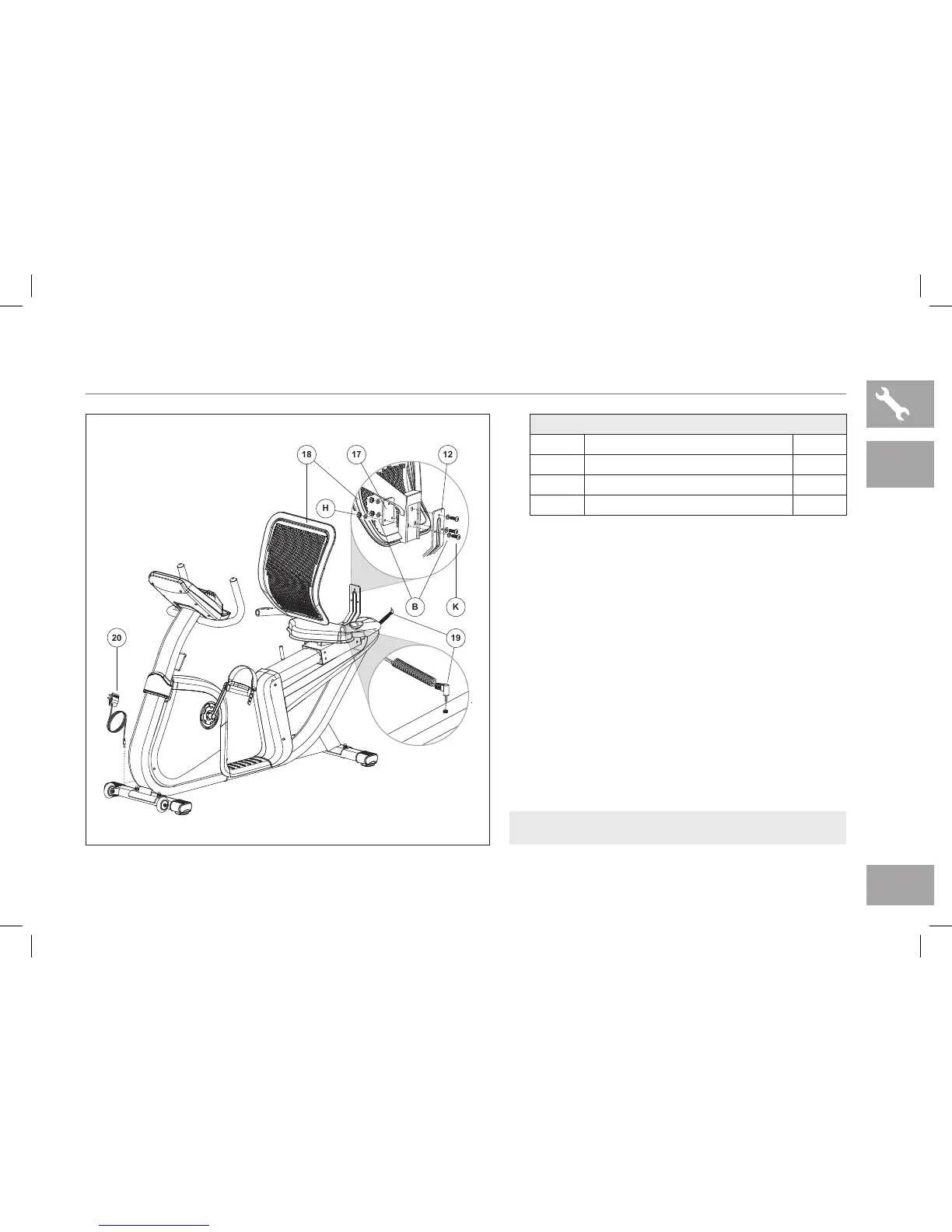

7.3AR ASSEMBLY STEP 6
A Open HARDWARE FOR STEP 6.
B Place SEAT BACK BRACKET PLATE (17) on the
inside of the mesh seat back mount. Align mesh
SEAT BACK (18) to SEAT BACK BRACKET (12).
C Attach mesh seat back to seat back bracket using
3 BOLTS (K) and 3 FLAT WASHERS (B) from the
rear and 3 FLAT WASHERS (B) and 3 NUTS (H)
on the other side of the seat back bracket plate.
D Attach SEAT CABLE (19) as shown. Plug in
POWER ADAPTER (20) as shown.
K
19
B
17
12
18
H
20
7.3AR
7.3AR ASSEMBLY COMPLETE!
HARDWARE FOR STEP 5
PART TYPE QTY
K BOLT 3
B FLAT WASHER 6
H NUT 3
