ASSEMBLY STEP 2
A Open HARDWARE FOR STEP 2.

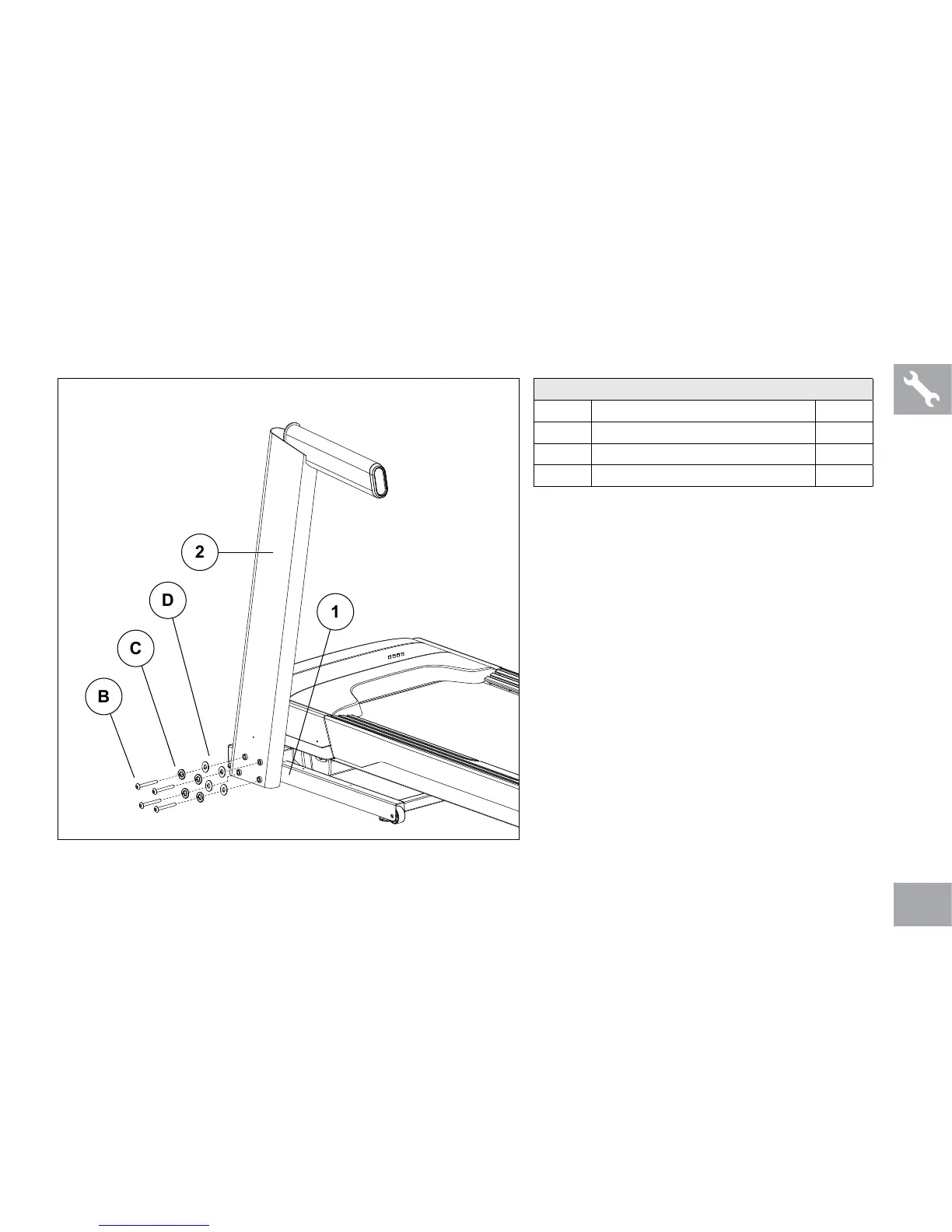

B Attach LEFT CONSOLE MAST (2) so that
BOLT (A) sits on the NOTCHED HOLE in the
bottom of the CONSOLE MAST.
C Attach LEFT CONSOLE MAST (2) to MAIN
FRAME BRACKET (1) using 4 BOLTS (B),
4 SPRING WASHERS (C), and 4 FLAT
WASHERS (D).
HARDWARE FOR STEP 2
PART TYPE QTY
B BUTTON HEAD BOLT 8
C SPRING WASHER 8
D FLAT WASHER 8
