Agilent Technologies 34970A - Page 21

0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
21

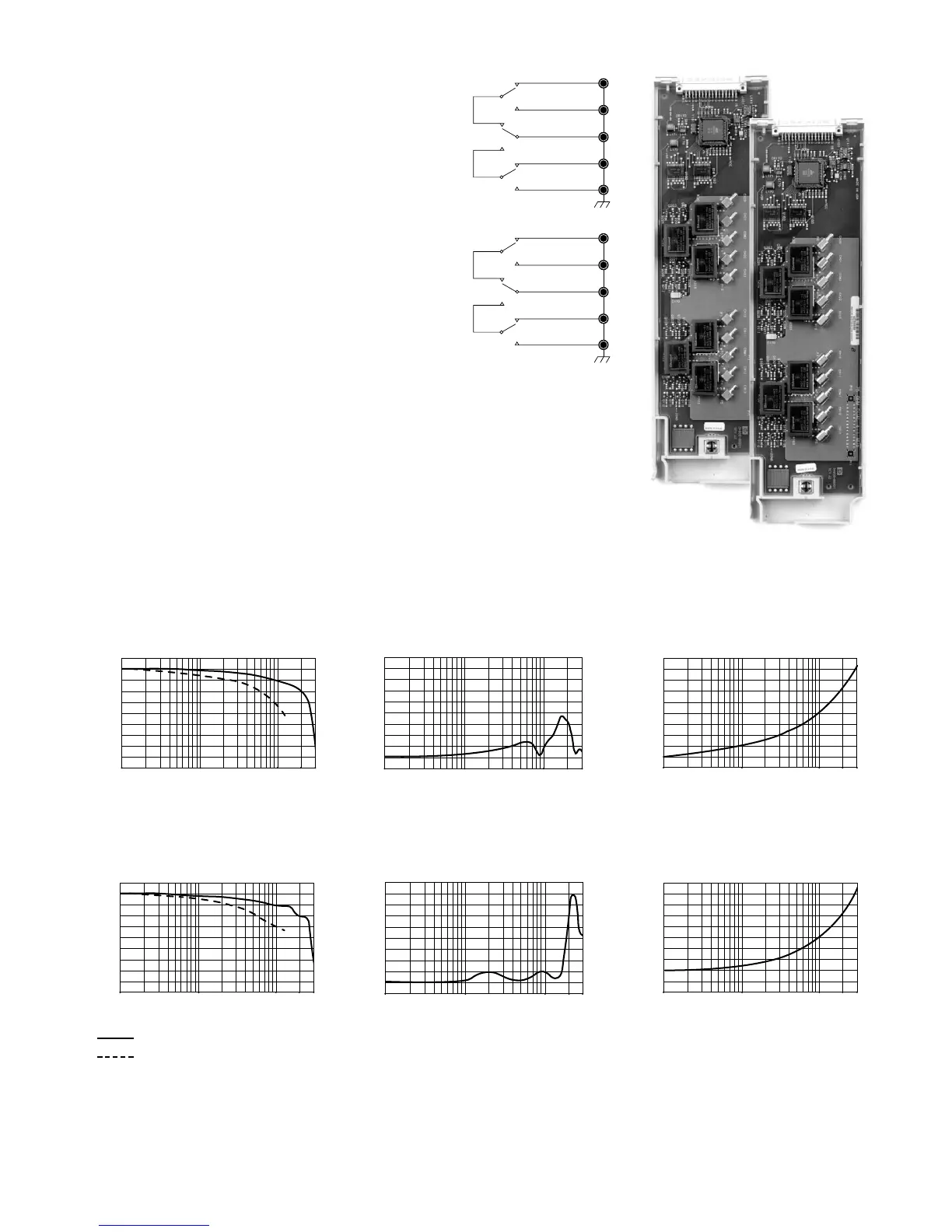

34905A 50Ω
34906A 75Ω
Dual 4-channel RF Multiplexers
• 2 GHz bandwidth
• BNC to SMB adapter cables included
The Agilent 34905A and 34906A RF multiplexers
offer broadband switching capabilities for high-
frequency and pulsed signals. Use them to route
test signals between your device under test and
your signal generator, oscilloscope, spectrum
analyzer, or other instrumentation.
The RF multiplexers are arranged as two independ-
ent 1x4 multiplexers, each with a common shield
and a switched center conductor. Connections
can be made directly to SMB inputs with 2 GHz
usable bandwidth, or to the BNC-to-SMB adapters
provided with 1 GHz bandwidth. Multiple banks
may be cascaded together for applications requir-
ing even larger topologies—create a stubless 16:1
multiplexer in a single frame.
11
12
Com
13
14
21
22
Com
23
24
Insertion Loss
VSWR
Crosstalk
Insertion Loss VSWR Crosstalk
50Ω MUX Typical AC Performance Graphs
direct to card
using provided adapter cables
75Ω MUX Typical AC Performance Graphs
