The Basic Screens
The major parameters for pulse generation can be set up in 3 screens.
For setting up patterns there are two more basic screens.

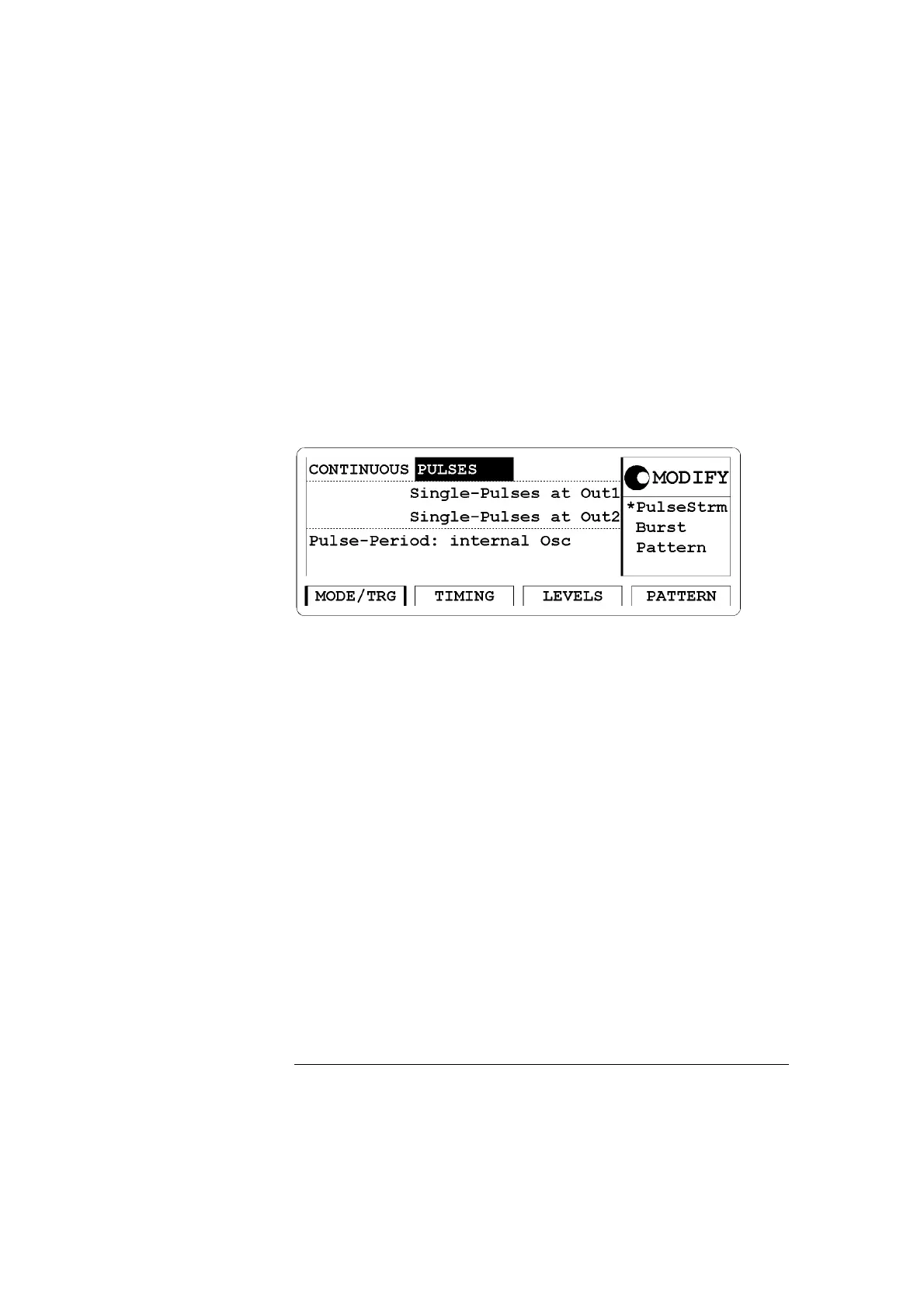

The
Mode/Trigger screen
allows you to set the fundamental operating
and trigger modes with respect to the signal required.
Press the
MODE/TRG softkey
to access this
screen.
In this screen, you can set up the signal to be gated, started or
continuous, and to be a pulse stream, a burst (several pulses followed by
a pause) or a pattern.
In the lower section you can specify the trigger source and control the
trigger output (in started and in gated mode).
