Triggered Burst Mode

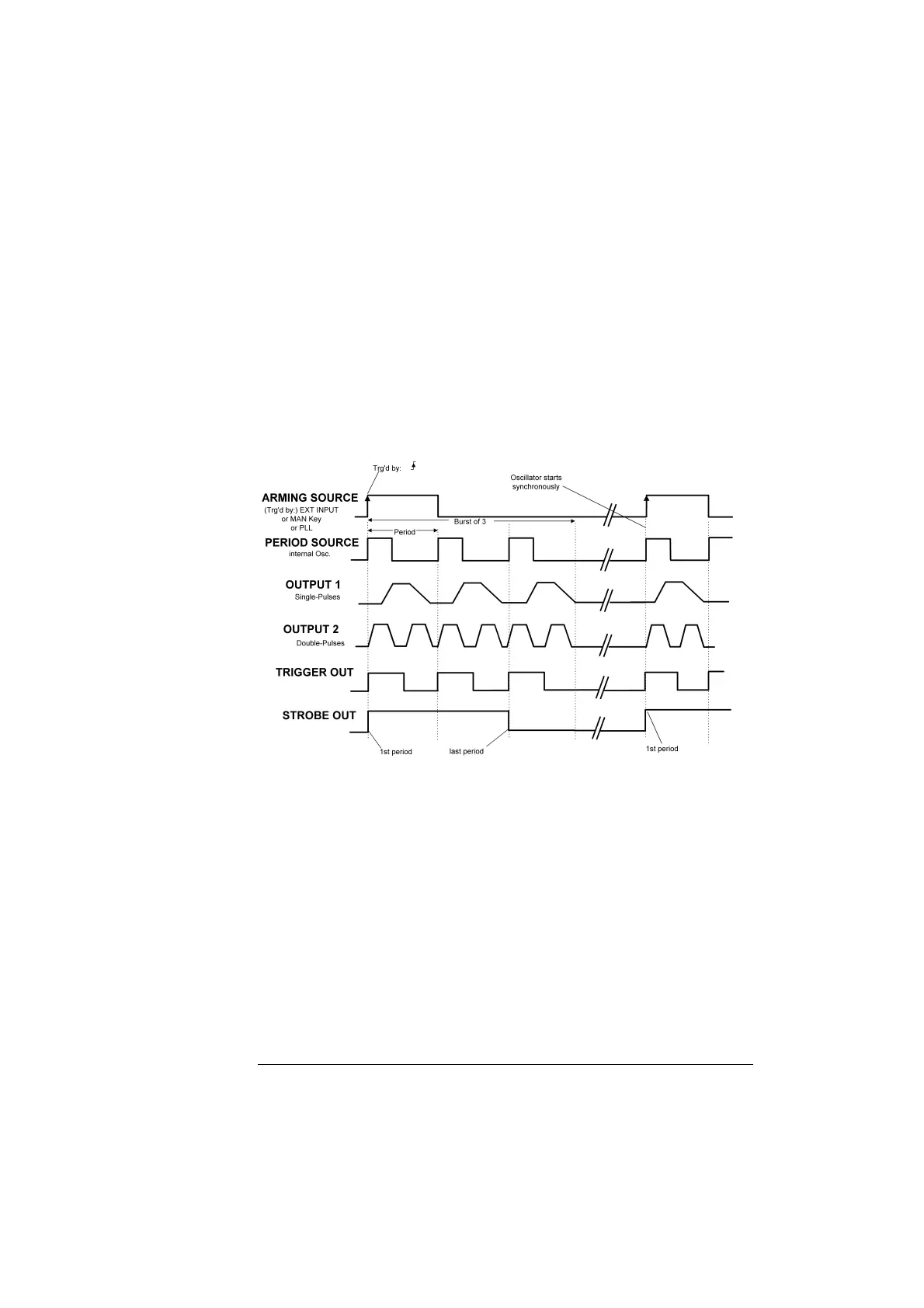

The following figures show typical timings for trigger mode TRIGGERED
and pulse mode BURST.
For the first example, the synchronously triggerable internal oscillator is
used to source the period. The bursts are triggered by the rising edge of
the arming source.
C
CC
Ch
hh
ha
aa
ar
rr
ra
aa
ac
cc
ct
tt
te
ee
er
rr
ri
ii
is
ss
st
tt
ti
ii
ic
cc
cs
ss
s

A burst of pulse periods is triggered by an active edge at the selected
arming source

MAN key on front panel, triggered by press or release or both.

EXT INPUT (External signal) triggered by rising or falling or both
edges.

PLL (Internally triggered bursts), select the triggering period.

You can select the number of pulse periods per burst in the range of
265536.

TRIGGER OUT marks each pulse period.

STROBE OUT rises at the start of the first pulse period in a burst and
falls at the start of the last pulse period.
