528 Chapter12
Replaceable Parts
Component-Level Information Packets

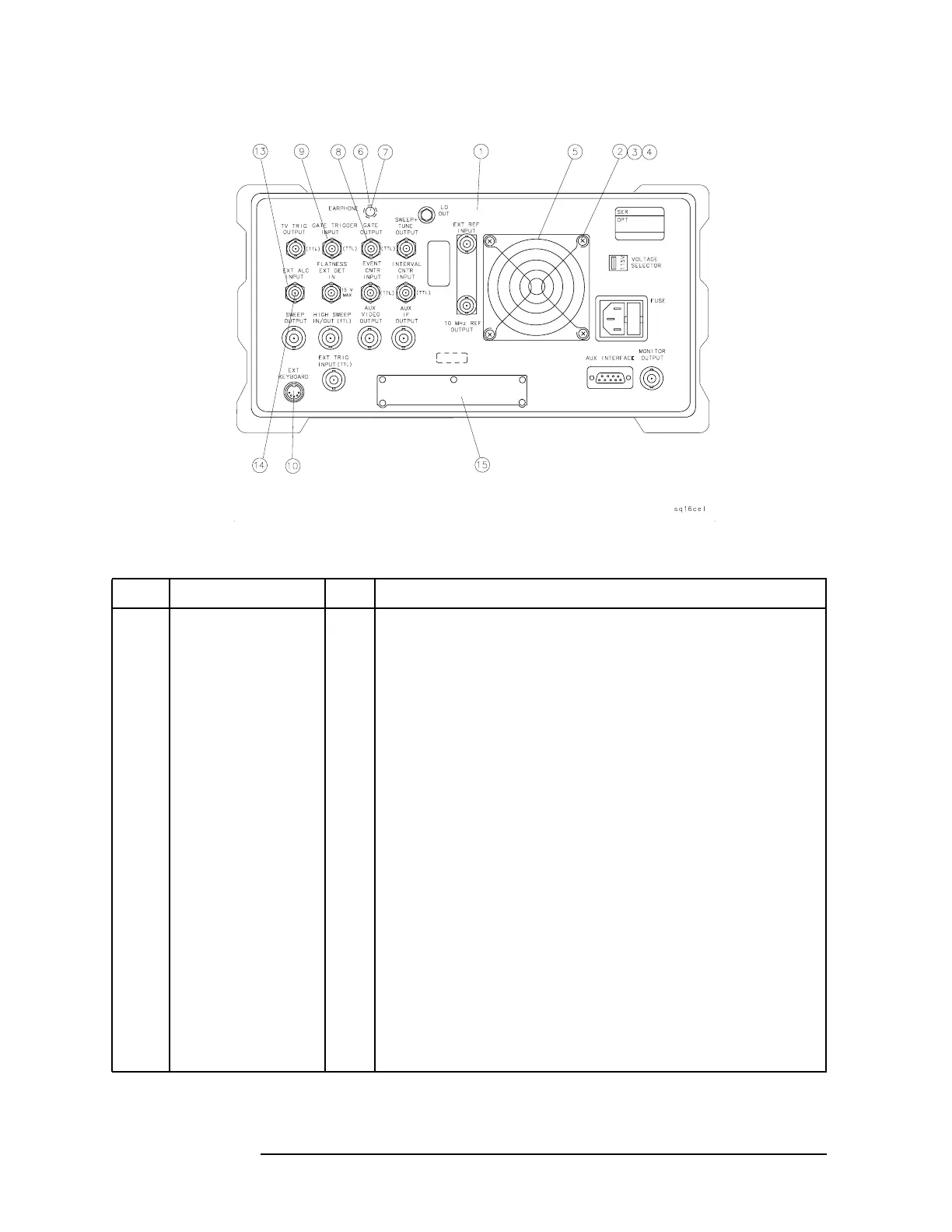

Figure 12-3 Rear Frame Assembly Parts Identification
Item Part Number CD Description
08590-60379
REAR FRAME ASSEMBLY (E-Series, L-Series, and 8591C
only)
08594-60058 REAR FRAME ASSEMBLY (8594Q only)
1 08590-00062 3 REAR FRAME, DUAL I/O
5002-0690 REAR FRAME, SINGLE I/O
08594-00013 REAR FRAME (8594Q only)
2 0380-1900 7 SPACER-ROUND .688L.166ID
3 3050-0105 6 WASHER-FLAT .125ID
4 0515-1038 9 SCREW-MACHINE M3.0 SEMPNPD
5 3160-0309 5 FAN GRILL
6 6960-0076 2 HOLE PLUG .312D
7 08590-60135 3 MINI-JACK CONNECTOR AND NUT (OPTION 102)
8 0590-1251 6 HEX NUT 15/32-32
9 6960-0150 3 HOLE PLUG 12.7DMM
10 6960-0082 0 HOLE PLUG .922D (NOT ON OPTION 021 OR 023)
11 08590-80012 7 HOLE COVER (NOT ON OPTION 021 OR 023)
12 7120-1232 5 BATTERY LABEL
13 5040-0345 7 INSULATOR CONNECTOR
14 1250-0118 3 CONNECTOR RF FEMALE BNC
15 08590-00065 PLATE (BLANK)
