270
Chapter
5
T
roubleshooting the IF Section
T
roub
leshooting the A15 Motherboard Assembly

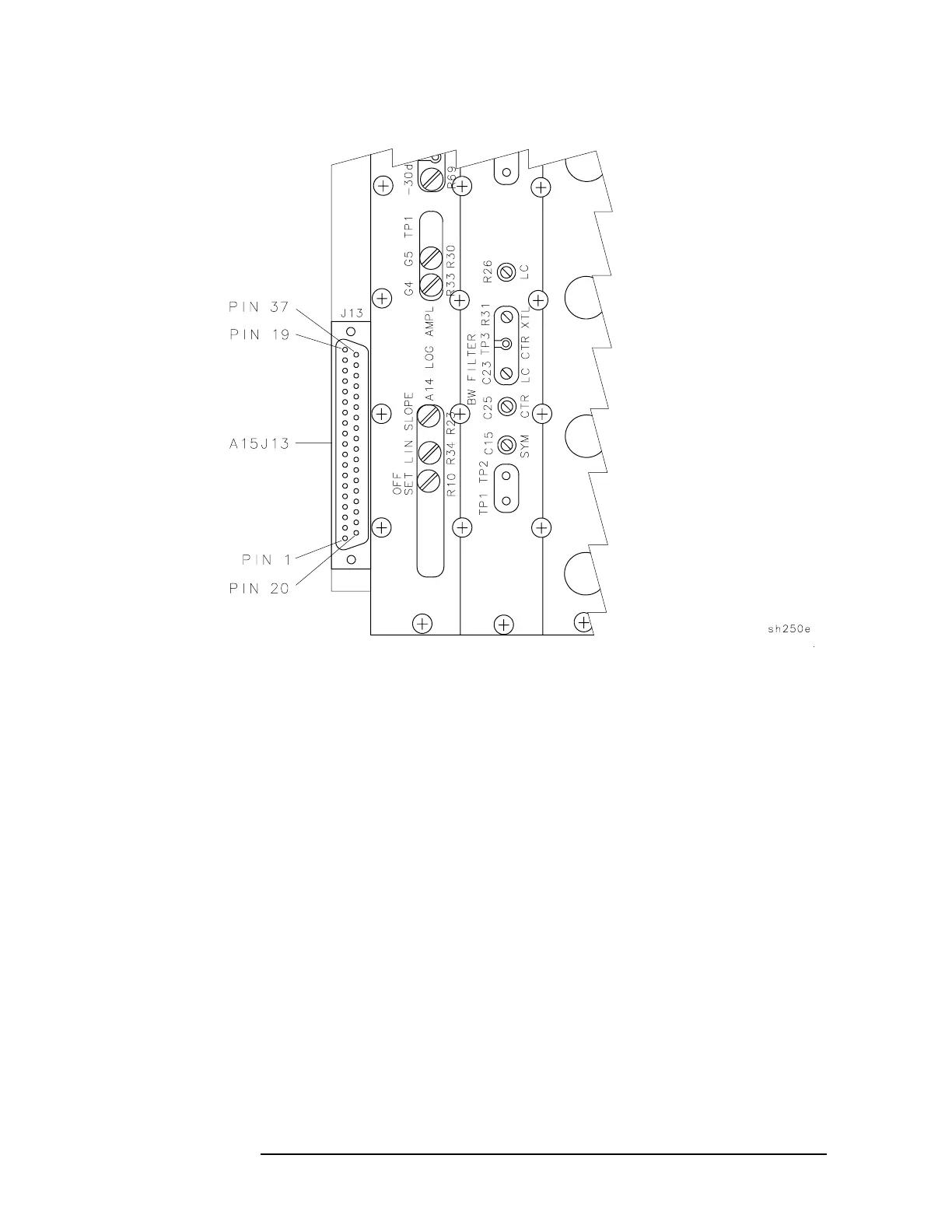

Figure 5-3
A15J13 Connector-Pin Designation
268
