Hardkey and Softkey Reference ESG Family Signal Generators
AM
4-2 User’s Guide
AM

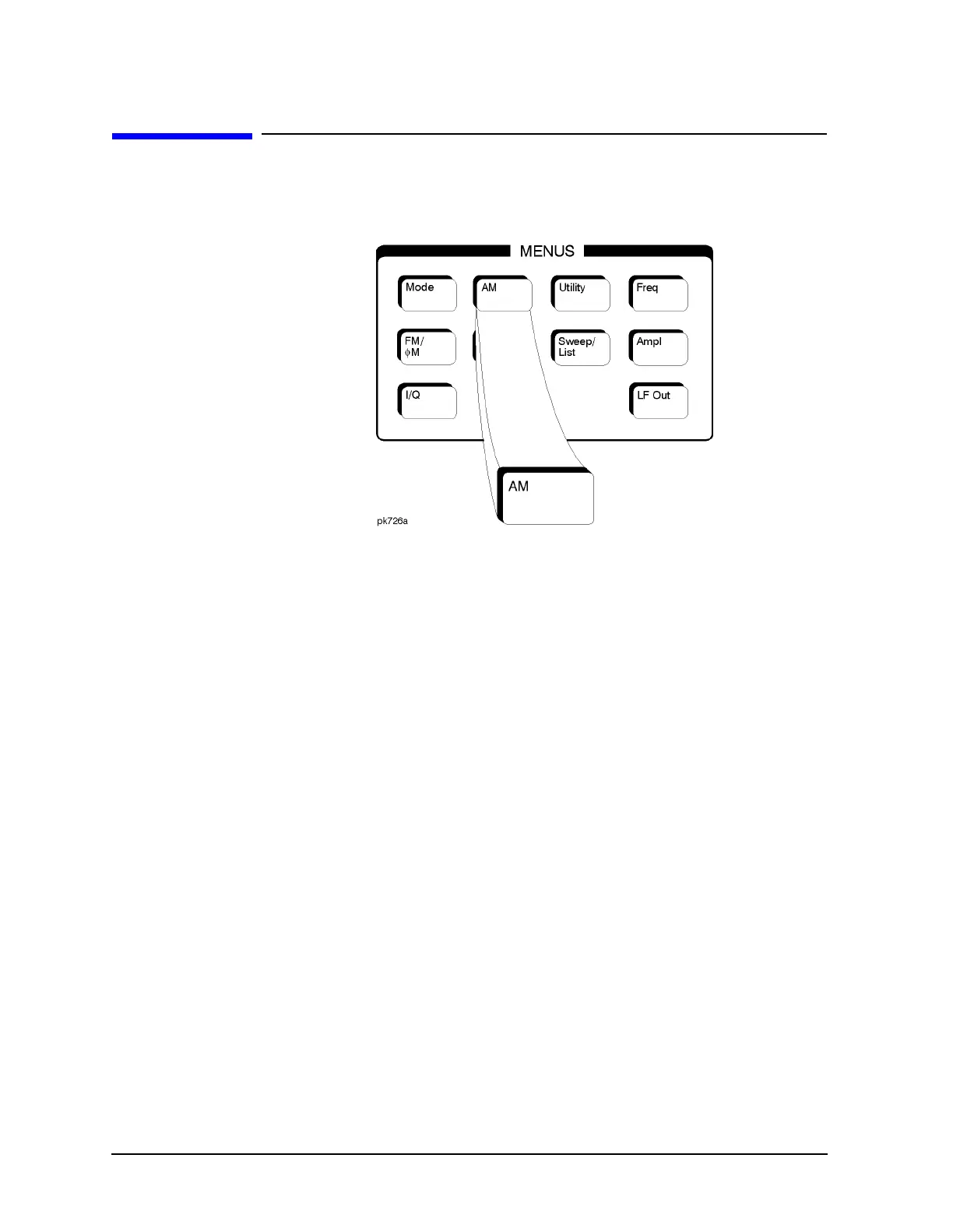

Pressing the front panel AM key reveals a menu of softkeys. These
softkeys are described in this section in alphabetical order.
AM Depth
This softkey sets the amplitude modulation depth, in percent, for the
AM Path 1 and AM Path 2 configurations. To change the value of the AM
depth, press the softkey once. The current value for AM depth is
displayed in the active entry area. To enter a new value, rotate the front
panel knob until the desired value is displayed, use the up and down
arrow keys, or enter the value using the numeric keypad and press the
% terminator softkey. The range of values allowed is 0.1 to 100%. The
minimum increment allowed is 0.1%. Notice that the new value of AM
depth applies only to whichever AM path configuration (
AM Path 1 or
AM Path 2) you have currently selected.
Default Value: 0.1%
Softkey Location:
AM > AM Depth
Or: AM > AM Waveform > Dual-Sine > AM Depth
AM Depth Couple Off On
This softkey toggles the AM depth coupling on and off. AM depth
coupling links the AM depth values of AM Path 1 and AM Path 2. When
the values are coupled, any change you make to one AM depth value is
applied to both AM depth values.
Default Value: Off
Softkey Location:
AM > AM Depth Couple Off On
