Option UND (continued)
Multitone
1
Measure intermodulation distortion
of an amplifier by applying a
multitone waveform.
Select up to 64 equally spaced tones,
with the option of turning off any
combination of tones. Adjust the
frequency spacing between the tones
and the phase of each individual
tone to maximize measurement
accuracy.
Three reconstruction filters
Minimize D/A spurs by matching
reconstruction filters to sample rates.
Select from 250 kHz, 2.5 MHz or
8.0 MHz reconstruction filters, or
provide your own external filter.
External triggers
1
Synchronize the playback of wave-
forms with external test equipment.
Select from continuous, single,
gated, or segment advance triggering
with up to a one-hour delay time.
Markers
1
Trigger other events at specific points
in the playback of a waveform.
Define marker locations in a
segment during the waveform-
generation process, or from the
front panel. Activate or deactivate
markers for each segment using the
sequence table editor. A marker
can also be tied to the RF blanking
feature of the ESG to simulate
bursted signals.
Additive white Gaussian noise
1
Simulate background noise in a
transmission.
Create additive white Gaussian
noise waveforms up to 15 MHz in
bandwidth with variable waveform
lengths.

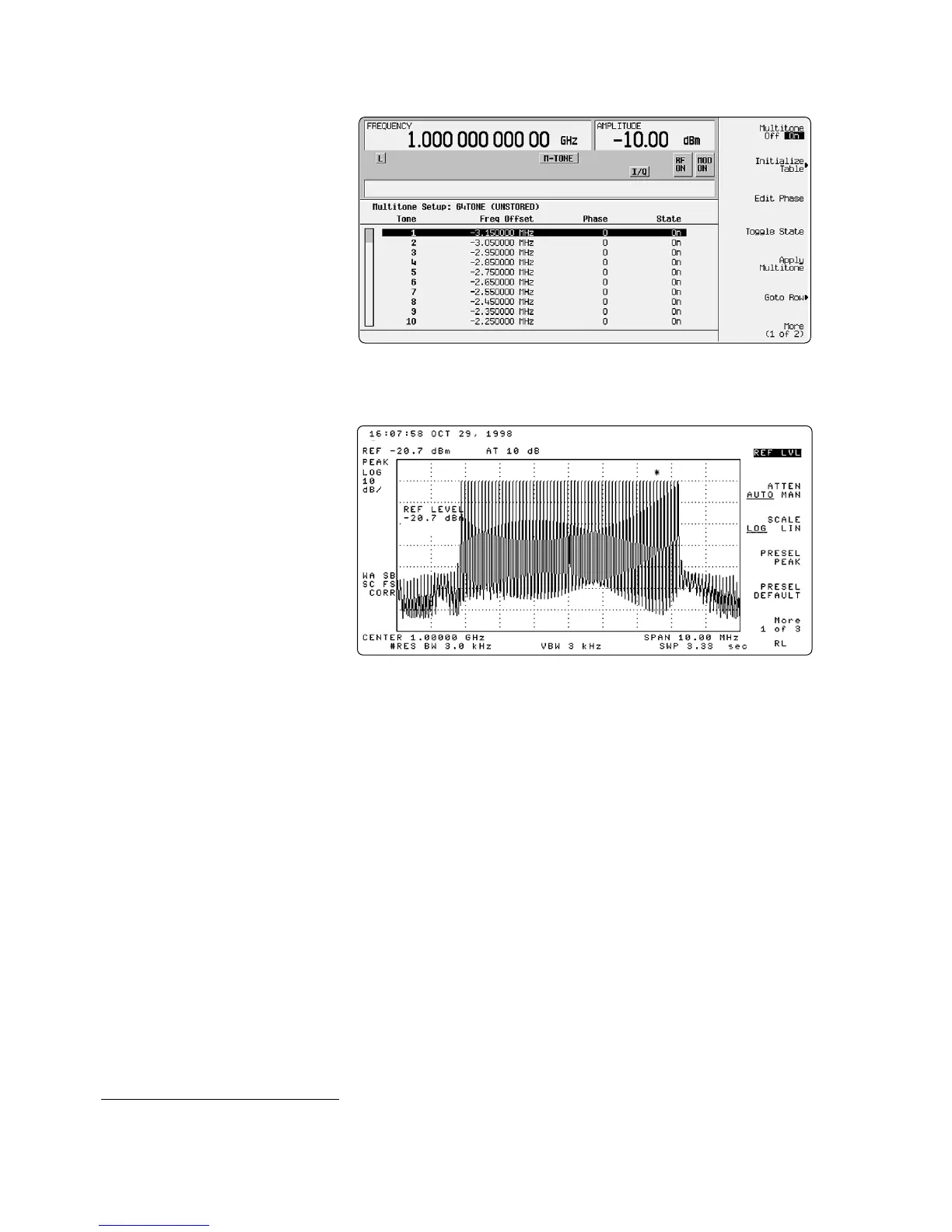

Multitone editor setup.
Depicts the 64 tone signal resulting from the multitone setup.
1. New features available with firmware revision B.02.21 and higher. Triggers require a hardware upgrade. For more information consult the ESG Web page at
www.agilent.com/find/esg.
