Agilent Technologies E8364C - Page 4

Page 4 of 5 E8364C-02A

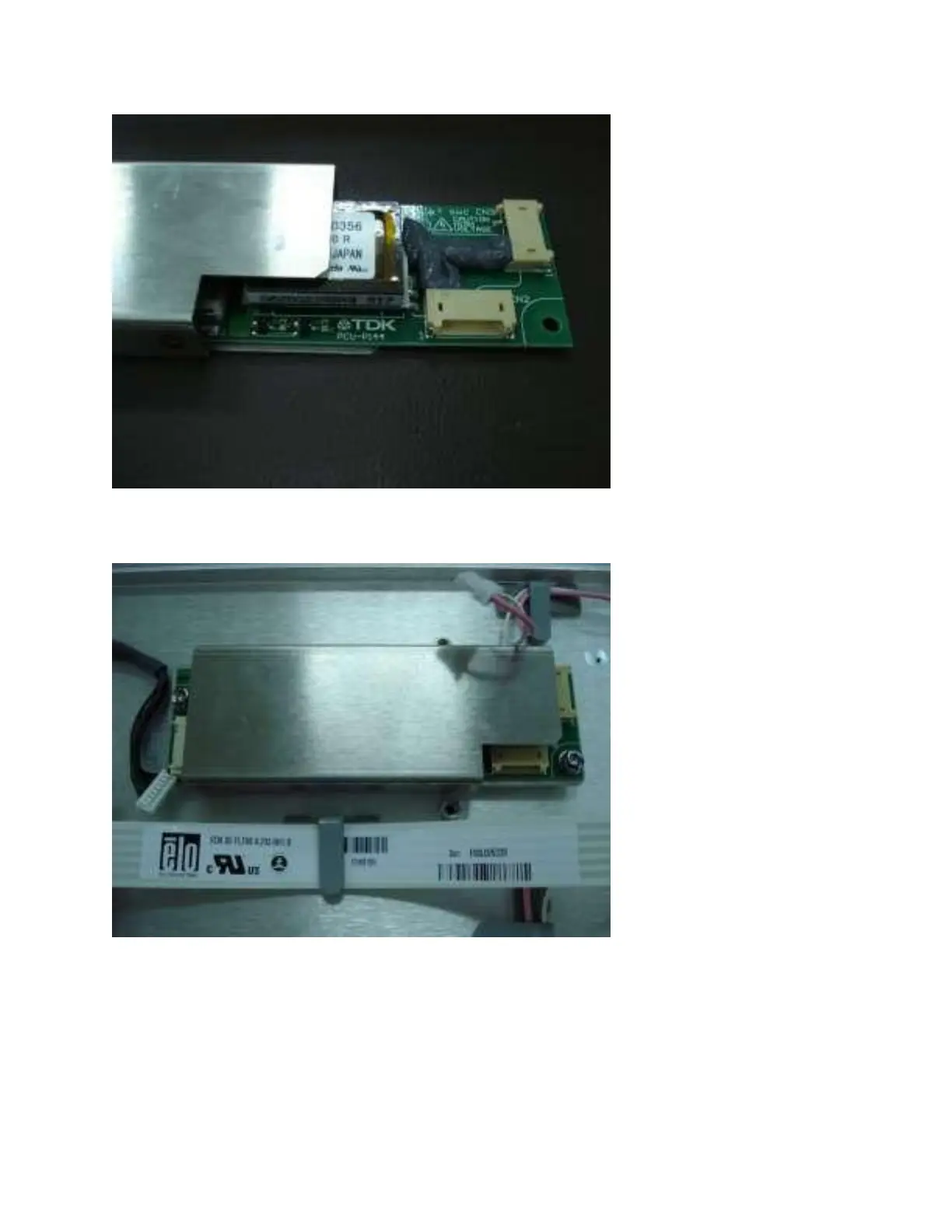

11. Slide the PCB into the new shield (N5230-00017), as shown in Figure 4.
Figure 4
12. Position the shield and PCB on the display assembly frame, as shown in Figure 5.
Use a T-10 wrench to reinstall the two screws on the PCB. Reconnect the cables on the PCB.
Figure 5
