Situation:
In case the front USB receptacle (E5070-66555) becomes loose, add USB receptacle retention plate
(E5071-04004) to strengthen the front USB receptacle.
Solution/Action:

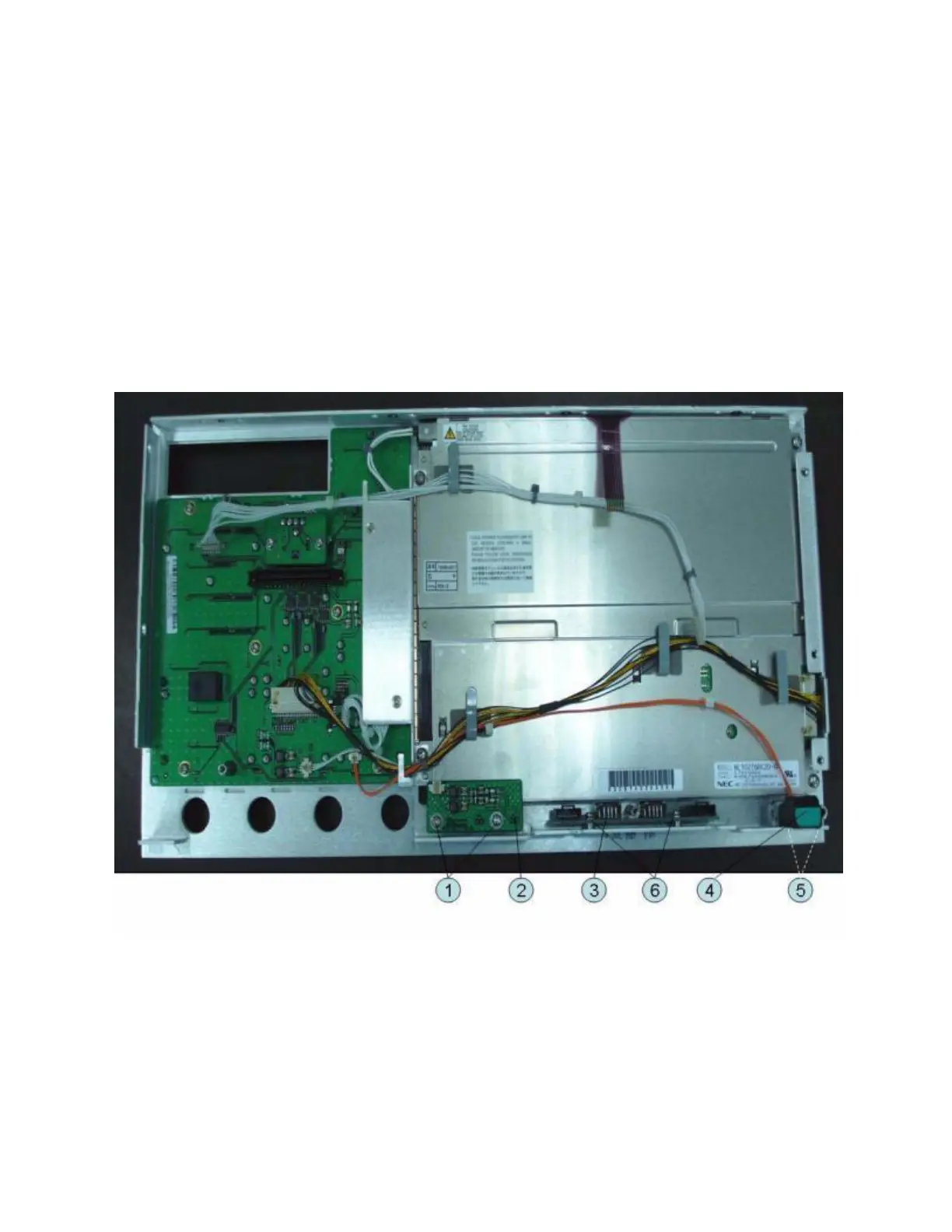

Figure 5-35 Standby Switch Assembly
1. Remove two pieces of screws. (See Reference Designator #6 of Figure 5-35)
2. Add USB receptacle retention plate.
3. Add the removed screws (See Reference Designator #6 of Figure 5-35) with 9 in-lb torque driver/T10 bit.
Note: Pay attention to the direction of the USB receptacle retention plate.
