6
INSTALLATION
1. Carefully unpack all items from the box. Place the base in the final position. There must
be a minimum of 60.9 cm / 24 inches of clearance from the side of the table top to any
combustible walls.

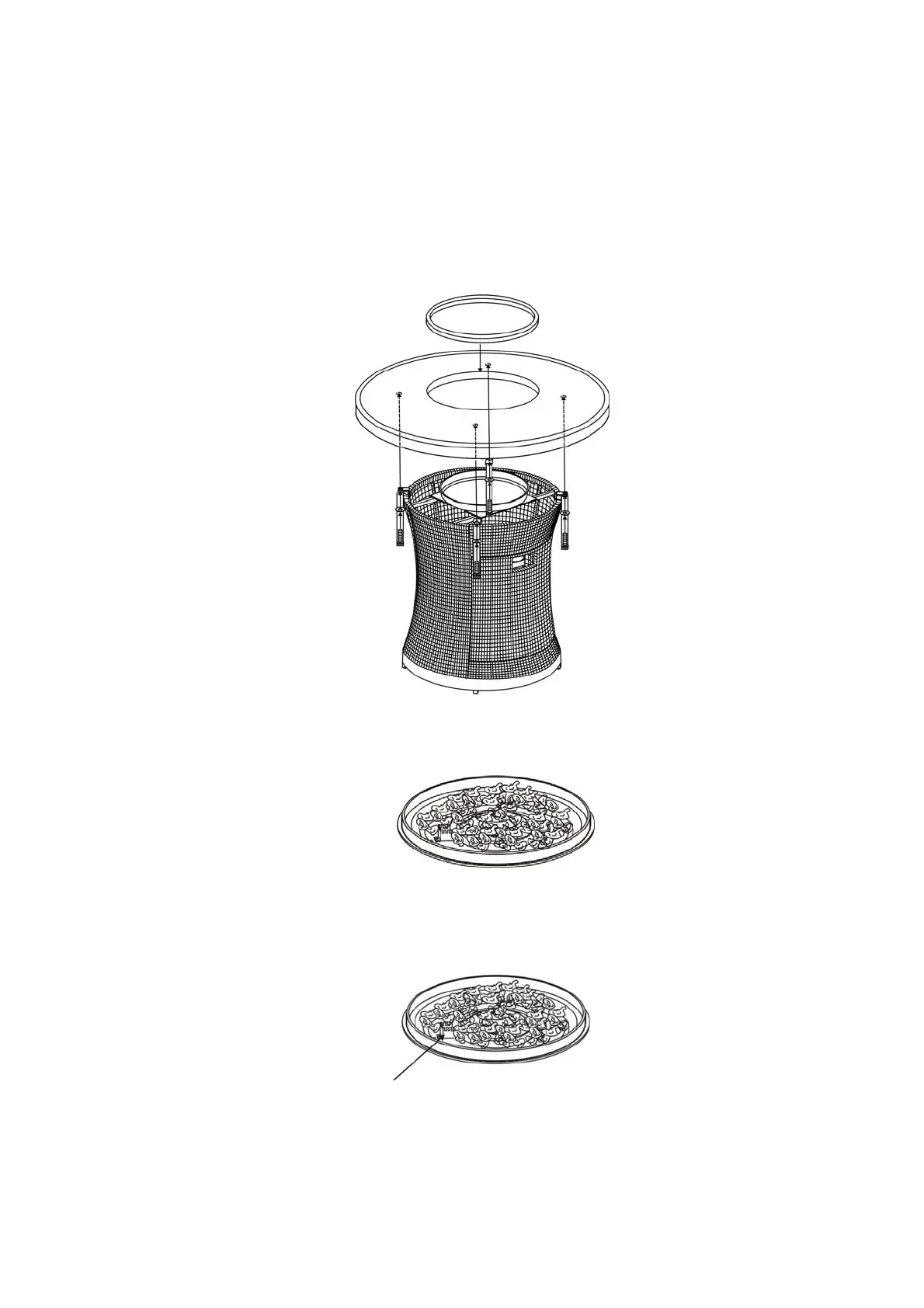

2. Place the tabletop on the base. Secure the tabletop to the firepit base using the bolts
and washers that are provided. Put the burner cover protective ring into the tabletop. See
Figure 3.
3. Pour the fire ice into the burner pan completely covering the burner. See Figure 4.
4. Remove the cardboard cover from the ignition well as shown in Figure 5. Remove any
lava rock or fire ice on top of the ignition well.
CARDBOARD COVER
5. Slide the tank drawer out and place the LP tank in the drawer. Connect the regulator as
shown in Figure 6. Turn the black handle clock-wise to tighten. Turn the handle counter
Figure 3
Figure 4
Figure 5
Jun-01-2017
