INSTALLATION
1.Identify parts packed in carton against the parts list. Remove all protective materials and
set parts on a flat, non-abrasive surface.

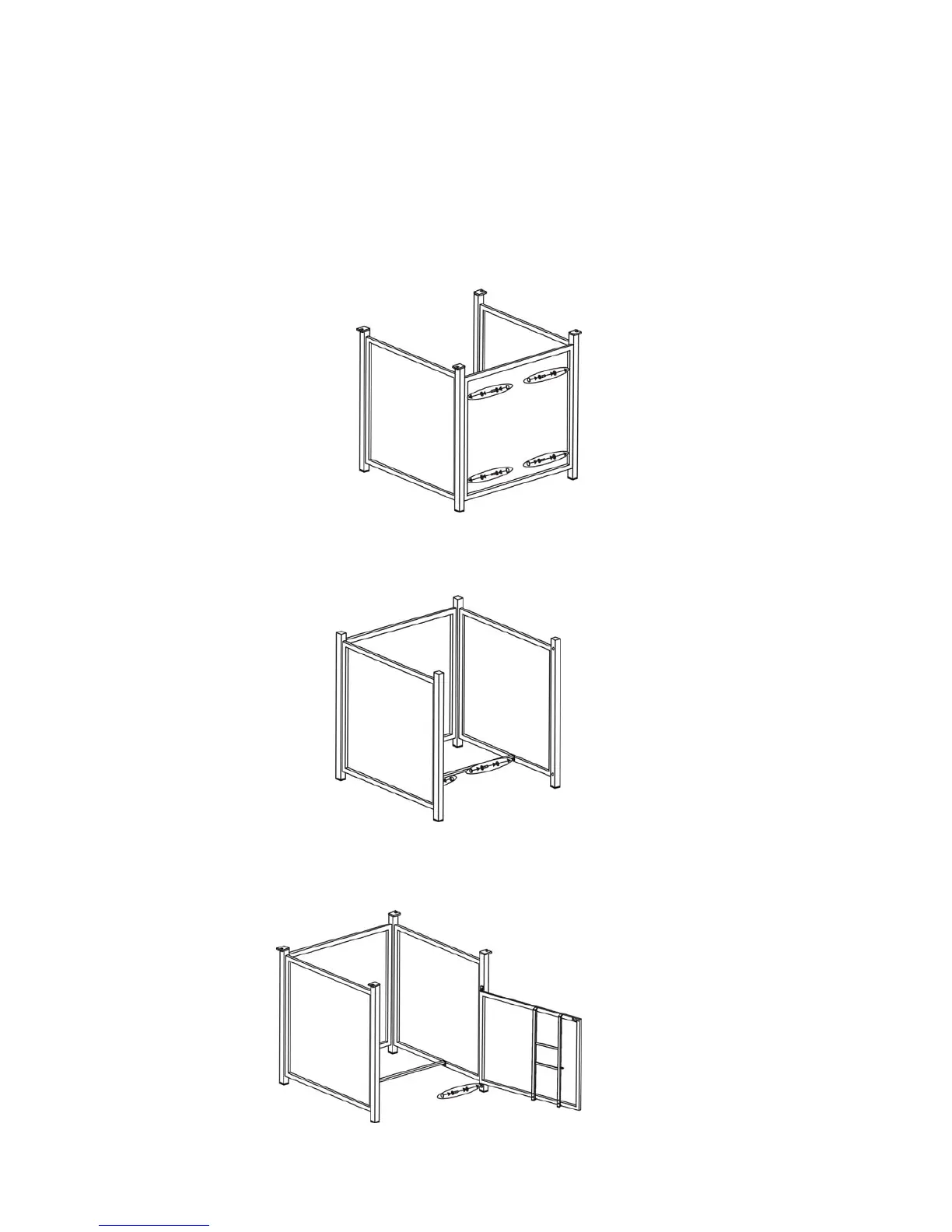

2. Attach the back panel to the side panels by using four 1/4"x40 mm bolts and washers
as shown in Figure 2.Guide the bolts through the holes in back panel, into the pre-drilled
holes in the side panels. Hand tighten only.
Figure 2
3. Attach the middle support to the side panels by using four 1/4"x15 mm bolts and
washers as shown in Figure 3.Guide the bolts through the holes in the middle support, into
the pre-drilled holes in the side panels. Hand tighten only.
Figure 3
4. Attach the "L" connector to right side panel by using a 1/4"x15 mm bolt and washer as
shown in Figure 4.Guide the bolt through the hole in the "L" connector, into the pre-drilled
hole in the right side panel. Do not over tighten.
Figure 4
