02
03

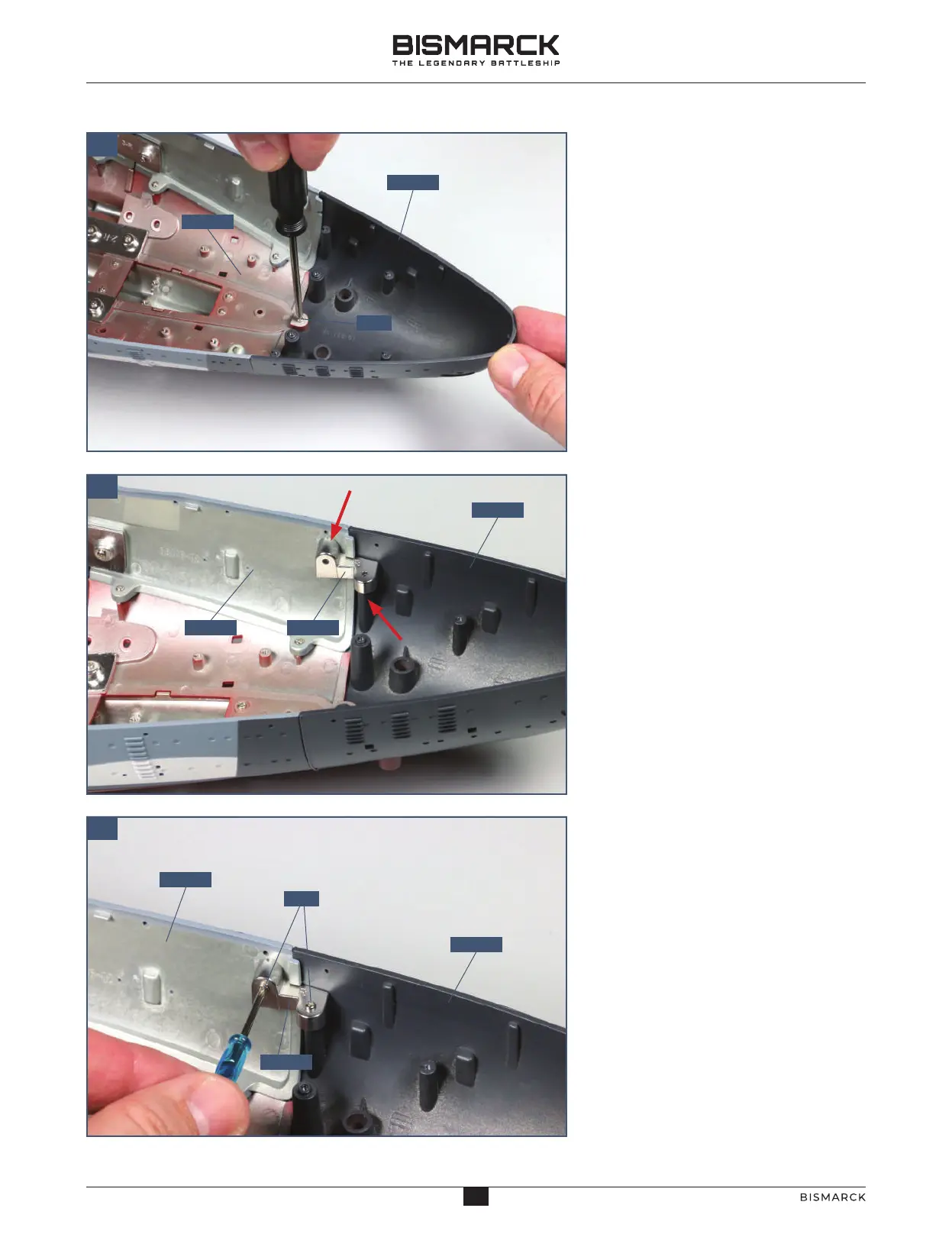

Fix the stern 118-01 to the keel
section 115-01 using a PM screw.
04
Identify the raised screw sockets
where the starboard connector 118-03
(labelled R) fits: there is a vertical screw
socket on the stern section 118-01 and a
horizontal screw socket on the hull
section 116-02 (arrows). Fit the
connector in place as shown.
Fix the starboard connector 118-03 to
the stern 118-01 and the hull section
116-02 using two PM screws.
11803
PM
11801
11801
11501
PM
11602
11803
11801
11602
