Agora Models RM 857 - Page 11

7
9
8
7

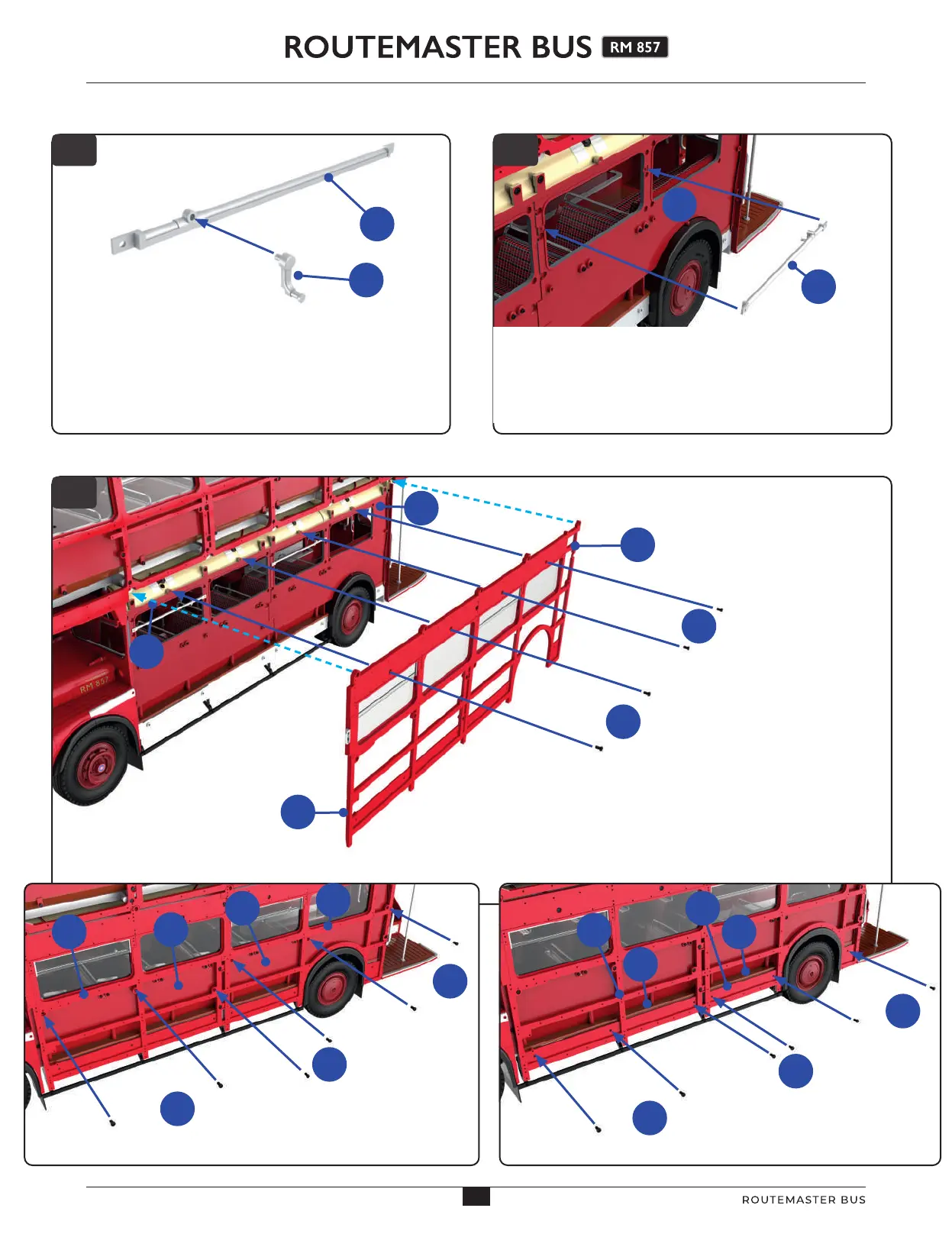

Fit the window winder 92C to the bar 92B.
This is a push fit connection.
9
Position the framework
assembly from step 6
against the side of the lower
deck, enclosing the
window bars. The tabs
along the top fit into
notches, as indicated
by the light blue dotted
lines. Fix in place along the
top to parts 48A and 49A
with four JP screws as shown.
Use six JP screws to fit the middle
part of the framework to the wall
panels 48A and 49A (inset below left)
Fix the lower edge of the framework to
chassis frames 17A and 16A with six FM
screws (Inset below).
8
Take the upper and lower deck assembly from the
previous stage. Handle with care. Fit the bar 92B to
the left window on the lower deck (on part 49A), as
shown, with the winder inside the model.
92B
49A
92A
91A
JP
x2
JP
x2
92C
48A
92B
49A
49A
92A
92A
16A
17A
91A
91A
FM
x2
FM
x2
FM
x2
48A
JP
x2
JP
x2
JP
x2
