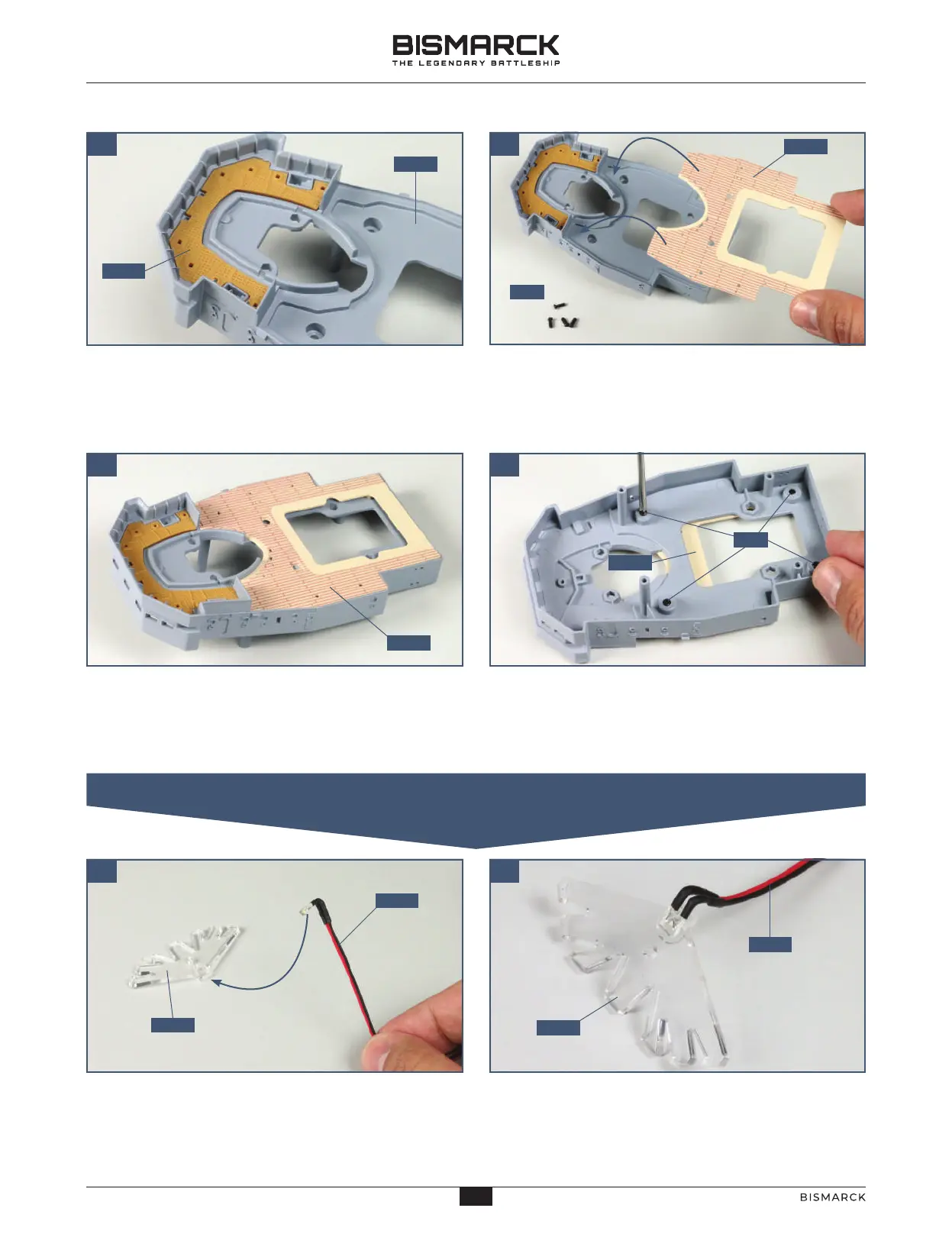

02. FITTING THE BRIDGE LIGHTING
2901
2904
2904
PB
2905
2908
2902
PB
2904
2908
2905
01 02
Take the large section of decking 29-04 and check
the fit on the main part of the lower mast deck 29-01.
You will need four 2 x 5 mm PB screws.
The decking 29-02 should lie completely flat over the
area, as shown.
The decking 29-04 should lie flat on the lower
mast deck.
Turn over the lower mast deck 29-01 and identify the
four raised screw sockets. Fix the decking in place
with four 2 x 5 mm PB screws.
Place the command bridge windows 29-05 on your
work surface, together with the LED cable 29-08.
Fit the LED on the end of the 29-08 into the recess in
the windows 29-05.
