Agora Bismarck - 03. FITTING THE LOWER MAST DECK

01 02
03 04
05 06
Fix the bridge window panel 29-05 in place with a
2 x 4 mm silver PB screw.
2905
PB
2909
2908
2906
2906
2903
2908
2905
2901
2908
2909
2907
2903
2907

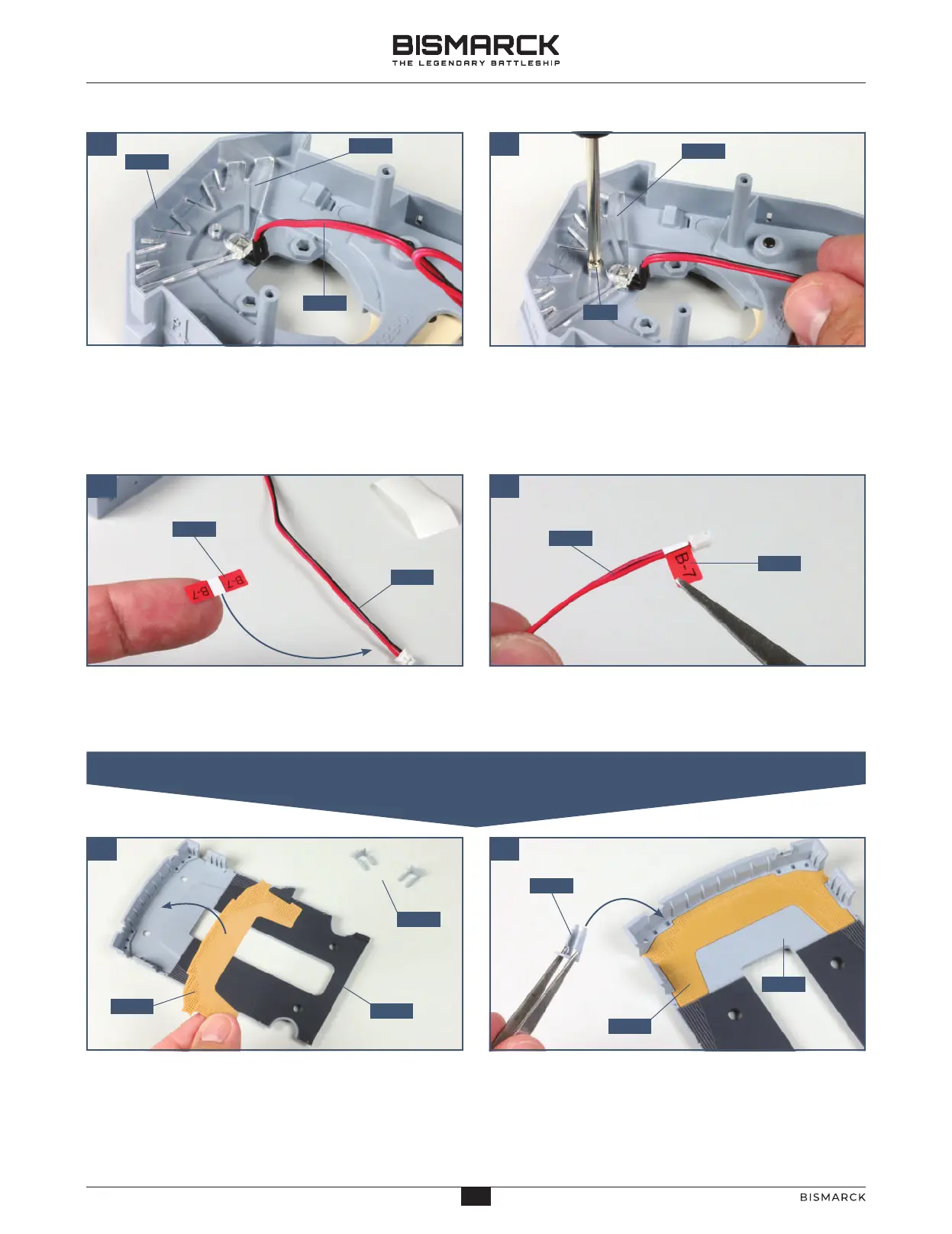

03. FITTING THE LOWER MAST DECK
Turn the bridge window panel 29-05 over, and fit the
window panel into the underside of the lower mast
deck 29-01, so that the tabs on the window panel fit
into the slots, forming the windows. The window
panel should hold the LED in place.
Take the lower mast deck base 29-06 and the third
section of decking 29-03. Fit the decking into the
forward end of the lower mast deck base 29-06. You
will also need the two guardhouses 29-07.
With the decking in place, identify the fixing points
for the two guardhouses and check the fit. Apply a
little superglue to the back of the first guardhouse
and fix in place.
Wrap the cable label around the free end of the cable
29-08, sticking the flaps together firmly.
Peel the cable label 29-09 from its backing so that
you can wrap it around the other end of the LED
cable 29-08.
31
31
AGORAMODELS BISMARCK
PB
AGORAMODELS BISMARCK
