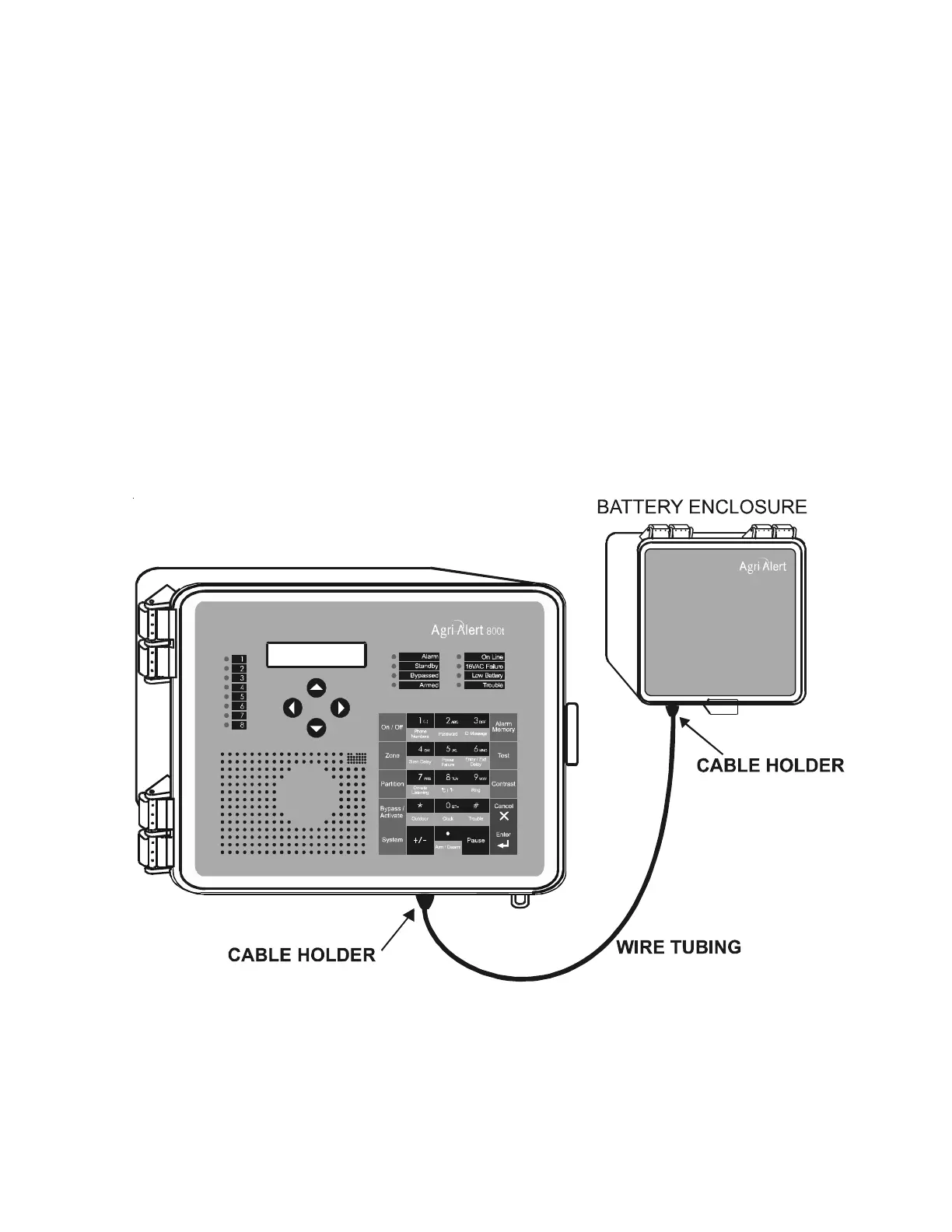

Figure 1: Mounting the Enclosures

1.2 MOUNTING THE EQUIPMENT

The Agri-Alert system should be mounted on a wall as shown in the figure below. The

Agri-Alert enclosure is opened by sliding the latch upwards and pulling. The battery

enclosure is opened by pulling on the latch. Use 3/16” diameter screws to mount

each enclosure on the wall. Fasten the black caps onto the mounting holes once the

screws are tightened. Make sure the covers of the two boxes can be opened easily.

The battery enclosure has ventilation openings on the sides. Make sure they are not

obstructed. Mount the battery enclosure 4” from the Agri-Alert enclosure. Use the

plastic tubing provided to run the wires from the battery to the alarm system. These

wires are provided with the system. The bare end hooks up to the Agri-Alert system.

Electrical knockouts are located on the bottom of each enclosure for running the tube.

Use a screwdriver and a hammer to punch out the holes. Use the cable holders pro-

vided to connect the tube to the enclosure. This prevents water from seeping into the

enclosure.
