操作说明
Operator Instruction
Socket for rear trailer
后挂车插座接线位置图
Connection position of the rear trailer is shown in Figure 4-46, among which the sockets not marked in the
figure will not be used.

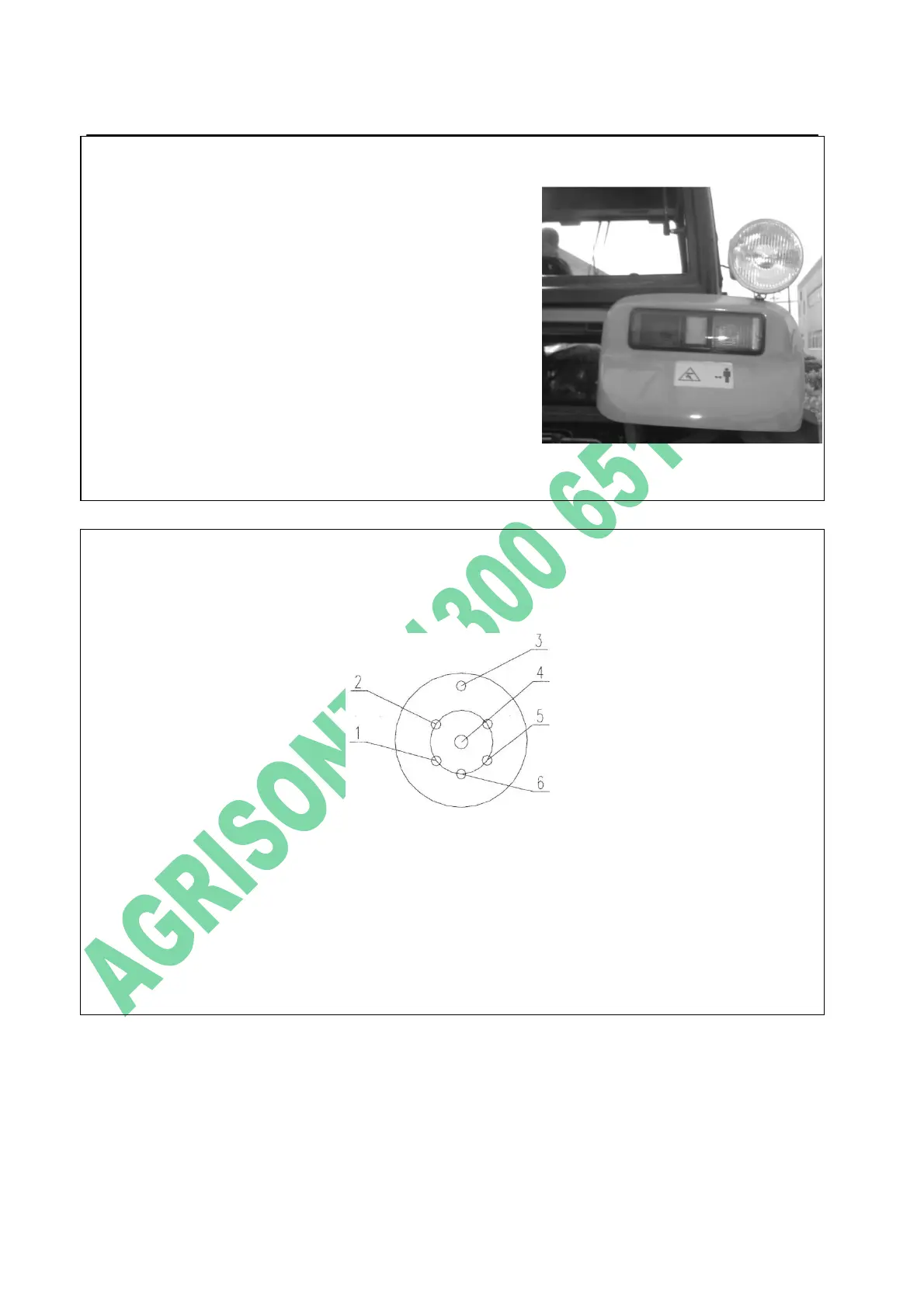

图 4-46 后挂车插座
Fig.4-46
Socket for rear trailer
1.接右转向灯电源线 2.接工作灯电源线
3.接地线 4.接位置灯电源线
5.接制动灯电源线 6 .接左转向灯电源线
1. to the power wire of the right turn light; 2. to the power wire of the working light;
3. to the earth wire; 4. to the power wire of the position lamp;
5. to the power wire of the braking lamp; 6.to the power wire of the left tum light
后照灯、后尾灯
Rear light，tail lamp
后照灯、后尾灯总成(转向、位置、刹车)位置图
Position diagram of rear light and tail lamp assembly(steering,
position，braking)
图 4-45 后照灯和后尾灯
Fig. 4-45 Rear light and tail lamp
