操作说明
Operator Instruction
表 4-5 保险盒各档的工作电流及所保护的电器
Table 2-5 Operating current of each gear of the fuse box and the electrical devices under its protection
保险盒档
别
Gear of
fuse box
一
One
二
Two
三
Three
四
Four
五
Five
六
Six
七
Seven
八
Eight
九
Nine
额定工作
电流
Rated
operating
current
10A
10A
20A
10A
10A
20A
5A
20A
15A
中央电器盒
Central electric box
中央电器盒内主要有：主电源继电器、电子闪光器、灯光继电器等电路控制元件，并有十五路保险片，
各档的工作电流及所保护的电器如图所示。电器元件断路时，首先要检验保险盒内保险片，如有保险片
损坏，立刻从电路板上取下一块备用同电流匹配的保险片换上，以保证电器元件不受损坏。
There are such circuit control elements as power supply relay,
electronic flasher, lighting relay and fifteen-way Fuse, operating
current of each gear and the electrical devices under its protection is
shown in Table 2-5. When the electrical element is broken , first
check the fuse in the fuse box, if damaged, take down a piece of
standby fuse with of the same circuit from the circuit board and
replace to protect the electrical elements from damaging.

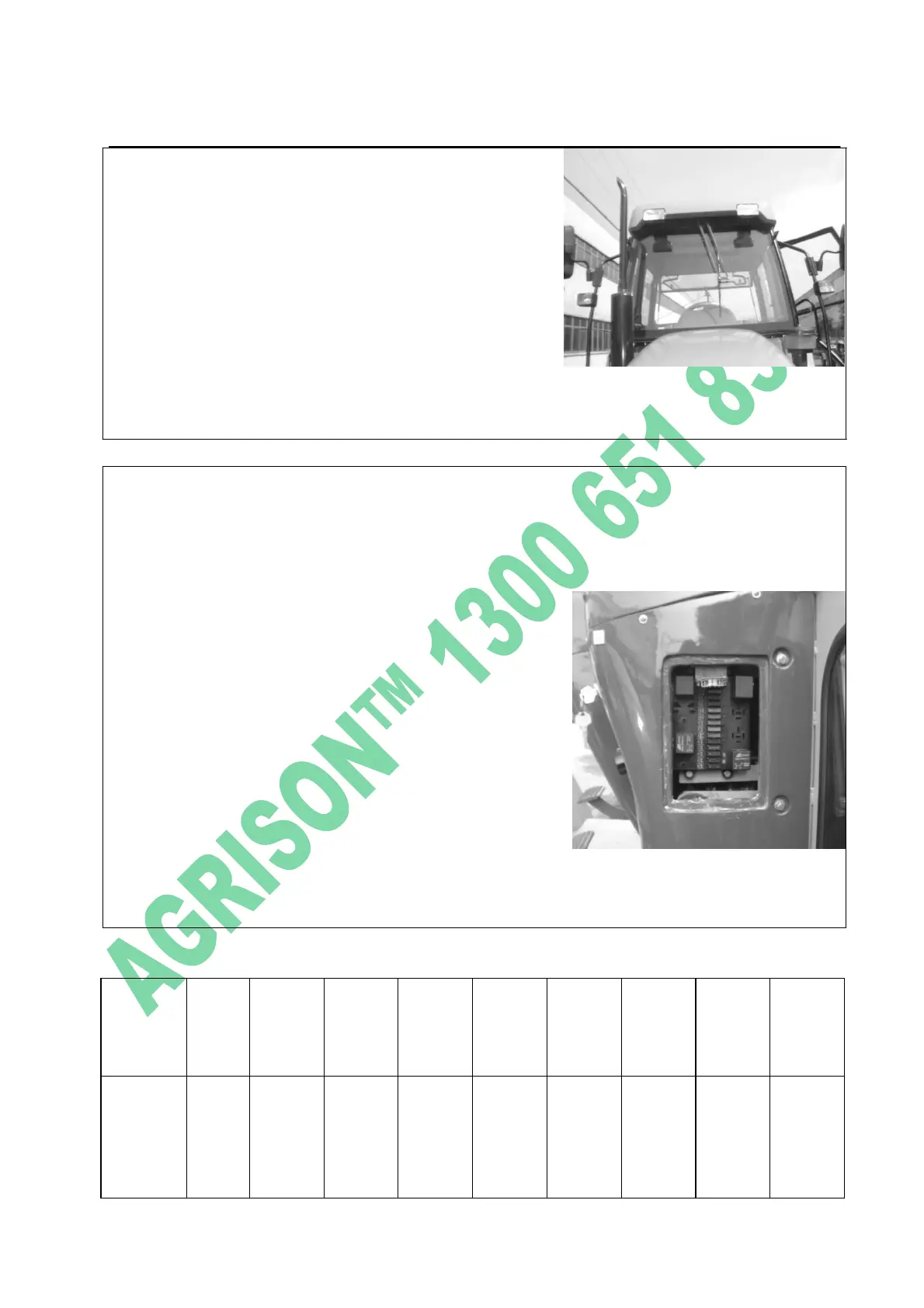

图 4-48 中央电器盒
Fig.4-48 Central electric box
顶工作灯
Roof lamp
驾驶室的顶工作灯共有 4 个，分别位于驾驶室前上部和后上部，
驾驶室前工作灯如右图所示
There are 4 roof lamps in the cab in all, lying on the front
upper/rear upper part separately. The front roof lamp in the cab is
shown in the right figure.
可根据工作时需要左右转动工作灯灯体，以满足改变光照方向
的需要。
You could turn the lampbody of the roof lamp as desired.
图 4-47 顶工作灯
Fig. 4-47Roof lamp
